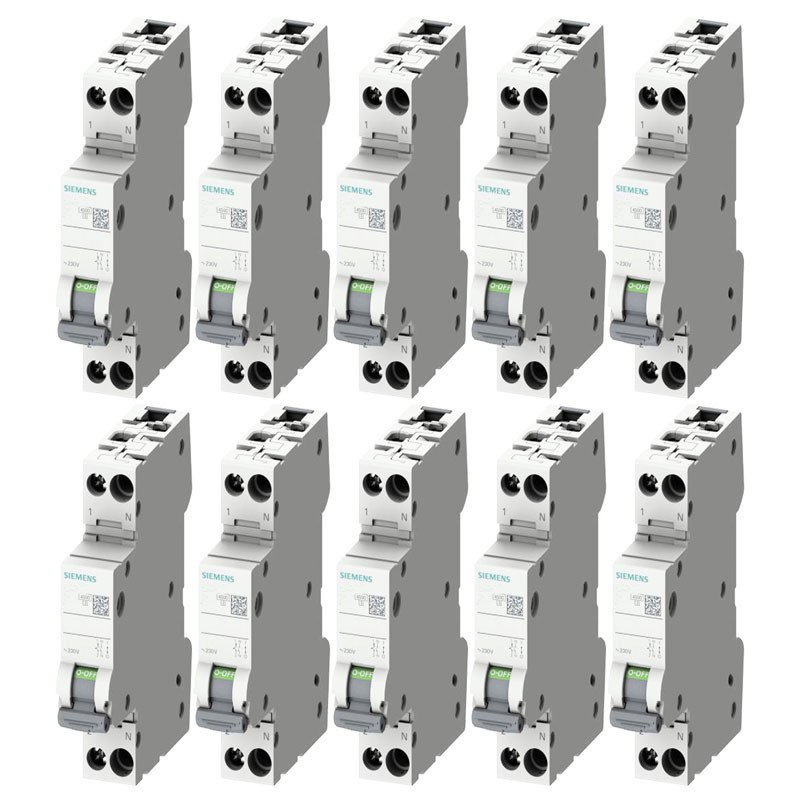

Siemens 20A 1P+N 4.5KA C-curve Circuit Breaker Kit 1 module 5SL30207
KIT 5SL30207
Kit 10 Pieces Siemens magnetothermal switches, with the following characteristics:
- 1 module
- DIN connection (universal for any switchboard on the market)
- Poles 1P+N
- 20 amperes
- Interrupting power 4.5kA
- Rated voltage 230 Vac, switching curve C.
With the kit you save compared to individually purchased items
Siemens 20A 1P+N 4.5KA C-curve Circuit Breaker Kit 1 module 5SL30207
€52.34
Tax included
€52.34
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 734
Further Siemens circuit breaker combinations:
C curve, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.
A circuit breaker is a safety device capable of automatically (i.e. without external intervention) interrupting the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Siemens Series
- Thermal magnetic circuit breaker
- Rated voltage 230 Vac
- Current In 20A
- Interrupting power Icn 4,5kA
- Intervention curve C
- 1 module
- 1P+N
- Height 90 mm
- Width 18 mm
- Depth 76 mm
- Recessed depth 70 mm
- Net weight 210 g
- Tightening torque / with screw terminals 2.5 Nm, max. 3 Nm
- Degree of protection IP20, with connected wires
Data sheet
- KIT:
- Kit Circuit breakers
- Modules:
- 1
- Poles:
- 1P+N
- Curve:
- C
- Power:
- 4.5KA
- Amps:
- 20A
- Circuit Protections:
- Circuit breakers
