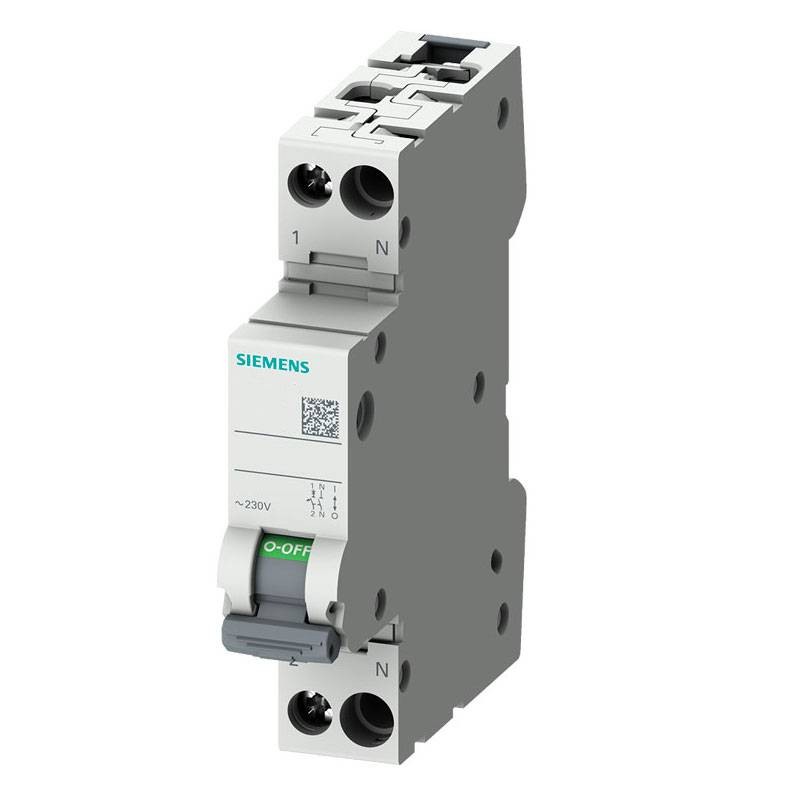

Siemens thermomagnetic circuit breaker 32A 1P+N 6KA curve C 1 module 5SL60327
SIE 5SL60327
4001869533971
Siemens thermal-magnetic circuit breaker with the following features:
- Number of poles: 1P+N
- Number of modules: 1
- 32 amperes
- Breaking capacity 6kA
- Rated voltage 230 Vac
- Tripping curve C
Siemens thermomagnetic circuit breaker 32A 1P+N 6KA curve C 1 module 5SL60327
€14.45
Tax included
€14.45
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 16
: 15
Curve C, trip threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Features:
- Siemens series
- Thermal-magnetic circuit breaker
- Rated voltage 230 Vac
- Current In 32A
- Breaking capacity Icn 6kA
- Tripping curve C
- 1 module
- Poles: 1P+N
- Height 90 mm
- Width 18 mm
- Depth 76 mm
- Recessed depth 70 mm
- Tightening torque/with screw terminals 2 Nm, max. 2.5 Nm
- Degree of protection IP20, with conductors connected
There are no reviews
Data sheet
- Voltage:
- 230VAC
- Modules:
- 1
- Poles:
- 1P+N
- Curve:
- C
- Power:
- 6KA
- Degree of protection:
- IP20
- Amps:
- 32A
- Circuit Protections:
- Circuit breakers
