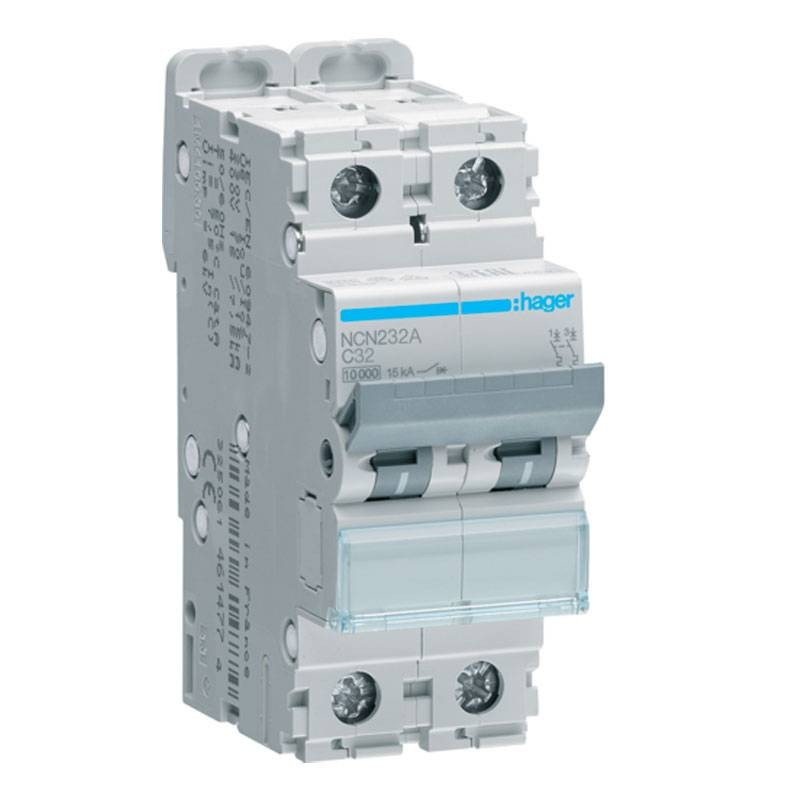

Hager 2P 32A 10KA Automatic Magnetothermal Circuit Breaker Curve C 2M NCN232A
HAG NCN232A
3250614615702
Hager Automatic Magnetothermal Circuit Breaker with the following features:
- Number of poles: 2P
- Rated current: 32 Amps
- Rated operating voltage: 400V
- Rated breaking capacity: 10 kA
- Type of supply voltage: AC
- Curve C
- Number of modules: 2
- Tightening torque: 2.8 Nm
- Enclosure degree of protection: IP20
Hager 2P 32A 10KA Automatic Magnetothermal Circuit Breaker Curve C 2M NCN232A
€52.16
Tax included
€52.16
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 2
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic systems.
Features:
- Mounting mode: DIN rail
- Rated insulation voltage: 500 V
- Rated fault holding current: 6000 V
- Minimum threshold voltage (Ue min): 12 V
- Frequency (ETIM numerical value range): 50 to 60 Hz
- Maximum power dissipated per pole according to product standard: 6 W
- Total power dissipation: 8 W
- Power dissipation per pole: 4.03 W
- Electrical life and number of cycles: 4000
- Number of maneuvers (mechanical life): 20000
- High connection type for modular products: screw clamp
- Tightening torque: 2.8 Nm
- Low connection type for modular products: plastic
- Low connection type for modular products: quickconnect clamp
- Top removal for modular fixtures
- Bottom removal for modular products
- Suitable for flush mounting
- Accessory
- With transparent label holder
- Operating temperature: -25 - +70 °C
- Storage/transport temperature: -25 - +80 °C
- Calibration temperature: 50 °C
- Altitude: 2000m
- Product depth: 70 mm
- Product height: 83 mm
- Product width: 35 mm
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 2
- Poles:
- 2P
- Curve:
- C
- Power:
- 10KA
- Degree of protection:
- IP20
- Amps:
- 32A
- Circuit Protections:
- Circuit breakers
