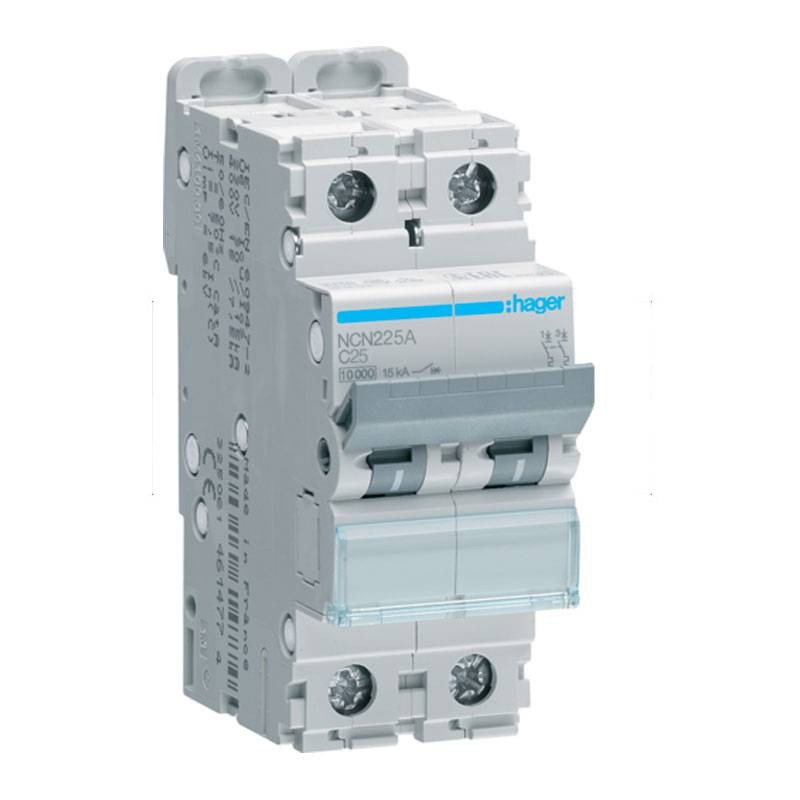

Hager Circuit Breaker 2P 25A 10KA 2 Modules Curve C NCN225A
HAG NCN225A
3250614615696
Hager thermal-magnetic circuit breaker with the following characteristics:
- Number of poles: 2P
- Rated current: 25 amps
- Rated breaking capacity: 10 kA
- Number of modules: 2
- Curve C
- Type of supply voltage: AC
- Enclosure degree of protection: IP20
Hager Circuit Breaker 2P 25A 10KA 2 Modules Curve C NCN225A
€52.16
Tax included
€52.16
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
: 3
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
The C curve, trip threshold of 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic systems, residential and functional buildings.
Features:
- Suitable for DIN rail mounting
- Rated insulation voltage: 500 V
- Rated fault holding current: 6000 V
- Minimum threshold voltage (Ue min): 12 V
- Maximum power dissipated per pole according to product standard: 4.5 W
- Total power dissipation: 7.2 W
- Power dissipated per pole: 3.63 W
- High connection type for modular products: screw terminal
- Tightening torque: 2.8Nm
- Low connection type for modular products: plastic
- Low connection type for modular products: quickconnect clamp
- Top removal for modular fixtures
- Bottom removal for modular products
- Suitable for flush mounting
- Accessory
- With transparent label holder
- Operating temperature: -25 - +70 °C
- Storage/transport temperature: -25 - +80 °C
- Altitude: 2000m
- Product depth: 70 mm
- Product height: 83 mm
- Product width: 35 mm
There are no reviews
Data sheet
- Voltage:
- 230/240VAC
- Modules:
- 2
- Poles:
- 2P
- Curve:
- C
- Power:
- 10KA
- Degree of protection:
- IP20
- Amps:
- 25A
- Circuit Protections:
- Circuit breakers
