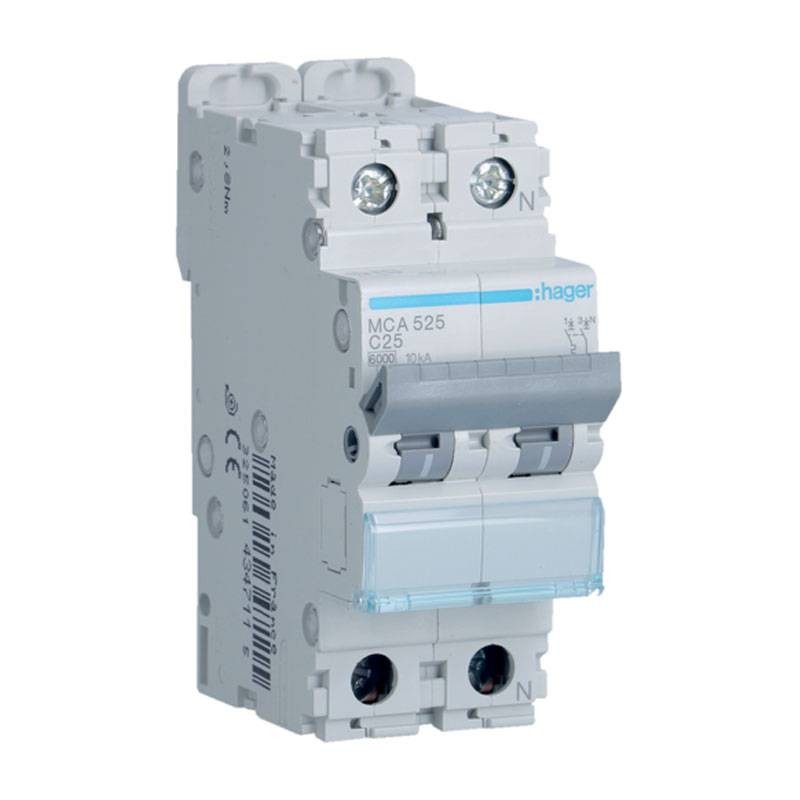

Hager thermal-magnetic circuit breaker 1P+N 25A 6KA curve C 2 Modules MCA525
HAG MCA525
3250614347115
Hager thermal-magnetic circuit breaker with the following features:
- Number of poles: 1P+N
- Rated current: 25 Amps
- Rated operating voltage: 230V
- Rated breaking capacity: 6kA
- Number of modules: 2
- Curve C
- Type of supply voltage: AC
- Tightening torque: 2.8 Nm
- Degree of protection: IP20
Hager thermal-magnetic circuit breaker 1P+N 25A 6KA curve C 2 Modules MCA525
€34.47
Tax included
€34.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
: 28
Pay in installments with Klarna
Curve C, trip threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic systems, residential and functional buildings.
Features:
- Mounting mode: DIN rail type O (symmetrical)
- Rated insulation voltage: 500 V
- Rated fault holding current: 6000 V
- Minimum threshold voltage (Ue min): 12 V
- Frequency (ETIM numerical value range): 50 to 60 Hz
- Maximum power dissipated per pole according to product standard: 4.5 W
- Total power dissipation: 7.2 W
- Power dissipated per pole: 3.63 W
- Low connection type for modular products: Plastic
- Low connection type for modular products: quickconnect clamp
- Top removal for modular luminaires
- Bottom removal for modular products
- Suitable for flush mounting
- Operating temperature: -25 to +70 °C
- Storage/transport temperature: -25 - +80 °C
- Altitude: 2000m
- Calibration temperature: 30 °C
- Product depth: 70 mm
- Product height: 83 mm
- Product width: 17.5 mm
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 1P+N
- Curve: C
- Power: 6KA
- Degree of protection: IP20
- Amps: 25A
- Circuit Protections: Circuit breakers
