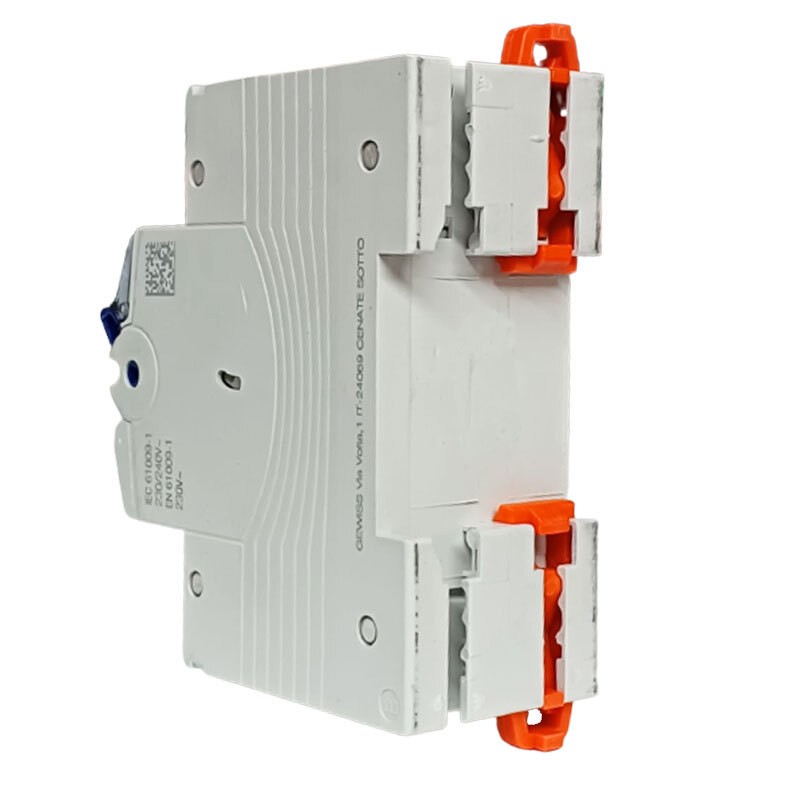

Gewiss Magnetothermal Circuit Breaker 25A 4P 6KA C 2 Modules GW90289
GEW GW90289
8011564056961
Gewiss Magnetothermal Circuit Breaker 25A 4P 6KA C 2 Modules with the following characteristics:
- Symbol: MTC 60
- Number of poles: 4P
- Number of modules: 2
- Rated current: 25A
- Curve C
- Rated voltage: 230-400V
- Interrupting power: 6000A
Gewiss Magnetothermal Circuit Breaker 25A 4P 6KA C 2 Modules GW90289
€84.44
Tax included
€84.44
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 34
: 1
Pay in installments with Klarna
Curve C can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
The MCB Series 90 meets any requirement for overload and short-circuit protection, for all civil, tertiary and industrial applications. The range consists of MTC, compact circuit breakers (2 to 32A, curves B and C up to 10kA) MT traditional circuit breakers (1 to 63A, curves B, C and D up to 25kA) MTHP high performance circuit breakers (20 to 125A, curves C and D up to 25kA).
Features:
- Rated frequency: 50/60 Hz
- Interrupting capacity (Icn): 6000A
- Interrupting capacity (Ics): 1 x Icn
- Interrupting capacity (Icu)230V: 7.5 kA
- Interrupting capacity (Icu) 400V: 6 kA
- Interrupting capacity (Ics): 100% Icu
- Isolation voltage: 500V
- Rated impulse withstand voltage: 4 kV
- Minimum operating voltage: 12 V ac/dc
- Maximum operating voltage: 440 V ac / 220 V dc
- Number of electrical maneuvers: 10,000
- Number of mechanical maneuvers: 20,000
- Rigid cable cross section: <=1x16 - <=1x10+1x6 mm²
- Flexible cable cross section: <=1x10 - <=2x6 mm²
- Nominal tightening torque: 1.2 Nm
- Operating temperature: -25 /+60 degrees
- Storage temperature: -40 /+70 degrees
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 2
- Poles: 4P
- Curve: C
- Power: 6KA
- Amps: 25A
- Circuit Protections: Circuit breakers
