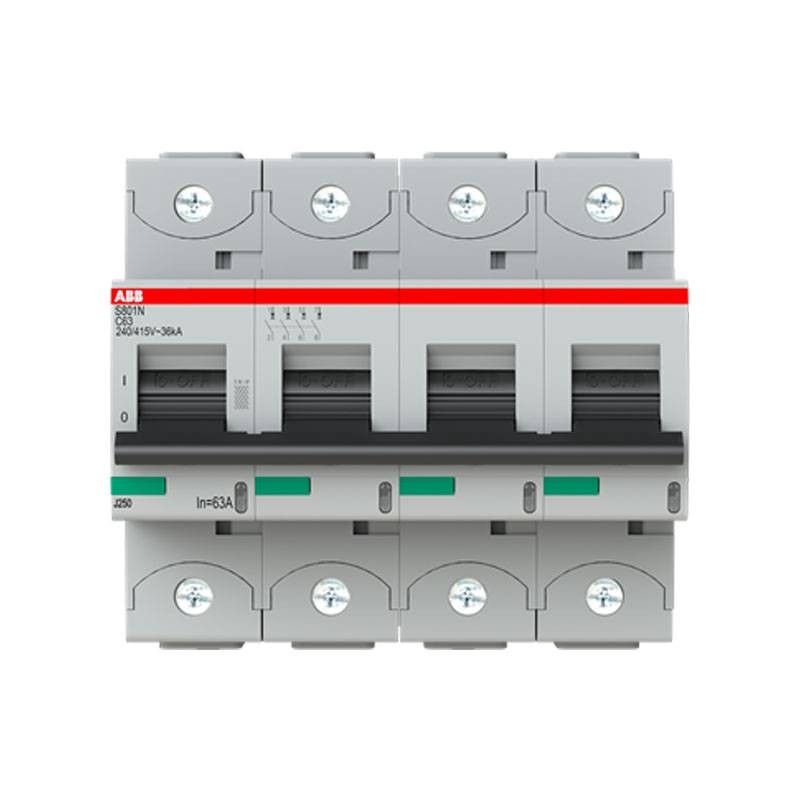

Abb Circuit breaker 4P 63A 36KA 6 Modules S120472

Abb TEST
Abb TEST
ABB S120472 7612271204723

Abb circuit breaker with the following characteristics:



  • Number of poles: 4
  • Number of modules: 6
  • Rated current: 63A
  • Input voltage type: AC/DC
  • Breaking capacity Icn 36kA
  • Curve: C
  • Degree of protection: IP20

Request info about this product

Abb Circuit breaker 4P 63A 36KA 6 Modules S120472

€246.40 Tax included
€246.40

Abb Circuit breaker 4P 63A 36KA 6 Modules S120472

€246.40
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 1
Altre disponibilità dal produttore
qty

Abb Circuit breaker 4P 63A 36KA 6 Modules S120472

€246.40

Calculate shipping cost
Buy it within and receive it from Tuesday, 11 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.



The C curve, trip threshold of 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic systems.



AC-type differ ential circuitbreaker tripping is assured for suddenly or slowly increasing applied sine-sine differential alternating currents (IEC EN 61008-1).



System pro M compact S800 high-performance circuitbreakers protect installations from overloads and short circuits, ensuring reliability and safe operation. They are available in different characteristics (B, C, D, K, and magnetic only), configurations (1P, 2P, 3P, 4P), breaking capacity (up to 50 kA at 230/400 VAC ) and current ratings (up to 125 A). All thermal-magnetic circuit breakers in the S800 range comply with CEI-EN 60898-1, CEI- EN 60947-2 standards, allowing use in commercial and industrial applications. Can be associated with DDA 800 series residual current circuit breakers.



Features:

  • Residual current type: Standard
  • Operating voltage: Maximum 230 - 400V AC
  • Impulse withstand voltage: 8 kV
  • Frequency: 50 - 60 Hz
  • Power loss: 25.6 W
  • Electrical resistance: 6000 cycle(s)
  • Mechanical resistance (Nendu): 4000 cycle (i)
  • Tightening torque: 3.5 N-m - 31 in-lb
  • Mounting Position: Any
  • Environmental temperature: -25 /+60 degrees
  • Dimensions: height 95 mm width 106 mm depth 82.5 mm
  • Weight: 980 grams

There are no reviews

Data sheet

Voltage:
230/400VAC
Modules:
6
Poles:
4P
Curve:
C
Power:
36KA
RCD Type:
AC
Degree of protection:
IP20
Amps:
63A
Circuit Protections:
Circuit breakers
