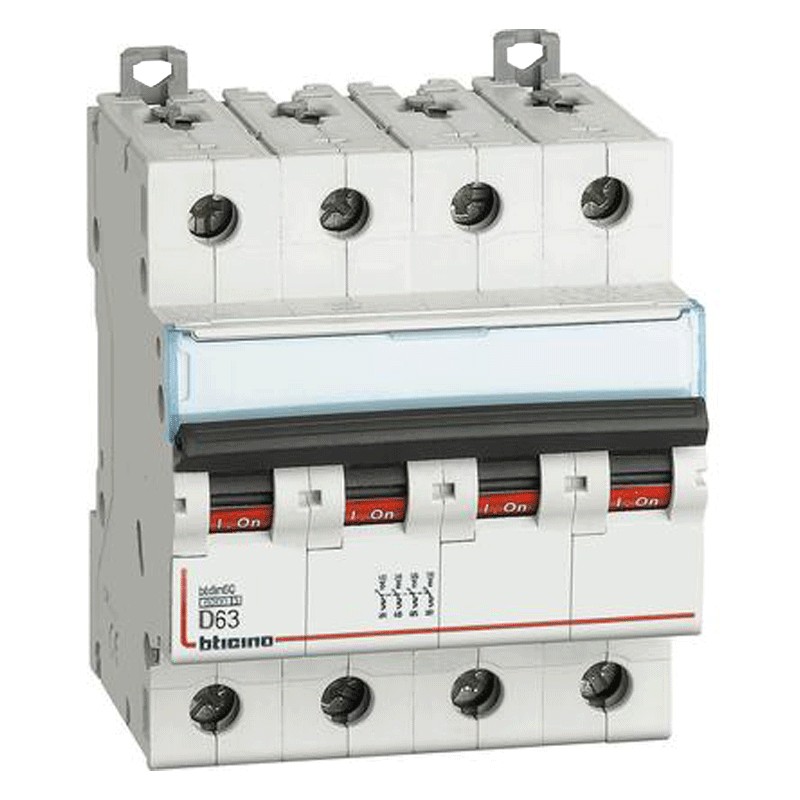

Bticino Thermomagnetic Circuit Breaker 63A 4 Poles 6KA Curve D 4 Modules FN84D63
BTI FN84D63
8005543477052
Bticino thermal-magnetic circuit breaker:
- Current In 63A
- 4 Poles
- Breaking capacity Icn 6KA
- Tripping curve D
- 4 Modules
Bticino Thermomagnetic Circuit Breaker 63A 4 Poles 6KA Curve D 4 Modules FN84D63
€162.55
Tax included
€162.55
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Curve D, trip threshold of 10 to 20 times In, for application of circuits with high inrush currents (motors, transformers, etc.).
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Characteristics:
- Reference Standard IEC EN 60898-1
- Voltage 400 Vac
- Degree of protection IP20
- Height 83mm
- Width 71.2mm
- Depth 76mm
- Maximum cable cross section 25/35mmq
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- Curve:
- D
- Power:
- 6KA
- Amps:
- 63A
- Circuit Protections:
- Circuit breakers
