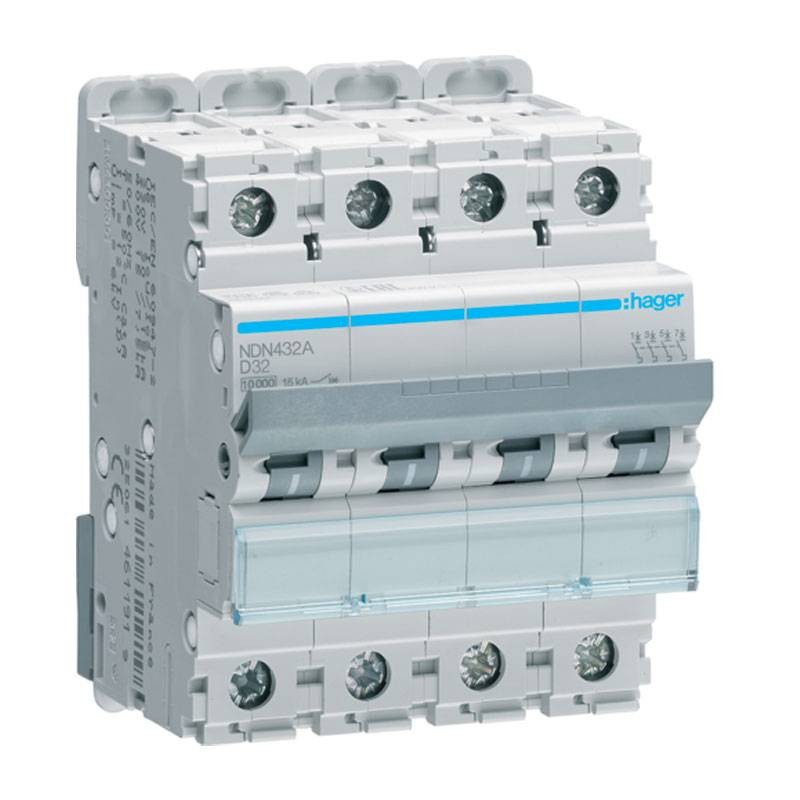

Hager 4P 32A 10KA Automatic Magnetothermal Circuit Breaker Curve D 4M NDN432A
HAG NDN432A
3250614619427
Hager Automatic Magnetothermal Circuit Breaker with the following features:
- Number of poles: 4P
- Rated current: 32 Amps
- Rated operating voltage: 400V
- Rated breaking capacity: 10 kA
- Type of supply voltage: AC
- Curve D
- Number of modules: 4
- Tightening torque: 2.8 Nm
- Enclosure degree of protection: IP20
Hager 4P 32A 10KA Automatic Magnetothermal Circuit Breaker Curve D 4M NDN432A
€116.50
Tax included
€116.50
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
: 1
Pay in installments with Klarna
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
The D curve, trip threshold of 10 to 20 times In, for application of circuits with high inrush currents (motors, transformers, etc.).
Features:
- Mounting mode: DIN rail
- Rated insulation voltage: 500 V
- Rated fault holding current: 6000 V
- Minimum threshold voltage (Ue min): 12 V
- Frequency (ETIM numerical value range): 50 to 60 Hz
- Maximum power dissipated per pole according to product standard: 6 W
- Total power dissipation: 16.5 W
- Power dissipation per pole: 4.42 W
- Electrical life and number of cycles: 4000
- Number of maneuvers (mechanical life): 20000
- High connection type for modular products: screw clamp
- Tightening torque: 2.8 Nm
- Low connection type for modular products: plastic
- Low connection type for modular products: quickconnect clamp
- Top removal for modular fixtures
- Bottom removal for modular products
- Suitable for flush mounting
- Accessory
- With transparent label holder
- Operating temperature: -25 - +70 °C
- Storage/transport temperature: -25 - +80 °C
- Calibration temperature: 50 °C
- Altitude: 2000m
- Product depth: 70 mm
- Product height: 83 mm
- Product width: 70 mm
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Curve: D
- Power: 10KA
- Degree of protection: IP20
- Amps: 32A
- Circuit Protections: Circuit breakers
