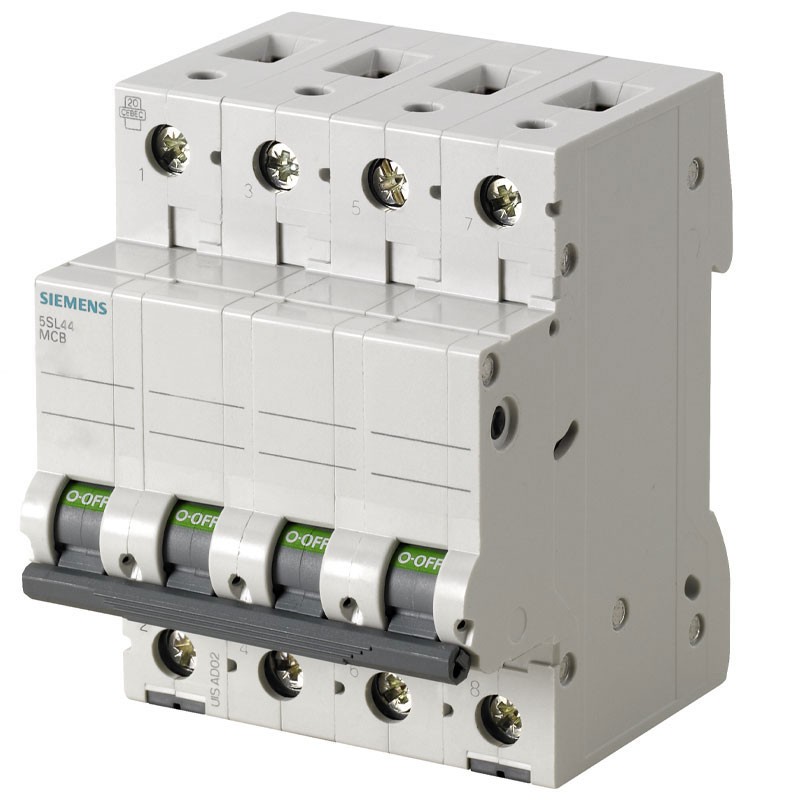

Siemens Magnetothermal Circuit Breaker 40A 4P 10KA Class D 4 Poles 4 Modules 5SL44408
SIE 5SL44408
4001869441832
Siemens SENTRON Magnetothermal Circuit Breaker:
- 40A operating current
- 4 Poles
- Current breaking capacity 10KA
- Trip characteristic class D
- 4 Modules
- AC voltage type
- Supply voltage 400V
Siemens Magnetothermal Circuit Breaker 40A 4P 10KA Class D 4 Poles 4 Modules 5SL44408
€97.63
Tax included
€97.63
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 31
: 5
Pay in installments with Klarna
Further Siemens circuit breaker combinations:
Features:
- Product name Thermal-magnetic circuit breaker
- Product execution Thermal-magnetic circuit breakers 5SL
- Mechanical service life (switching cycles) / typ. 10.000
- Overvoltage category III
- Pollution degree 2
- Insulation voltage for multiphase operation / with AC / rated 440V
- IP20 degree of protection, with connected conductors
- current breaking capacity according to EN 60898 / rated value 10 kA - according to IEC 60947-2 / rated value 10 kA
- energy limitation class 3
- Dimensions height 90 mm - width 72 mm - depth 76 mm - recessed depth 70 mm
- Net weight 595 grams
- Influence of ambient temperature +55 °C, max. 95% relative humidity
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Power: 10KA
- Amps: 40A
- Circuit Protections: Circuit breakers
