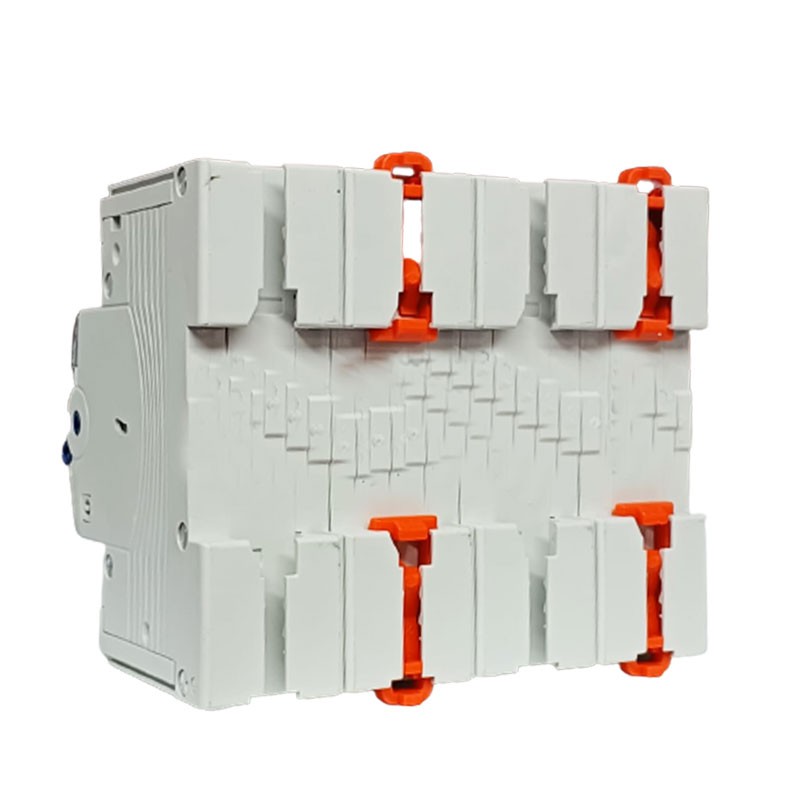

Gewiss Magnetothermal Circuit Breaker 125A 4P 10KA C 6 Modules GW93349

Gewiss
Gewiss
GEW GW93349 8011564196353

Gewiss Magnetothermal Circuit Breaker 125A 4P 10KA C 6 Modules with the following characteristics:

  • Designation: MTHP 160
  • Number of poles: 4P
  • Number of modules: 6
  • Rated current: 125A
  • Curve C
  • Rated voltage: 230-400V
  • Interrupting capacity 230V (Icn): 10000A
  • Interrupting capacity 400V (Icn): 10000A

Request info about this product

Gewiss Magnetothermal Circuit Breaker 125A 4P 10KA C 6 Modules GW93349

€468.06 Tax included
€468.06

Gewiss Magnetothermal Circuit Breaker 125A 4P 10KA C 6 Modules GW93349

€468.06
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 23
Altre disponibilità dal produttore
qty

Gewiss Magnetothermal Circuit Breaker 125A 4P 10KA C 6 Modules GW93349

€468.06

Calculate shipping cost
Buy it within and receive it from Tuesday, 11 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Curve C can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.

A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.

The MCB Series 90 meets any requirement for overload and short-circuit protection, for all civil, tertiary and industrial applications. The range consists of MTC, compact circuit breakers (2 to 32A, curves B and C up to 10kA) MT traditional circuit breakers (1 to 63A, curves B, C and D up to 25kA) MTHP high performance circuit breakers (20 to 125A, curves C and D up to 25kA).

Features:

  • Rated frequency: 50/60 Hz
  • Interrupting capacity (Ics): 0.75 x Icn
  • Interrupting capacity 230V (Icu): 20 kA
  • Interrupting capacity 400V (Icu): 16 kA
  • Interrupting capacity (Ics): 50% Icu
  • Insulation voltage: 500V
  • Rated impulse withstand voltage: 6 kV
  • Minimum operating voltage: 12 V ac/dc
  • Maximum operating voltage: 440 V ac / 220 V dc
  • Number of electrical maneuvers: 10,000
  • Number of mechanical maneuvers: 20,000
  • Rigid cable section: <=1x70 - <=2x25 - <=2x25+1x10 mm²
  • Flexible cable section: <=1x50 - <=2x25 - 3x16 mm²
  • Nominal tightening torque: 3.5 Nm / 3 Nm (lug)
  • Operating temperature: -25/+60 degrees
  • Storage temperature: -40/+70 degrees

There are no reviews

Data sheet

Voltage:
230/400VAC
Modules:
6
Poles:
4P
Curve:
C
Power:
10KA
Amps:
125A
Circuit Protections:
Circuit breakers
