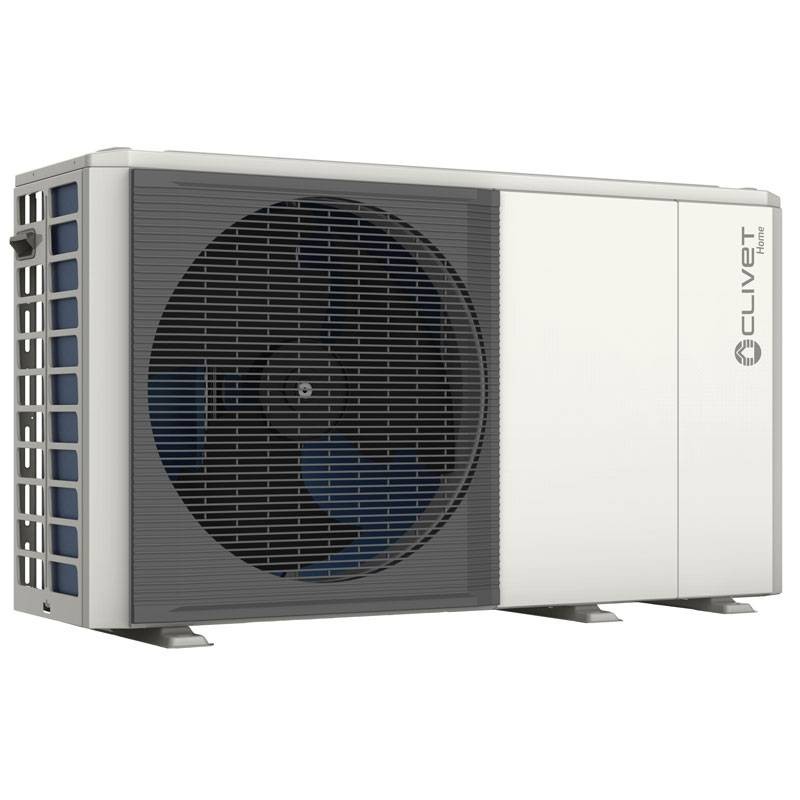

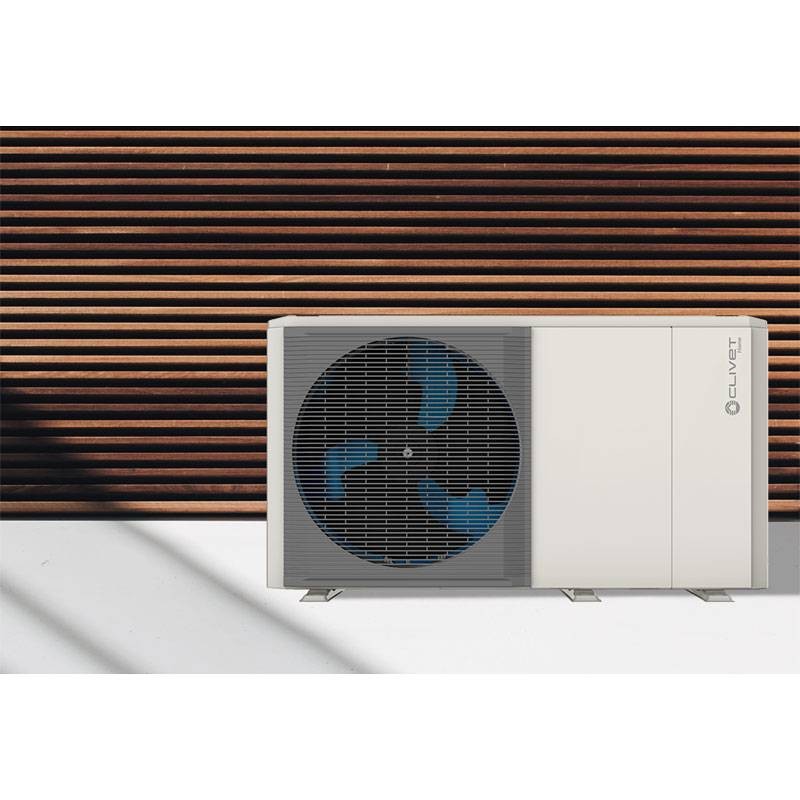

Clivet Edge EVO Monoblock Heat Pump WISAN-YME 1S 10kW WISAN-YME1S5.1
CLV WISAN-YME1S5.1
Clivet Monoblock Heat Pump Edge EVO WISAN-YME 1S series, air-water for heating, cooling and domestic hot water production:
- Supply voltage 230/1/50
- Heating Capacity Water 35/30°C - Outdoor air 7°C nominal 10.00 kW
- Cooling Capacity Water 18/23°C - Outdoor Air 35°C Nominal 9.90 kW
- Energy Class Heating 55°C A++
- Energy Class Heating 35°C A++
The air conditioner will be delivered pre-charged with gas R32
Clivet Edge EVO Monoblock Heat Pump WISAN-YME 1S 10kW WISAN-YME1S5.1
€3,490.83
Tax included
€3,490.83
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Frequently bought together
Performing even in winter: Edge EVO 2.0 - EXC is suitable for every climate and weather condition. It is designed to be efficient and provide high-temperature water even in harsh winters down to -25°C: in particular, it can produce water at 60°C down to -15°C outside air. For even harsher applications, an integrative electric heater can be selected to ensure no loss of yield even under the most extreme conditions.
Advantages:
- Space-saving: installed outdoors, requires no indoor unit
- Designed for harsh climates: excellent performance at low temperatures and optional auxiliary heating elements from 3 to 9kW
- Allows high temperature distribution: water up to 65°C
- Modular: combines up to 6 units in cascade for powers up to 180kW
- Advanced connectivity: management via dedicated MSmartLife App or via Modbus port with ELFOControl3 EVO included as standard
Energy Savings:
- Solar DHW integration (DHW tank - optional)
- Cascade
- Smart Grid ready
Comfort:
- Hot Cold
- ACS
- Silent
- High temperature
Reliability:
- Support heater (optional)
- Eurovent
- Keymark
Health:
- Environmentally friendly refrigerant R32
- Renewable energy
Practicality:
- Weekly scheduling
- Boiler integration
Management and Connectivity:
- Dry contact
- User interface/thermostat
- Modbu port
- Optional Wi-fi control not integrated
Features:
Heating:
- Water 35/30°C capacity - Outside air 7°C Nominal 10.00 kW
- COP 4.95
- Water Capacity 35/30°C - Outside Air -7°C Nominal 8kW
- COP 3.05
- Water capacity 45/40°C - Outside air 7°C Nominal 10.00 kW
- COP 3.75.
Cooling:
- Water capacity 18/23°C - Outside air 35°C Nominal 9.90 kW
- EER 4.55
- Water capacity 7/12°C - Outside air 35°C Nominal 8.20 kW
- EER 3.25
- Electrical power for meter sizing 6.50 kW
- Seasonal Eff. Average Climate
Heating 55°C:
- Energy class A++
- Annual energy input 4,541 kWh/year
- SCOP 3.49
- (seasonal efficiency) 137%
Heating 35°C:
- Energy class A+++
- Annual energy input 3,649 kWh/year
- SCOP 5.19
- (seasonal efficiency) 205%
Outdoor unit:
- Power Supply Voltage/Frequency/Phases 230/50/1 V/Hz/n°.
- Water flow rate Water 35/30°C - Outdoor air 7°C 0.39 l/s Nominal
- Useful pump head Water 35/30°C - Outdoor air 7°C 67.9 kPa Nominal
- Minimum system water content 20 liters
- Expansion tank capacity 8 liters
- Sound power 60 dB(A)
- Sound pressure @1m 45 dB(A)
- Dimensions Width x Height x Depth 1,385x945x526
- Weight 148 kg
- Type/GWP R-32 / 675
- Refrigerant charge Kg 1.4 - CO2 tons 0.95
- External diameters Water 1 inch
Operating range:
Water supply temperature:
- Heating Minimum / Maximum 30 / 65 degrees
- Cooling Minimum / Maximum 5 / 25 degrees
- DHW Minimum / Maximum 30 / 60 degrees
Operating range (Outside air):
- Heating Minimum / Maximum -25 / 35 degrees
- Cooling Minimum / Maximum -5 / 43 degrees
- DHW Minimum / Maximum -25 / 43 degrees
There are no reviews
Data sheet
- Type: Monoblock units
- Gas: R32
- Thermal power: 10 KW
- Energy class: A+++
- Connection: Single-phase
- Series: Edge EVO WISAN-YME
