Comelit Ultra SB2 smart audio/video system base kit UT9000CON
COE UT9000CON
8023903426656
Comelit Ultra SB2 audio/video system basic kit expandable Ultra series for Simplebus 2 system with K1406 kit for forwarding video door phone calls to smartphone/tablet for Simplebus 2 system with connectivity included for one year.

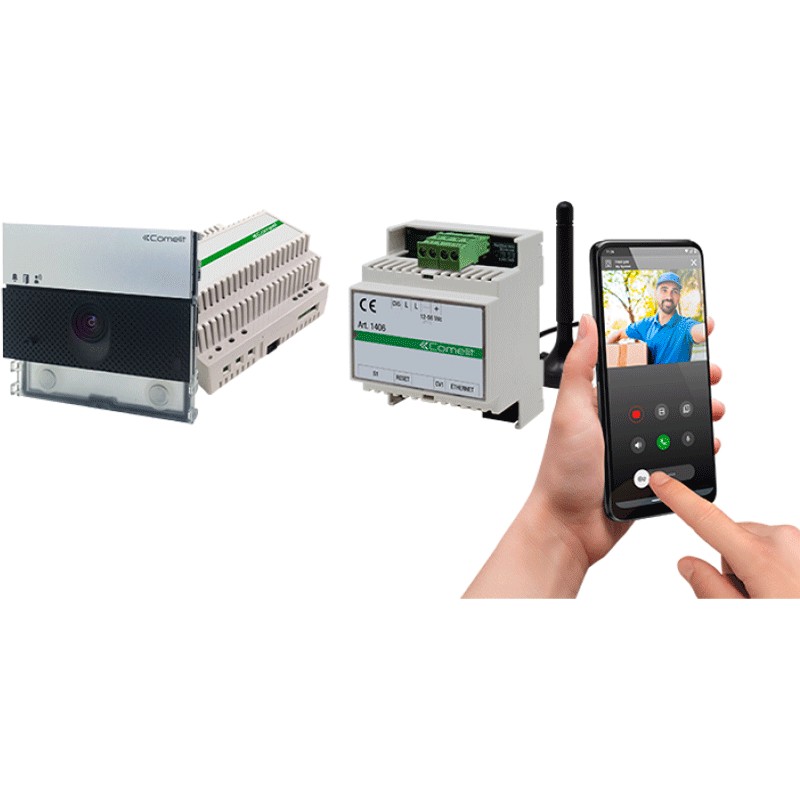

The kit consists of:
- 1 Simplebus 2 audio/video module item UT2020
- 1 power supply item 1210A
- 1 kit for call forwarding item K1406
Comelit Ultra SB2 smart audio/video system base kit UT9000CON
€493.47
Tax included
€493.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
Pay in installments with Klarna
Using the SimpleApp, which can be downloaded free of charge from the Google and Apple stores, it is possible to answer calls remotely and send the command to open the door. Call reception on the app is available if at least one Comelit indoor station is installed in the apartment.
Component specifications:
K1406 KIT MULTI-USAGE CALL FORWARDINGMODULE SB2Kit for forwarding video door phone calls to smartphone/tablet for Simplebus 2 system with connectivity included for one year.
The kit is suitable for condominium installations and supports up to a maximum of 50 apartments with 15 enabled users per apartment. If the number of apartments is higher than 50 it is possible to use more kits.
Through the SimpleApp, which can be downloaded for free from Google and Apple stores, it is possible to answer calls remotely and send the command to open the door. The reception of the call on the app is available if inside the apartment is installed at least one Comelit indoor station.
The kit consists of:
- n.1 art. 1406, call forwarding module for Simplebus 2 system;
- 1 art. 1407, gateway with 4G data SIM and one year of traffic included for internet connection;
- 1 art. 1212/B power supply unit to power all devices in the kit.
All items are prepared for mounting on DIN rail.
UT2020 AUDIO/VIDEO MODULE ULTRA SIMPLEBUS2:
Audio/video module for Ultra pushbutton panel, Simplebus2 system. To be used in systems with power supply unit art. 1210 / 1210A. Easy to install and simple to configure thanks to the smart programming of the call buttons. Twilight sensor for automatic switching off of the backlighting of name tags during daylight hours. Omnidirectional digital microphone and dual speakers for high-fidelity audio.
Wide-angle color camera (field of view: 120° horizontal, 90° vertical) Audio/visual signaling for the disabled that can be activated through programming. Ready for 2 call buttons. To be completed with cap, single or double button made of professional plastic with anti-yellowing and anti-opacification treatment or aluminum. Adjustments and programming without removing the module. ULTRA, the new most technologically advanced push-button panel with maximum ease of installation. Available in flush-mounted versions (10 mm projection from the wall) or surface-mounted versions (projection from the wall of only 35 mm). Dimensions (W x H x D): 100 x 90 x 35mm.
Features:
- Modular type
- Dimensions Height (mm) 90 - Width (mm) 100 - Depth (mm) 35
- Product color Aluminum, Black RAL9005, Transparent
- Product Weight (g) 350
- Coating Material Type Polycarbonate, Aluminum Alloy
- Flush Mounting Yes, with dedicated accessory
- Wall Mounting Yes, with dedicated accessory
- Audio/video Simplebus 2 with power supply art. 1210/1210A
- Microphone Digital audio sensor MEMS, omnidirectional
- Speaker 28mm (Ø), 8 Ohm, 1W (2)
- Technologies implemented Full-Duplex
- Color Camera
- Sensor Type 1/3" CMOS
- Lens Size Fixed Lens (mm) 1.79
- Viewing angle (H x V - °) 120 x 90
- Sensitivity (lux) 0.45
- Video resolution (H x V - pixel) 1288x968
- Power supply type Power supply from video door phone bus
- Supply voltage 33VDC
- Absorption in stand-by (W) 1,5
- Maximum absorption (W) 6
- Type of call Buttons
- Type of buttons Mechanical
- Number of buttons (n°) 2
- Color of backlighting White, Off
- Terminals L V+ V- COM NC NO SE+ SE-/GND RTE TX- TX+ RX- RX+
- Number of inputs (No.) 1
- Number of outputs (No.) 2
- Type of outputs Relay (C-NO-NC, 4A@12÷24 VAC/VDC, inrush 10A), SE: unlock pulse of 4A, holding current of 200mA for 12VAC/DC locks (maximum impedance 18 Ohm)
- Micro-USB communication ports
- Twilight sensor Yes
- Speaker volume Yes
- Microphone Volume Yes
- Backlight Brightness Yes
- Manual (via Dip Switch) Yes
- ViP Manager Software Yes
- IP Degree of Protection IP65
- Vandal-proof degree of protection IK IK08
- Operating temperature (°C) -25 ÷ 55
- Operating humidity (RH max) (%) 25 ÷ 95
- Environmental class IV
- Certifications CE RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
Features:
- Door opener Yes
- Number of auxiliary relays (No.) 1
- Input for local door opener button Yes
- Input for door open signalling Yes
- Visual signalling of system status Yes
- Acoustic signalling of system status Yes
- Voice synthesis of system status Yes
1210A SIMPLEBUS2 POWER SUPPLY UNIT:
Power supply provided with isolation transformer for audio or audio/video systems with 1 input compatible with all outdoor push-button panels with Simplebus 2 technology and 1 output for connection of devices to be chosen from among interphones and video interphones with Simplebus 2 technology. Equipped with terminal for line termination art. 1216. Dimensions: 143x62x90mm (8 DIN modules).
Features:
- Power supply voltage 230VAC / 50 ÷ 60Hz
- Power supply output voltage 33VDC
- Applicable to DIN guide Yes
- Number of DIN modules (n°) 8
- Product weight (g) 1000
- Dimensions Height (mm) 62 - Width (mm) 143 - Depth (mm) 90
- Coating material type Plastic
- Product color White
- Operating temperature (°C) 0 ÷ 40
- Audio/video system Simplebus 2 Yes
- Audio system Simplebus 2 Yes
- Wall mounting
- Max absorption (W) 30
- Maximum current absorption (mA) 350
- Maximum power consumption (W) 40
There are no reviews
Data sheet
- KIT: Basic Kit Video Doorphones
- WIFI: Yes
