Optical acoustic signaling Comelit EN54-3/2 48CLU003

Optical acoustic signaling plate Comelit EN54-3/2 48CLU003

Brand: Comelit

Cod: COE 48CLU003 EAN: 8023903372779

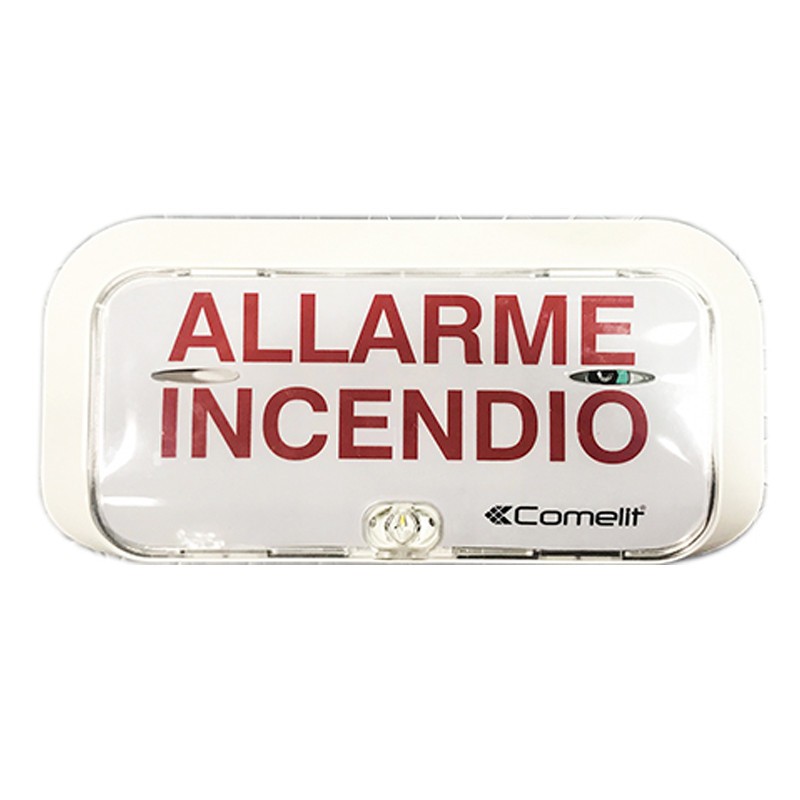

Comelit optical acoustic signaling plate with "Fire Alarm" inscription, with the following features:

Number of tones available 16
Optical signal coverage according to EN54- 23: (W) 3.6 x 9m
Standards EN EN54-3, EN54-23
Type Cover materials ABS - V0 + Polycarbonate
Color White
Optical signaling Yes
Color optical signaling White
Cable cross section for terminals (mm) 0.4 ÷ 2.5
Operating temperature: -10/+55°C
Dimensions: Width 275mm - Height 135mm - Depth 50mm
Supply voltage 19÷30 VDC
Abs. max (mA - optical part/acoustic part) 61
Acoustic signal low level (dB@1m) (dB) 71
Acoustic signal high level (dB@1m) (dB) 91
IP rating: IP21C
Prepared for wall mounting or partial flush mounting

Featuring low power consumption due to high-efficiency LED (white light) illumination.

Multi-tone acoustic part of which 7 certified, changeable via dip-switch.

Optical acoustic signaling plate Comelit EN54-3/2 48CLU003

€92.54 Tax included

€92.54

Optical acoustic signaling plate Comelit EN54-3/2 48CLU003

€92.54
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 37

: 2

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Targa optical acoustic signaling Comelit Certification according to EN 54-3 and EN 54-23. IP protection degree (IP code): IP21C - Type of coating: ABS - V0 + Polycarbonate - Number of shades are available: 16 - Dimensions 275 x 135 x 50mm - Color optical signalling: Red.
