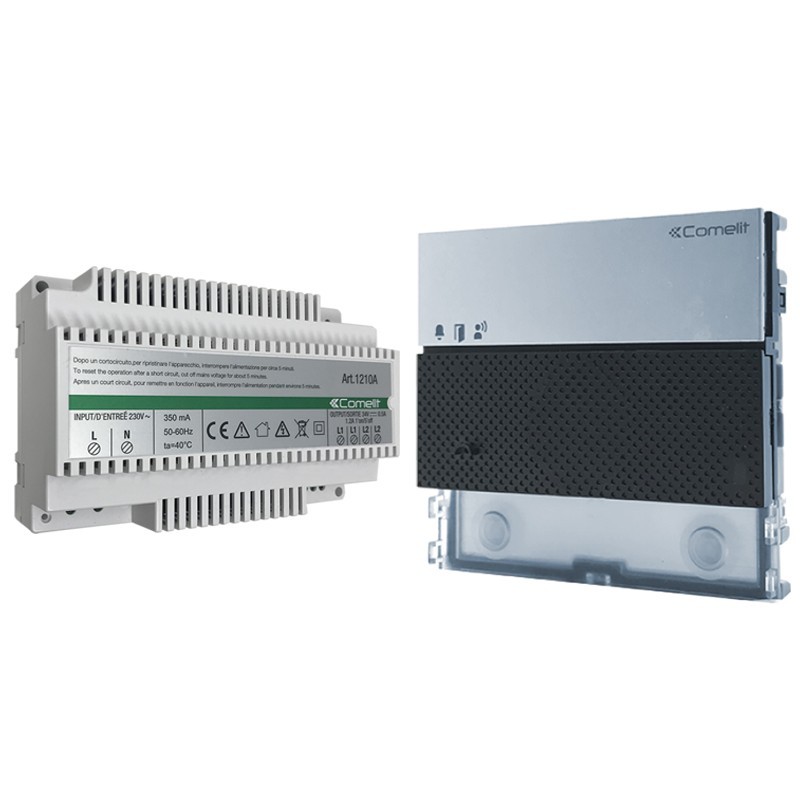

Basic Kit Comelit Ultra UT9000A audio system
COE UT9000A
8023903402742
Comelit Ultra series expandable audio system basic kit for Simplebus 2 system. The kit is composed of:
- 1 2-wire audio module art. UT2010
- 1 2-wire power supply unit art. 1210A.
Basic Kit Comelit Ultra UT9000A audio system
€208.01
Tax included
€208.01
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 32
: 2
Features UT2010 Ultra SIMPLEBUS2 Audio Module:
- To be used in systems with power supply unit art. 1210 / 1210A
- Easy to install and simple to configure thanks to smart programming of the call buttons. Twilight sensor for automatic switching off of the backlighting of name tags during daylight hours
- Omnidirectional digital microphone and dual speakers for high-fidelity audio
- Audio/visual aid signals for the disabled that can be activated via programming.
- Ready for 2 call buttons
- To be completed with cap, single button or double button in professional plastic with anti-yellowing and anti-opacification treatment or in aluminium.
- Adjustments and programming without removing the module
- Dimensions: 1 Ultra module
- ULTRA, the new most technologically advanced push-button panel with maximum ease of installation.
Features:
- Dimensions: Product height (mm) 90 - Product width (mm) 95,6 - Product depth (mm)27
- Product weight (g) 275
- Product colour Black RAL9005, Grey RAL 7042, Aluminium
- Material ABS, Plastic, Aluminium Alloy
- Flush Mounting Yes
- Wall Mount Yes
- Audio/video Simplebus 2 with power supply unit art. 4888C
- Audio/video Simplebus 2 with power supply unit art. 1210/1210A Yes
- Audio/video kit Simplebus 2 with power supply unit art. 1209 Yes
- Audio Simplebus 2 with power supply unit art. 1210/1210A Yes
- Microphone Digital audio MEMS sensor, omnidirectional
- Loudspeaker 28mm (Ø), 8 Ohm, 1W (2)
- Power supply from video door phone bus
- Power supply voltage 27÷33 VDC (Bus)
- Stand-by absorption (W) 1,5
- Maximum absorption (W) 3.5
- Type of call Buttons
- Number of buttons (n°) 2
- Colour of backlighting White, Off
- Terminals RTE GND SE- NO NC COM V- V+ L L
- Number of inputs (No.) 1
- Number of outputs (No.) 2
- Communication ports Micro-USB
- Brightness sensor Yes
- Twilight sensor Yes
- Speaker Volume Yes
- Microphone Volume Yes
- Backlight brightness Yes
- Degree of protection IP IP54
- Vandal-proof degree of protection IK IK08
- Operating temperature (°C) -25 ÷ 55
- Operating humidity (RH max - %) 25 ÷ 75
- Environmental class IV
- Compliance and Certifications RoHS II - 2011/65/EU (EN 50581:2012), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
- Door opener Yes
- Number of auxiliary relays (n°) 1
- Input for local door opener button Yes
- Input for door open signalling Yes
- Yes Visual signalling of system status
- Yes Acoustic signalling of system status
- Voice synthesis of system status Yes
- Button type Mechanical.
Features 1210A SIMPLEBUS2 power supply unit: Power supply provided with isolating transformer for audio or audio/video systems with 1 input compatible with all surface-mounted push-button panels with Simplebus 2 technology and 1 output for connection of devices to be chosen from among doorphones and video doorphones with Simplebus 2 technology.
Equipped with terminal for line termination art. 1216.
Characteristics:
- Power supply voltage 230VAC / 50÷60Hz
- Output power supply voltage 33VDC
- DIN rail mounting Yes
- Number of DIN modules (n°) 8
- Net weight (g) 1000
- Dimensions (mm) Height (mm) 62 - Width (mm) 143 - Depth (mm) 90
- Coating type Plastic
- Colour White
- Operating temperature (°C) 0 ÷ 40
- Audio/video system Simplebus 2 Yes
- Audio system Simplebus 2 Yes
- Wall mounting
- Max absorption (W) 11,5
- Max power consumption (W) 40
