KIT Videophone Comelit QUADRA Single-family WI-FI VIP IP 8561X
COE 8561X
8023903344189

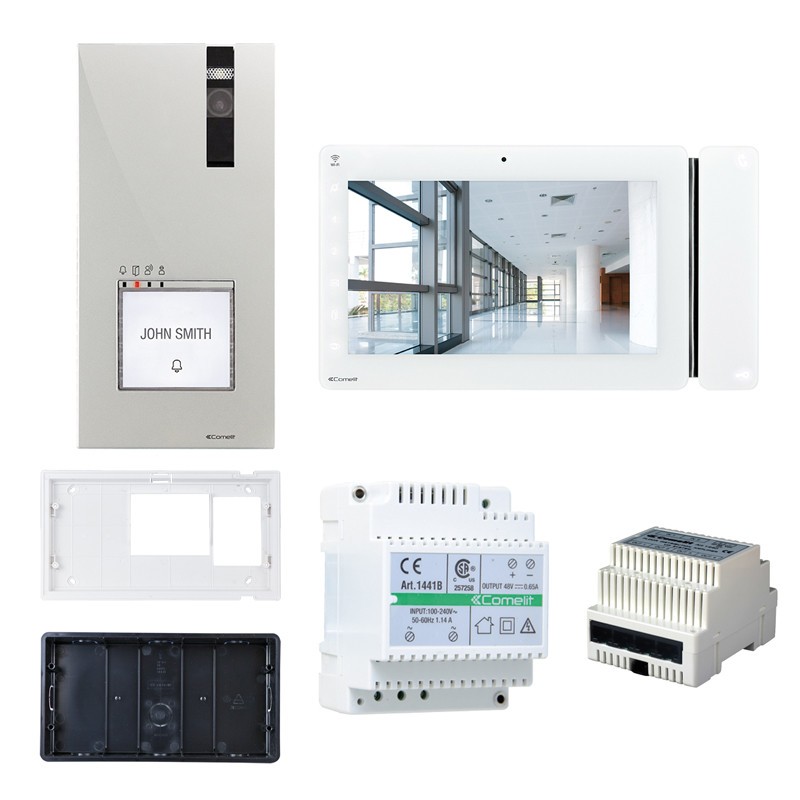

KIT Videophone Comelit QUADRA Single-Family WI-FI VIP System includes:
- 1 Quadra external push-button panel 4899MK
- 1 Monitor Maxi 7" Wi-Fi white 6842W
- 1 Flush-mounted box for Maxi 6817 monitor
- 1 Maxi 6820 Wall Mount Monitor Stand
- 1 1440 Floor Extender
- 1 1441B 30W Power Supply
The kit is pre-programmed and ready to use, it is expandable with the other products of the ViP catalogue. Compatible with H.264 video format.
KIT Videophone Comelit QUADRA Single-family WI-FI VIP IP 8561X
€658.20
Tax included
€658.20
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Frequently bought together
Technical specifications of the KIT components:
EXTERNAL POST QUADRA BUTTONS FOR KIT. VIP 4899MK
- Quadra series wall-mounted video entry door station
- Die-cast aluminium front panel, colour camera and single LED for night lighting
- Mechanical buttons with possibility to set from 1 to 4 call buttons by dip switch
- LED signalling for call sent, door opener activated, speech activated and system busy
- Loudspeaker volume and speech balance adjustment
- POE power supply
- The door unit is pre-programmed in DHCP mode, with ViP 100 address and the button makes the call to ViP1 address.
- Dimensions (W x H x D): 95x195x28mm.
MAXI MONITOR 7 INCH WI-FI FOR KIT. VIP 6842WK
- Maxi Wi-Fi colour monitor for flush-mounting (using optional box Art. 6817) or wall-mounting (with optional bracket Art. 6820) with 7" / 16:9 touch screen, full-duplex hands-free phonic with magnetic induction and touch sensitive controls for ViP system.
- Allows adjustment of colour level, contrast, audio volume and ringer volume.
- Equipped with a slot for a micro-SD card (not supplied)
- It is possible to customize the ringtone by choosing between different melodies
- Equipped as standard with door opener button, phonic enable/disable button with relative signalling LEDs and other buttons for auto switch-on, privacy service and other programmable functions.
- Handles out-of-door call and redial as standard.
- Compatible with H.264 video format
- Dimensions (W x H x D): 223x124x25mm
WALL BRACKET FOR MAXI S2 AND VIP 6820 MONITORS
- Wall bracket for Maxi monitors in UV resistant ABS.
- Colour white RAL9003
- Dimensions (W x H x D): 216.4x117.5x14 mm.
RECESSED BOX FOR MAXI MONITOR 6817
- Recessed box for Maxi monitor in black ABS plastic
- Dimensions (L x H x D): 212x115x50mm
30W POWER SUPPLY. VIP 1441B
- Power supply with 110Vac/240Vac input and 48Vdc output
- Power 30W
- Din rail power supply unit (4 DIN modules)
- Dimensions: 70x90x62mm
FLOOR SHUNT IP (VIP) 1440
- Floor shunt with one input, one output (10/100Mbit/s) and 4 taps (10 Mbit/s)
- Dimensions: 71x89x62 mm (4 DIN modules).
There are no reviews
Data sheet
- KIT: Video Doorphone Kit
- Model: Single-family house
- System: IP
- WIFI: Yes
