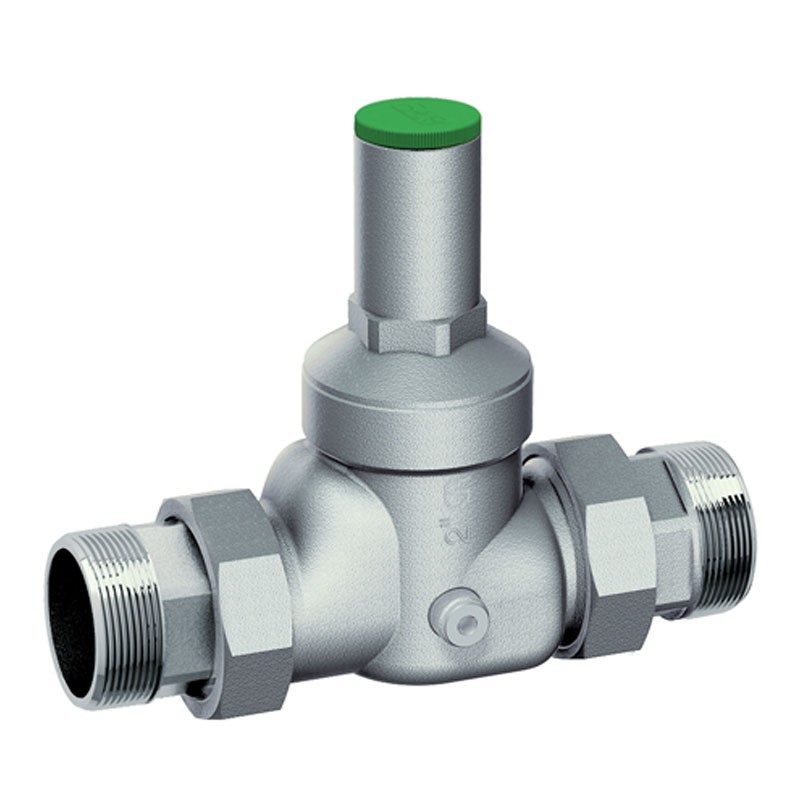

Far 2810 pressure reducer 1/2" MM chrome plated 2810 12

Brand: Far Rubinetterie

Cod: FRU 2810 12 EAN: 8032625915577

Chrome-plated Far 2810 pressure reducer for plumbing systems, with male-male connections and pressure gauge connection:

€79.77 Tax included

€79.77

€79.77
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 13

qty

€79.77

Buy it within and receive it from Tuesday, 11 November

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

SPECIFICATION ITEMS:

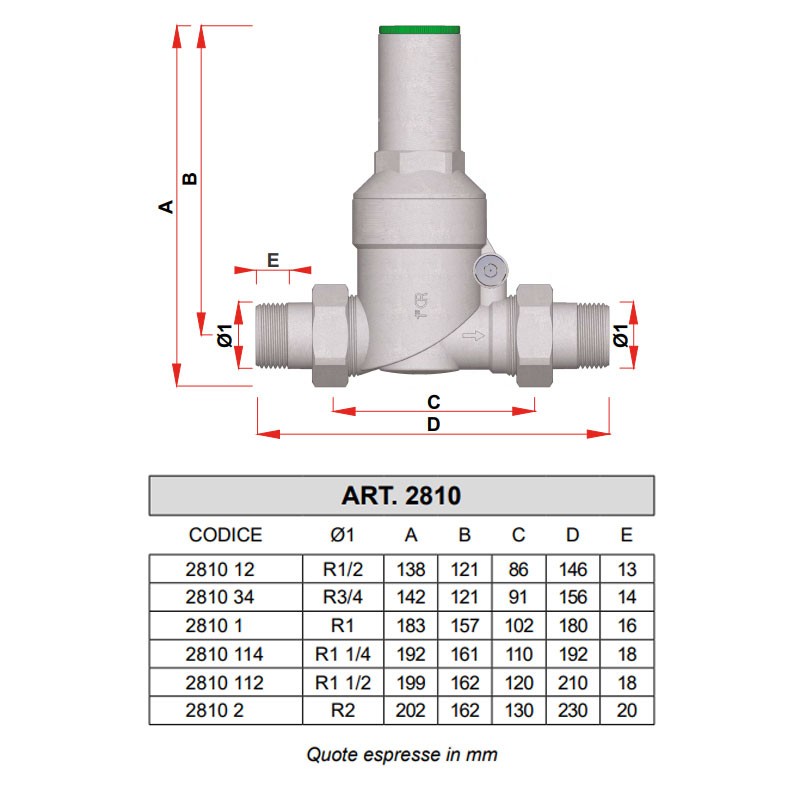

Pressure reducer for plumbing systems, made of chrome-plated CR brass, with 1/2-3/4-1-11/4- 11/2- 2 male union connections, inspectable and replaceable filter cartridge, pressure gauge connection, plastic adjusting wrench, EPDM o-rings and seals, stainless steel seal seat. Usable fluids air and water. Maximum operating temperature 75°C. Pressure rating 25 bar. Adjustable downstream pressure: 1 to 6 bar.

Overview:

The main purpose of reducers is to maintain constant pressure in the utilization system even with pressure variations upstream of the reducer. Variations are evident during the night or weekend period when water usage decreases. In the absence of a reducer, these surges could cause stresses of a certain magnitude or malfunctions on shut-off devices such as faucets, dishwashers, washing machines, etc., and thus cause unexpected ruptures. Referring to the chart drawn up in accordance with UNI EN 1567:2002 Valves for buildings - Water pressure reducers and combined water pressure reducers - Requirements and test methods, the inner dashed line represents PRESSURE REDUCERS FOR HYDROSANITARY SYSTEMS Compact series pressure changes obtained from tests at our laboratory. The inlet pressure influence test highlights this very characteristic, namely, that as the inlet pressure increases, the outlet pressure should not vary or at least vary within certain limits. Looking at the diagram, it can be seen that the FAR pressure reducer is amply within the limiting curves required by the standard, represented by the area between 2.8 and 3.2 bar of downstream pressure (up to 10 bar of upstream pressure) and the cone up to the values 2.2 and 3.8bar at the upstream pressure of 16 bar. In other words, if the mains pressure rises a few bars, the set pressure remains practically constant.

Features:
