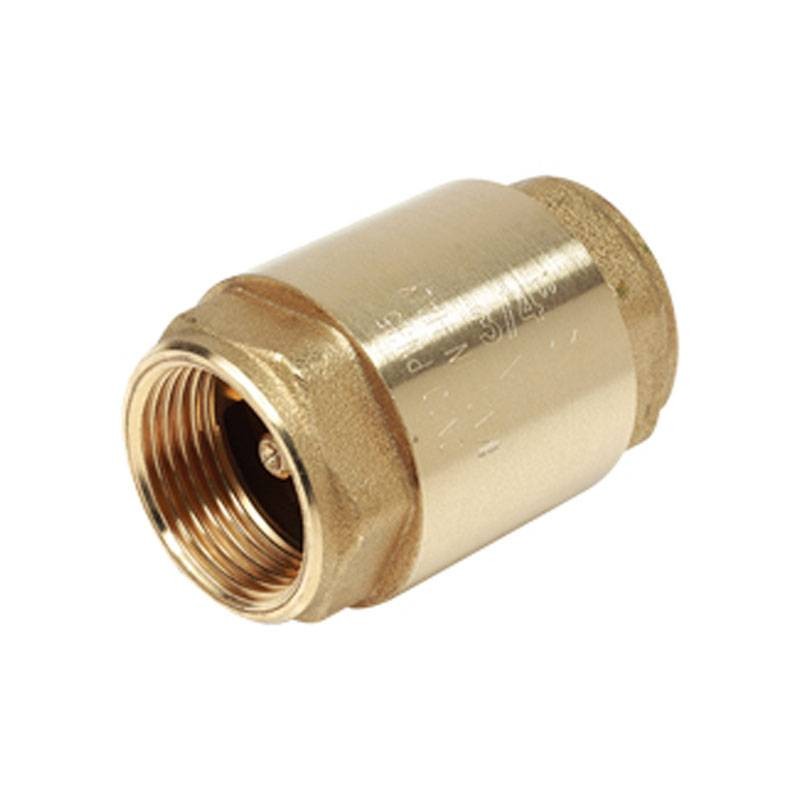

Giacomini brass 3-inch disc check valve R60Y040
GIA R60Y040
8009902272814
Giacomini brass disc check valve with the following features:
- Connections: female threaded ISO 228
- Fittings: 3 inches
- Material: brass
- Opening pressure: 0.02 bar
- Compatible fluids: water for thermal systems, domestic water, glycol water (max. 30 % glycol)
Giacomini brass 3-inch disc check valve R60Y040
€117.32
Tax included
€117.32
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 2
Pay in installments with Klarna
R60 check valves are one-way operating devices, i.e., they prevent the return of pressurized fluid. They find natural use in domestic water systems, water superelevation, heating systems, thermal power plants, heat generators (wall boilers, wood boilers, heat pumps), solar systems, industrial and agricultural water systems in general. The internal architecture allows sealing and installation in any position.
R60 check valves can be installed in any position respecting the direction of flow indicated by the arrow stamped on the valve body. Installation on piping is done by threads using standard plumbing practices.
Check the valve periodically, depending on the frequency of use and working conditions. If there are any leaks at the seal, these may be caused by deposits or foreign matter. In such a case, it is necessary to disassemble the valve from the system and carefully clean the seal by removing all impurities with compressed air or mechanical action.
There are no reviews
Data sheet
- Type: Check valves
- Hoses: 3
