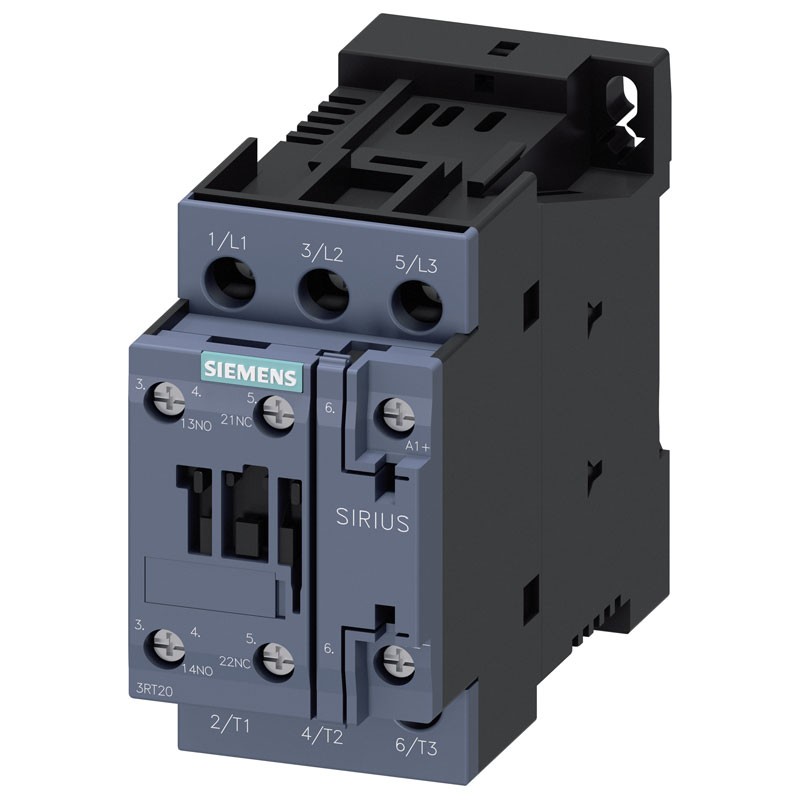

Siemens Sirius S0 Contactor 12A 3 Poles 1NO+1NC 24VDC 3RT20241BB40

Brand: Siemens

Cod: SIE 3RT20241BB40 EAN: 4011209831957

Siemens Sirius AC-3 contactor 12 A, 5.5 kW / 400 V 1 NO + 1 NC, DC 24 V 3-pole, design size S0 screw terminal.

€70.64 Tax included

€70.64

€70.64
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 88

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

Features:

power dissipation
W with current rating with AC in hot operating state 1.5W, for each pole 0.5W
Power loss
W with nominal current value without the value of the typical load current. 5,9W
Insulation voltage of the main circuit with pollution degree 3 nominal value - of the auxiliary circuit with pollution degree 3 nominal value 690V
impulse withstand voltage of the main circuit nominal value - of the auxiliary circuit nominal value 6kV
Max. permissible voltage for safe separation of coil and main contacts according to EN 60947-1 400V
Rectangular wave impact strength at DC 10g / 5 ms, 7.5g / 10 ms
Sine wave impact strength at DC 15g / 5 ms, 10g / 10 ms.

There are no reviews

Data sheet
