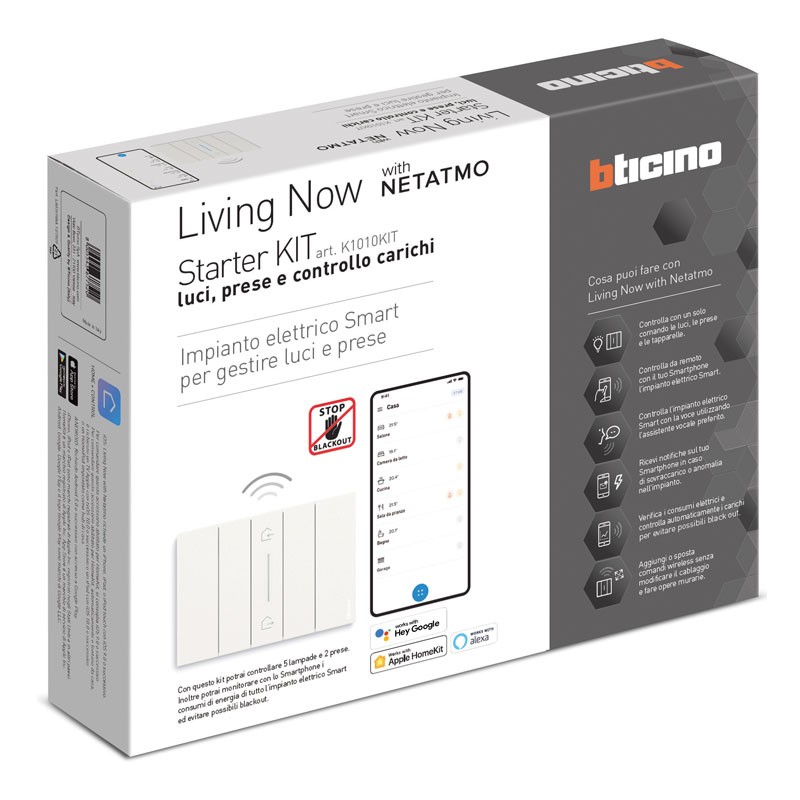

Bticino Living Now KIT Starter Lightning and Energy K1010KIT
BTI K1010KIT
8005543677520

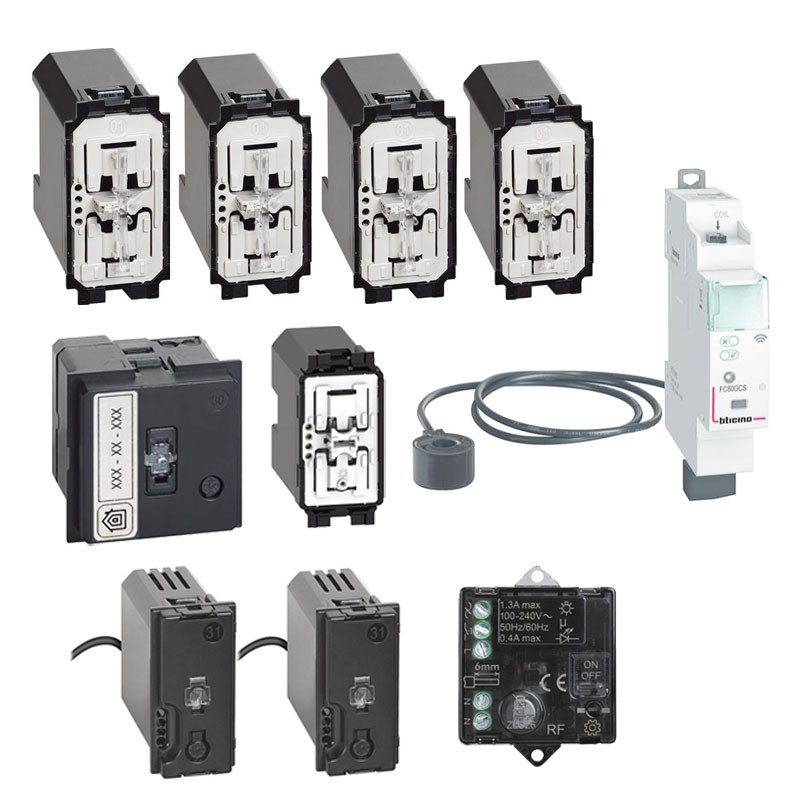

KIT Starter Lights and Energy Bticino Living Now composed by:
- 1 piece K4510C gateway (with new recessed radio in/out control one module)
- 3 pieces K4003C connected diverters
- 1 piece 3584C light relay connected
- 1 piece K4411C dimmer connected
- 2 pcs K4531C socket modules connected
- 1 piece FC80GCS new DIN load management module connected.
To complete with covers KG01, KG31, KM01, KM31, KW01, KW31, KG33, KM33
Bticino Living Now KIT Starter Lightning and Energy K1010KIT
€459.45
Tax included
€459.45
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 23
Pay in installments with Klarna
Frequently bought together
KIT components specification
- K4510C: Gateway to create a connected installation in the home. It can be used to control lights, shutters and electrical appliances connected to connected sockets using your smartphone and the Home + Control app, voice assistants, the general command at the entrance of your home. Supplied with wireless Entra&Esci master scenario control art. K4570CWI flush-mounted necessary for the pairing procedure of all connected devices. Power supply 110-230 Va.c. - Dimension 2 modules.
- K4003C: Connected switch. It allows to control the lights locally or remotely. It installs like a traditional diverter and is compatible with all loads with a maximum power of 250 W. It has a blue LED, configures the light and is compatible with all connected devices. It has a blue LED, configurable from the HOME + CONTROL APP, for localisation and load status functions. It can be associated with one or more wireless controls. Warning: connection to neutral is required. Power supply 100-240 Va.c. - 1 module
- 3584C: Connected lights relay. It allows you to control lights locally or remotely. Compatible with all loads up to 300W. It can be connected to one or more traditional pushbuttons or associated with one or more wireless controls. It is installed like a traditional relay in the flush-mounting box (behind the button) or in junction boxes. Warning: connection to neutral is required. Power supply 110-230 Va.c.
- K4411C: Connected Switch / Dimmer . It allows you to control the lights locally or remotely, with dimmer function activated via Home+Control APP. It installs like a traditional switch and is compatible with all LED loads (also dimmable) with max power 150 W at 230 V. It has a blue LED for localisation and load status functions, which can be configured via APP. It can be connected to one or more traditional buttons or associated with one or more wireless controls. Warning: connection to neutral is required. Power supply 110-230 Va.c. - 1 module
- K4531C: Module for connected socket. Connected to a power outlet, it allows remote control of electrical devices and check their consumption (instantaneous, daily, monthly). You can also receive notifications in case of abnormal consumption. Compatible with any electrical device with power up to 3800W with 16A absorption (protected against overloading). It has a blue LED, configurable from the HOME + CONTROL APP, for localisation and load status functions. Power supply 100-240 Va.c. - 1 module
- FC80GCS: DIN smart load management module to monitor the consumption of the entire electrical system, feed/supply loads and set scenarios with priority and non-priority loads. When the maximum power foreseen by the user's contract is reached, the non-priority loads will be temporarily disconnected to avoid possible and annoying blackouts. A toroid is supplied for measuring the input current. Power supply 110-230 Va.c. - 1 DIN module.
There are no reviews
Data sheet
- KIT: Kit Starter
