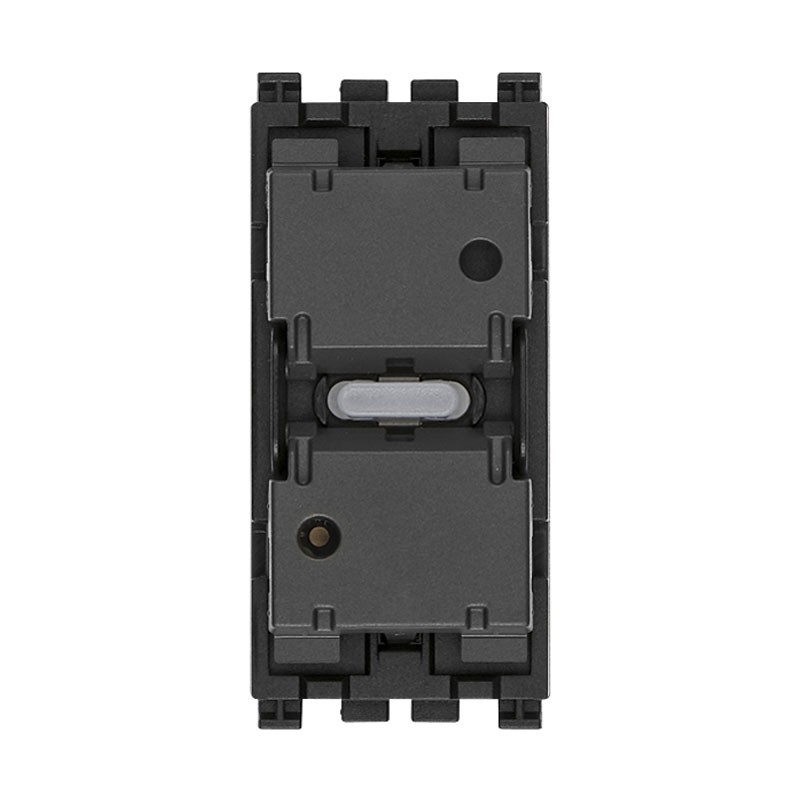

Vimar Arke View Wireless connected roller shutter control 19594.0
VIW 19594.0
8007352628564
Vimar Arkè View Wireless connected shutter control for 1 shutter with slat orientation to be completed with two interchangeable half-buttons 1 Eikon module (19755.2 - 19755.2.B - 19755.2.M).
Compatible with Alexa, Google Home and IFTTT, via the appropriate Zigbee gateway or hub.
Vimar Arke View Wireless connected roller shutter control 19594.0
€48.81
Tax included
€48.81
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 64
: 19
Frequently bought together
The device allows the shutter/blind to be controlled through the on-board buttons and through a wirelles connection. The device can be controlled with two different radio standards (exclusive of each other): Bluetooth mesh (default) or Zigbee (settable via View Wirelles app). The Bluetooth mesh network implies the presence of the 20597-19597-14597 gateway while the dialogue via Zigbee requires a Zigbee gateway (e.g. Amazon Echo Plus, Echo Show or Echo Studio).
Equipped with an output with 2 monostable relays with interlocked operation, that is mutually exclusive activation of the relays with minimum interlocking time. In the absence of mains power, both relays remain open.
The front keys of the device control only the rolling shutter actuator on board:
- short press: if the shutter is stationary, the slat rotates; if the shutter is moving, it stops;
- long pressure: the upper key raises the shutter while the lower key lowers it;
- double pressure of any of the two buttons: recall of the preferred position (memorization is done through the View Wirelles app).
.
Features:
- Rated supply voltage: 100-240 V~, 50/60 Hz
- Power dissipation: 0,55 W
- Transmitted RF power: < 100mW (20 dBm)
- Frequency range: 2400-2483.5 MHz
- Terminals: - 2 terminals (L and N) for line and neutral - - 1 terminal (P) for connection to remote wired control (e.g. art. 20008-19008-16080-14008). The maximum distance between the IoT device and the button is 50 m with a minimum section cable of 1.5 mm2 - 2 terminals (? and ?) for the shutter output
- 2 front buttons that are used both for load control and as configuration buttons
- RGB LED indicating the movement of the shutter (settable from the View Wireless App) and the configuration status (flashing blue)
- In Bluetooth technology mode, up to 2 radio devices (art. 03925) can be associated with the device, allowing the control of the actuator or the activation of a scenario
- Operating temperature: -10 ÷ +40 °C (for indoor use)
- Degree of protection: IP20
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology
- Controlled by App View (for Bluetooth technology) and Amazon Alexa App (for Zigbee technology).
