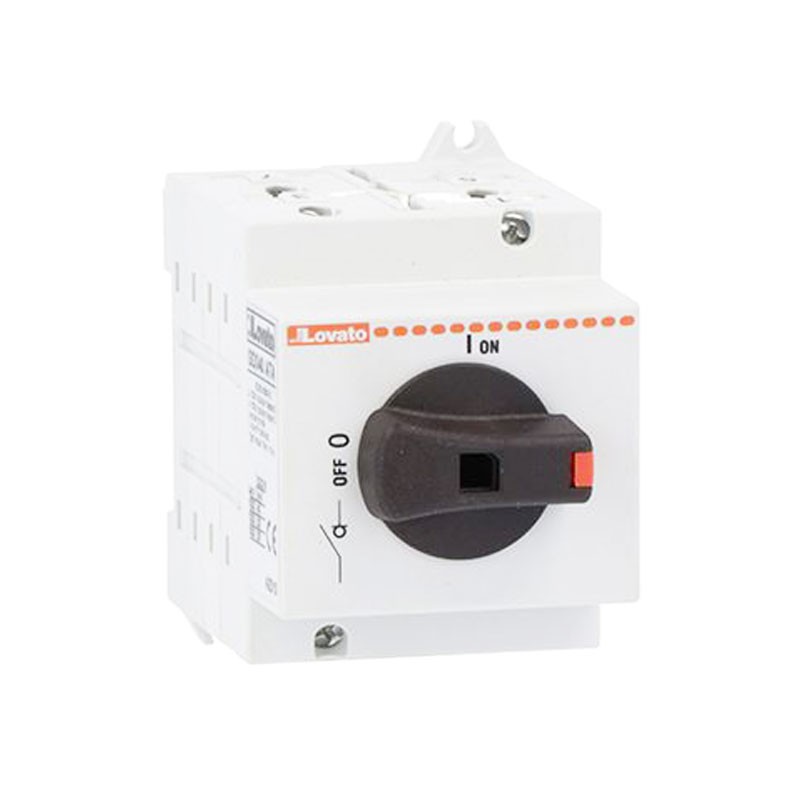

Switch Disconnector Lovato DC 40A 1000V with handle GD040AT4
LOV GD040AT4
8013975216804
Lovato Disconnect Switch, Operating voltage type DC, Conventional free air thermal current Ith IEC 40A, Rated insulation voltage IEC/EN 1500V, direct operating version, with handle for photovoltaic, 4 poles.
Switch Disconnector Lovato DC 40A 1000V with handle GD040AT4
€78.81
Tax included
€78.81
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 127
: 10
Pay in installments with Klarna
Features:
- Type GD
- Number of poles nr. 4
- Type of operating voltage DC
- Conventional free air thermal current Ith IEC A 40
- Rated insulation voltage IEC/EN V 1500
- Rated impulse withstand voltage (Uimp) kV 8
- Power dissipation per pole max W 1.9
- Mechanical life cycles 10000
- Mounting position Normal Vertical plane Allowed Any
- Fastening Screw / DIN 35mm rail
- Connections type Screw and washer - Phillips 1 tool
- Operating temperature min °C -25 - max °C +55
- Protection degree IP20 frontal
Operating current Ie DC21A:
- 600V A 40
- 800V A 40
- 1000V A 40
- 1200V A 32
- 1500V A 25.
Terminal tightening torque:
- min Nm 1.2
- max Nm 1.6
- min Ibin 1.3
- max Ibin 1.2.
Conductor cross-section:
- IEC min mm² 1
- IEC max mm² 10
- AWG/kcmil min 18
- AWG/kcmil max 8.
Data sheet
- Voltage: 1000V
- Poles: 4P
- Degree of protection: IP20
- Amps: 40A
- Circuit Protections: Disconnectors
- Operating voltage: DC
