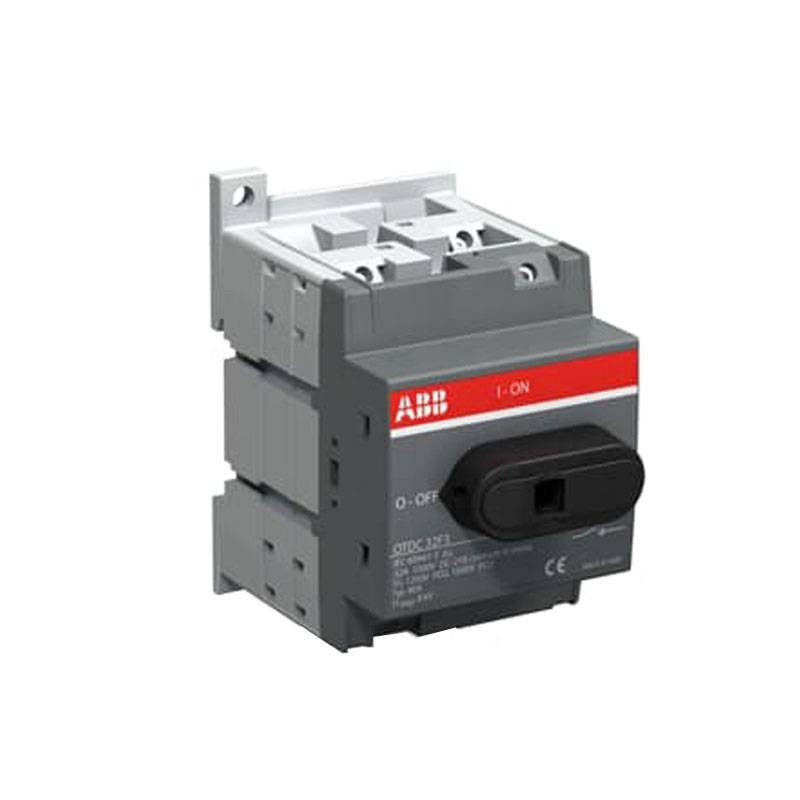

Abb Switch Disconnector 32A 3P 1000VDC 3 Modules OTDC32F3
ABB OTDC32F3
6417019526140
Abb OTDC switch disconnector with the following characteristics:
- Rated current: 32 amps
- Impulse withstand voltage: 8 kV
- Rated insulation voltage: 1000 V
- Rated operating voltage: 1000 V
- Mounting type: Base mounting, DIN rail mounting
- Number of circuits: 1
- Number of poles: 3
- Number of modules: 3
- Shaft diameter: 6 mm
- Degree of protection: In front IP20
Specially designed for DC applications. With the compact design, efficiency and reliability of the OTDC range, photovoltaic systems reach a new level of development.
Abb Switch Disconnector 32A 3P 1000VDC 3 Modules OTDC32F3
€149.81
Tax included
€149.81
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 15
: 72
Pay in installments with Klarna
The OTDC range of switch-disconnectors from 16 to 800 amperes is specially designed for DC applications. Thanks to the compact design, efficiency and reliability of the OTDC range, PV systems reach a new level of development.
The versatile OTDC range includes solutions for systems with the most stringent requirements: voltage class of 1500 VDC, multi-circuit disconnection, and combined load outputs up to 1500 A.
Features:
- Conventional free air thermal current (Ith): q = 40 °C 45 A
- Conventional thermal current (Ithe): Fully Closed 45 A
- Rated closing power on short circuit (Icm): (1000 V DC) 0.8 kA
- Rated allowable short-circuit current (Icw): 1000 V DC 0.8 kA for 1 s 0.8 kA
- Power loss: at Rated Operating Conditions per pole 0.5 W
- Pollution degree: 3
- Handle color: Black
- Handle type: Knob
- Positive opening maneuver torque (direct opening operation): 0.4 0.8 Nm
- Control: Mechanism on the top of the switch
- Operation mode: Front operation
- Mounting type: Base mounting, DIN rail mounting
- Cable cross-section: 2.5 ... 16 mm²
- Clamp type: Screw terminals
- Tightening torque: 1.2 1.4 Nm
- Usage: Photovoltaic
- Product width: 52.5 mm
- Product height: 89 mm
- Product depth: 77.6 mm
There are no reviews
Data sheet
- Voltage: 1000VAC
- Modules: 3
- Poles: 3P
- Degree of protection: IP20
- Amps: 32A
- Circuit Protections: Disconnectors
- Operating voltage: DC
