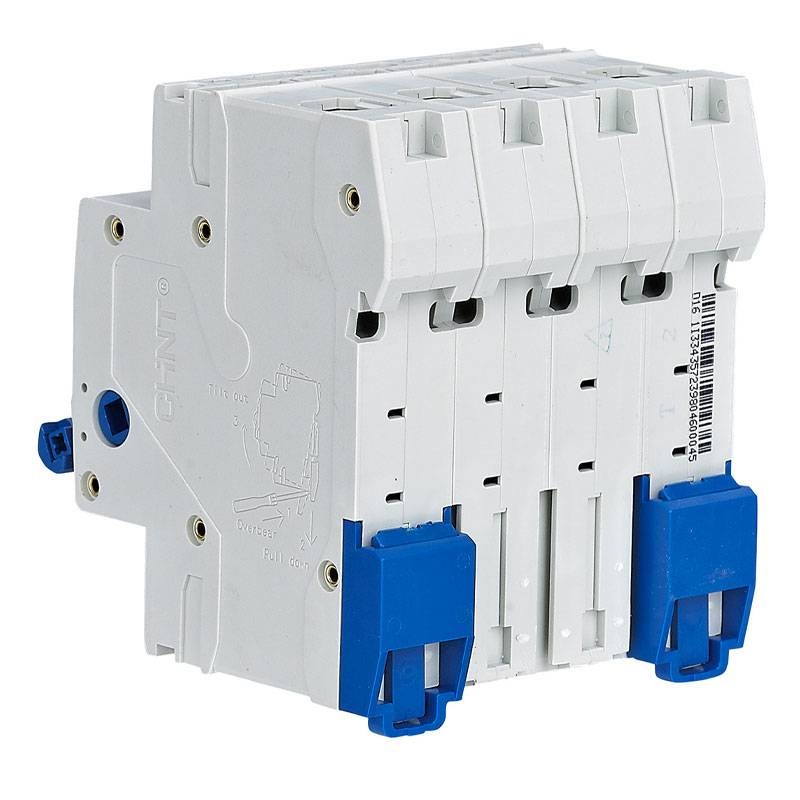

Chint Modular Disconnector NH4 32A 4P 400 Vac 4 Modules 398046
CHT 398046
6925808314439
Chint NH4 Modular Disconnector with the following characteristics:
- Number of Poles: 4P
- Rated current: 32 A
- Rated voltage: 400 Vac
- Number of Modules: 4
- Degree of protection: IP20
- Matching accessories: XF9R series auxiliary contact
Chint Modular Disconnector NH4 32A 4P 400 Vac 4 Modules 398046
€27.61
Tax included
€27.61
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
NH4 series Modular Disconnector for civil, tertiary and industrial applications. Load-break switch for sectioning an electrical circuit for maintenance or extension actions.
Features:
- Reference standard: IEC/EN 60947-3
- Rated frequency: 50/60 Hz
- Isolation voltage: 500 Vac
- Impulse voltage: 4 kV
- Rated short-time current Icw: 12 x In
- Power Dissipation: 2.2 W
- Dimensions: 86x72x77 mm (HxWxD)
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Degree of protection: IP20
- Amps: 32A
- Circuit Protections: Disconnectors
