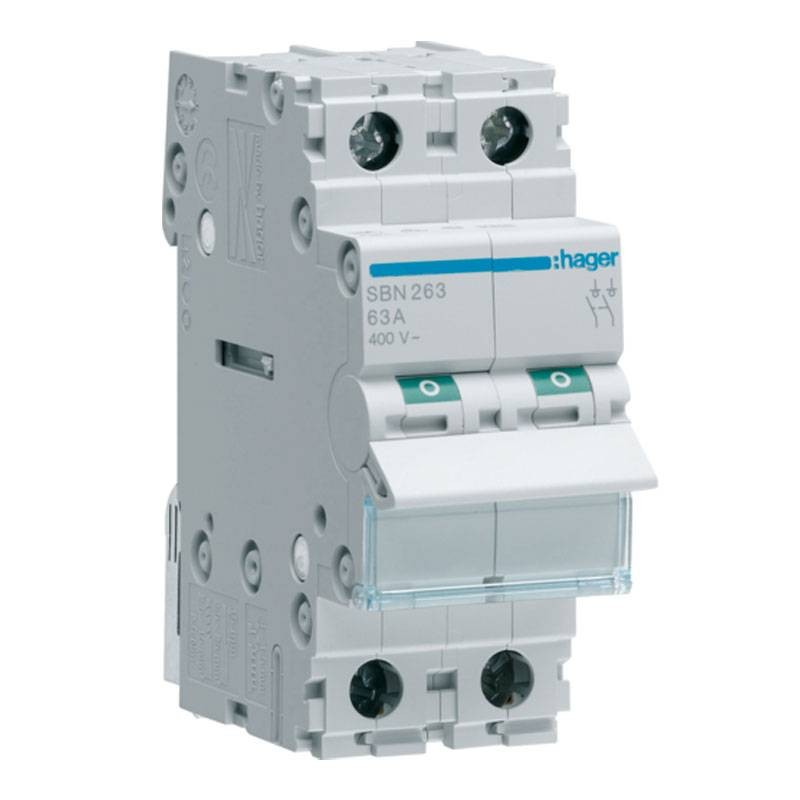

Hager 2P 63A 2-Module Disconnect Switch SBN263
HAG SBN263
3250615510211
Hager non-automatic switch disconnector with the following characteristics:
- Number of poles: 2P
- Rated current: 63 amps
- Rated operating voltage: 400V
- Type of input voltage: AC
- Tightening torque: 2.8Nm
- Number of NO contacts: 2
- Degree of protection: IP20
- Non-Automatic
Hager 2P 63A 2-Module Disconnect Switch SBN263
€33.92
Tax included
€33.92
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 14
: 3
Pay in installments with Klarna
Frequently bought together
The disconnector, otherwise referred to as the voltage isolator, has the same as a circuit breaker, but on a larger scale: it is, in fact, responsible for shutting off the flow of energy to electrical distribution power plants. This is mainly to ensure the safety of the power plant and primarily of the people working inside it since one of its special features is to separate the flow of energy from the working environments. Another special feature of this instrument is its ability to be able to detect defects in the electrical flow and isolate them. When the defect is then corrected, the disconnector will make the current flow normally again.
Features:
- Rated frequency: 50/60 Hz
- Rated fault holding current: 6000V
- Total power dissipation: 4.6 W
- Power dissipation per pole: 2.3 W
- Minimum cross-section with flexible cable: 2.5-16mm²
- Minimum cross-section with rigid cable: 2.5-25mm²
- Position of terminals: aligned
- Type of connection: screw
- Operating temperature: -20 to +50°C
- Storage/transport temperature: -40 - +80 °C
- Pollution degree: 2
- Altitude: 2000m
- Depth of installed product: 68 mm
- Height of installed product: 83 mm
- Installed product width: 35mm
There are no reviews
Data sheet
- Voltage: 400VAC
- Poles: 2P
- Degree of protection: IP20
- Amps: 63A
- Circuit Protections: Disconnectors
- Operating voltage: AC
