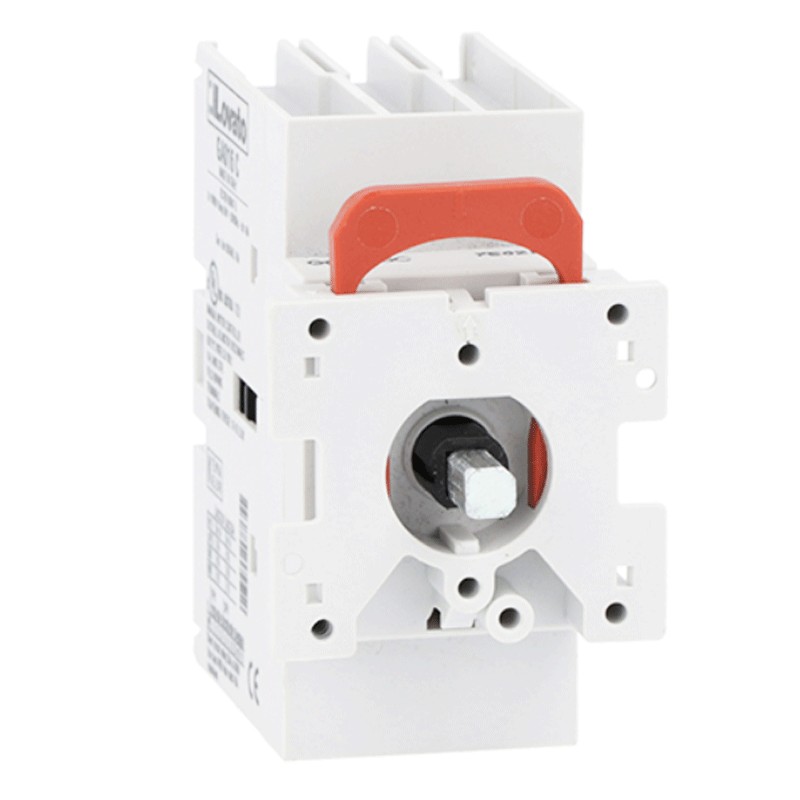

Lovato three-pole door-mounted disconnect switch 40A GA040C

Lovato
Lovato
LOV GA040C 8013975177686

Lovato three-pole door-mounted disconnect switch with the following characteristics:

  • AC operating voltage type
  • Type GA
  • IEC/EN 1000 rated insulation voltage
  • Rated impulse withstand voltage (Uimp) 8 kV
  • Current In 40 A
  • 3 poles
  • 2 modules
  • Mounting position vertical plane
  • Screw fixing 35 mm DIN rail
  • Degree of protection front IP20

Request info about this product

Lovato three-pole door-mounted disconnect switch 40A GA040C

€24.06 Tax included
€24.06

Lovato three-pole door-mounted disconnect switch 40A GA040C

€24.06
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 5
Altre disponibilità dal produttore
qty

Lovato three-pole door-mounted disconnect switch 40A GA040C

€24.06

Buy it within and receive it from Thursday, 13 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.

Features:

  • Lovato Series
  • Type of operating voltage AC
  • Type GA
  • 3 poles
  • 2 modules
  • Current In 40 A
  • Rated insulation voltage IEC/EN 1000 V
  • Rated impulse withstand voltage (Uimp) 8 kV
  • Power dissipation per pole max 0.4 W
  • Mechanical life 100000 cycles
  • Electrical life 100000 cycles
  • Mounting position vertical plane
  • Permissible position any
  • Screw fixing DIN 35 mm rail
  • Terminal tightening torque min Nm 1.8 - max Nm 2
  • Operating temperature min -25 °C max 55 °C
  • Storage temperature min -40 °C max 70 °C
  • Maximum altitude 3000 m
  • Frontal protection degree IP20
  • Pollution degree 3
  • Conditional short circuit current (rms) 50 kA
  • Protection against short circuit with fuses Class/A- gG25

There are no reviews

Data sheet

Modules:
2
Poles:
3P
Amps:
40A
Circuit Protections:
Disconnectors
Operating voltage:
AC
