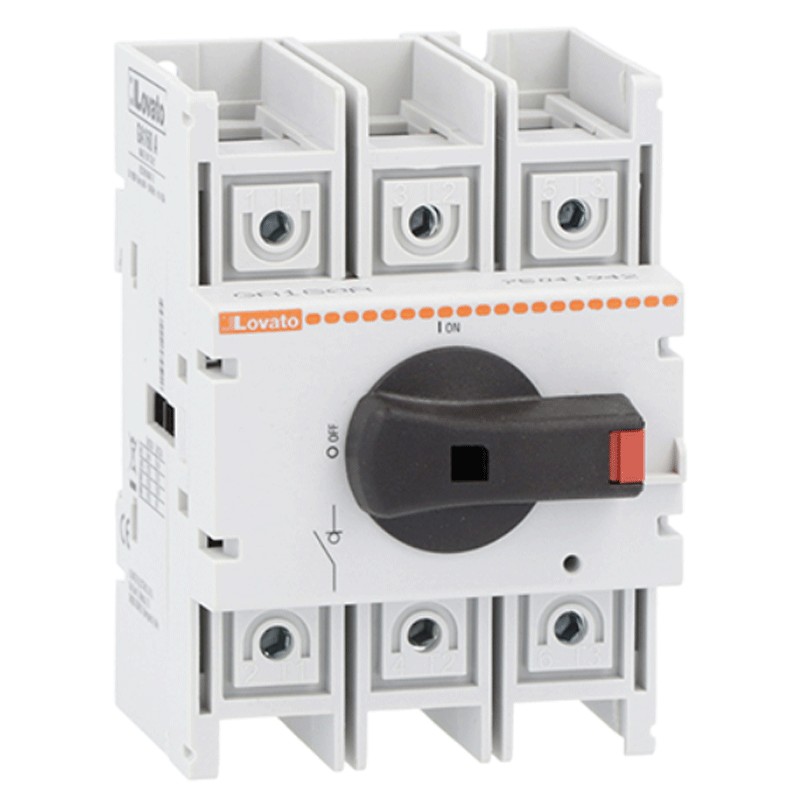

Lovato three-pole switch 63A GA063C direct control

Lovato
Lovato
LOV GA063A 8013975177617

Lovato three-pole switch disconnector withdirect control, with the following characteristics:

  • Max operating voltage 600 Vac

  • General operating current 63 A

  • Type of operating voltage AC

  • 3 poles

  • 3 modules

  • Degree of protection on front panel IP20

  • Mounting position flat vertical

  • Screw fixing 35 mm DIN rail


Request info about this product

Lovato three-pole switch 63A GA063C direct control

€31.80 Tax included
€31.80

Lovato three-pole switch 63A GA063C direct control

€31.80
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 30
logo priority: 4
Altre disponibilità dal produttore
qty

Lovato three-pole switch 63A GA063C direct control

€31.80

Buy it within and receive it from Thursday, 18 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.

Features:

  • Lovato series
  • Max operating voltage 600 Vac
  • Type of operating voltage AC
  • 3 poles
  • 3 modules
  • Current In 63A
  • IEC/EN rated insulation voltage 1000 V
  • Rated impulse withstand voltage (Uimp) 8 kV
  • Power dissipation per pole max 1.6 W
  • Mechanical life 30000 cycles
  • Electrical life 30000 cycles
  • Mounting position vertical plane
  • Permissible position any
  • Screw fixing DIN 35 mm rail
  • Terminal tightening torque min Nm 5 - max Nm 6
  • Operating temperature min -25 °C max 55 °C
  • Storage temperature min -40 °C max 70 °C
  • Maximum altitude 3000 m
  • Frontal protection degree IP20
  • Pollution degree 3
  • Short circuit current rms 50 kA
  • Short circuit current with Class/A J/60 fuse

There are no reviews

Data sheet

Voltage:
600VAC
Modules:
3
Poles:
3P
Amps:
63A
Circuit Protections:
Disconnectors
Operating voltage:
AC
