Contact Tetrapolar Copper Bar Holder Stepped 250/400ACM4400
IIC CM4400
8028045003109
Contact Tetrapolar stepped copper bar holder with the following characteristics:
- Bar size: 20x5 - 30x5 mm
- Capacity: 250/400A
- Support spacing (mm) - Icc e!./1s: 5/25 kA
- Degree of protection: IP00
- Rated voltage 500 V
- Flammability rating according to UL94
- Heat resistance 130 degrees
- Operating temperature: 85 degrees
- 850 degrees at glow wire test

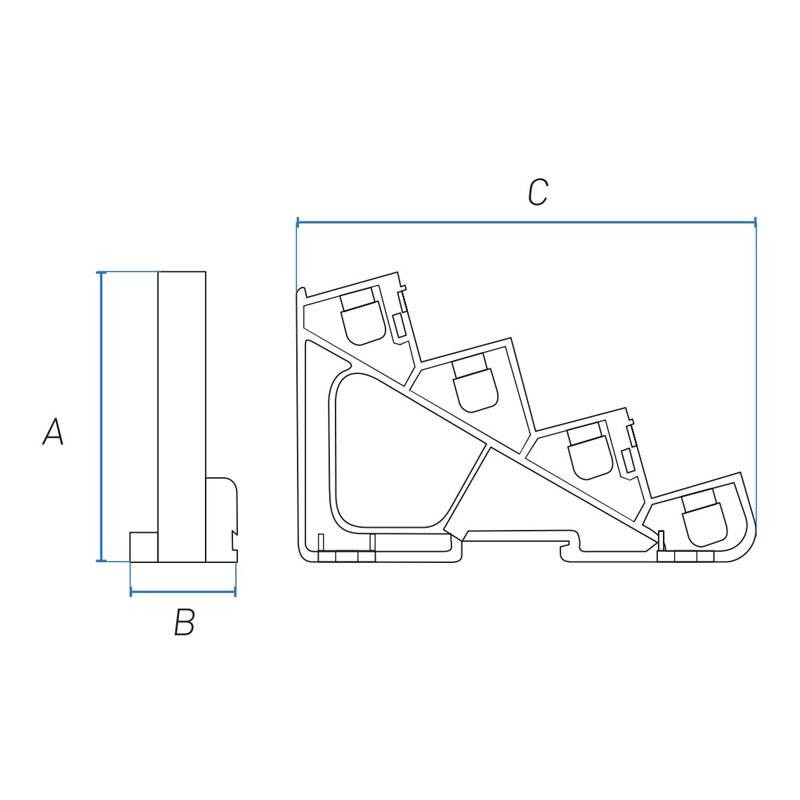

- Dimensions: 92x34x147 (A-B-C)
Contact Tetrapolar Copper Bar Holder Stepped 250/400ACM4400
€17.97
Tax included
€17.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 14
Pay in installments with Klarna

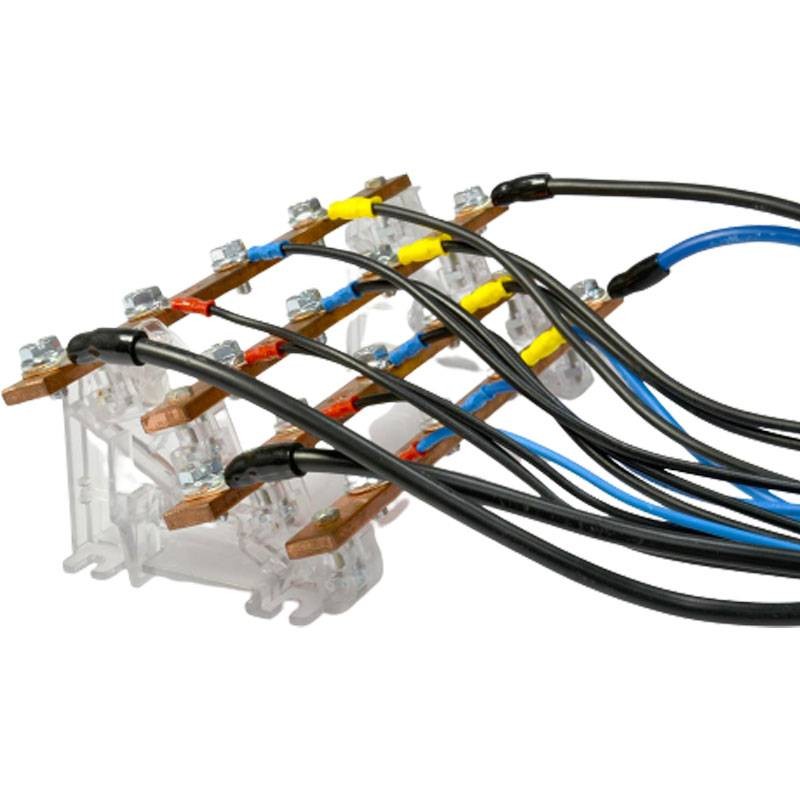

Copper bar support, stepped type has two tetrapolar models, CM4160 and CM4400, which allow inclined mounting of bars on the rails on the single support.
DIN rail mounting, in the CM4160 is facilitated by the flexible manually adjustable clip system, while in the CM4400 it is enabled by the adjustable screw/nut system.
Advantages:
- Versatility of mounting on both DIN rails and panel bottom
- Quick snap-on mounting on DIN rails
- Mounting flexibility of the
- Linear system with bars of different cross sections
Materials:
- Insulating body: Self-extinguishing polycarbonate
- Cover: Self-extinguishing PVC-based technopolymer
- Caps: Polyamide
- Hardware: Galvanized steel
Certifications:
- EN 17-13/1
- EN 60439-1
- EN 60439-2
- RoHS2 Directive 2011/65/EU
There are no reviews
Data sheet
- Type: Bars
