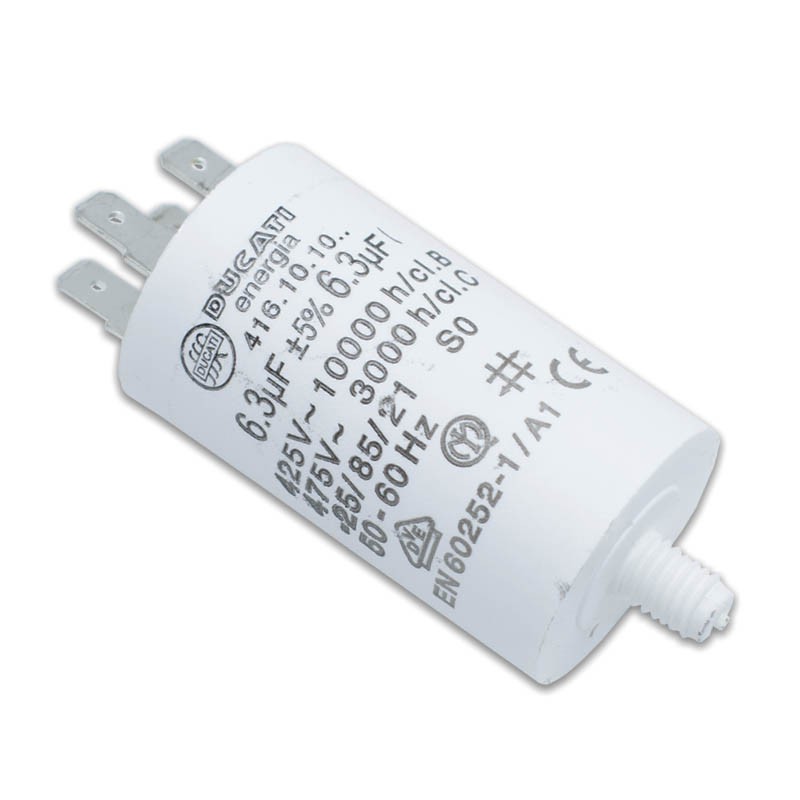

Capacitor Ducati 450V 6,3 UF with double Faston Tang 416101064.CU
DUC 416101064.CU
9000005832768
Capacitor Ducati 450V 6,3 UF with double Faston Tang, polypropylene, Application engine, in the regime.
Capacitor Ducati 450V 6,3 UF with double Faston Tang 416101064.CU
€3.01
Tax included
€3.01
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 214
: 162
The dielectric is polypropylene film, Ie the reinforcements are formed by a thin metallic deposit obtained by evaporation under vacuum. Housing and cover are made of self-extinguishing plastic material: The element capacitive-sealed with polyurethane resin. The main characteristics of this capacitor series are:
- Winding antinduttivo low-loss
- Property autorigeneranti that prevent the short circuit
- Small size and low weight
- The capacitor is absolutely free from the risk of leakage
- safety class: P0.
Features:
- Tolerance of capacity : ± 5%
- Working frequency : 50 ÷ 60 Hz
- Test voltage of the individual : Between the armor: 2,15 Vn for 2 sec to ground 3KV for 2 sec.
- Loss angle tan ? : <20 104 @ 20°C V=Vn, 50Hz
- Coating : Case and cover in self-extinguishing plastic material, grade V2 according to UL 94
- Terminals : Terminal "Faston" 6,3 mm single, double, plug, 2.8 mm, two-wire cable, cable single core
- Degree of protection : For version with terminals: IP00, for versions with screened cable: IP55
- Cover port-to-terminal : Test of the sphere (IEC 309-1): 125°C Test of the glow wire (IEC 695-2-1): 850°C Resistance to surface currents (IEC 309-1): 250V
- Shank threaded fixing : maximum tightening Torque: 5 N m.
