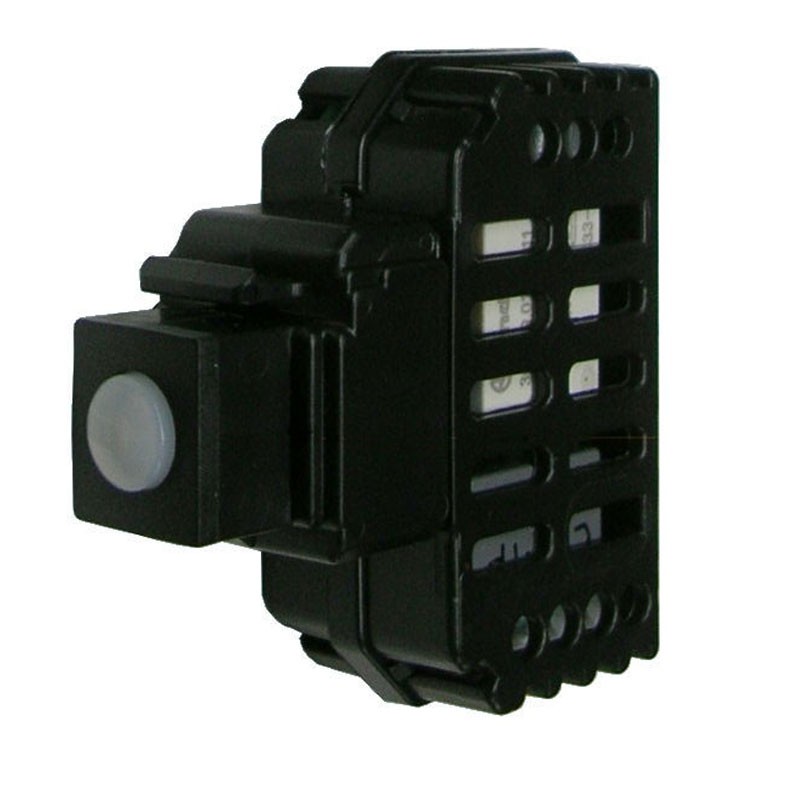

Tecnel LUX1 electronic detector lights IR TE3795NR
TTE TE3795NR
Tecnel LUX1 volumetric IR volumetric presence light detector, with built-in timer and twilight switch; relay output with 5A NC-C-NA contact, with Keystone hookup, black color.
Compatible with commercially available switch ranges.
Tecnel LUX1 electronic detector lights IR TE3795NR
€45.75
Tax included
€45.75
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 3
Pay in installments with Klarna
The LUX-LILLIPUT is an electronic device capable of receiving the emission of infrared rays emanating from a heat source at a distance not exceeding 6m. The presence of a moving hot body in the area controlled by the sensor triggers the power stage of the device, which controls the switching on of the load.
A twilight sensor allows the power stage to be inhibited if the ambient light is above the set lux threshold for tripping.
As long as the warm body remains in motion, through the sensitivity beams, the timer continues to reset itself while keeping the load activated. All versions have a 5A cosine=1 NC-C-NA contact relay output for activating both resistive and inductive loads and have time and lux adjustments on the bottom of the device to prevent tampering.
