Fischer TAM steel anchor heavy duty fasteners diameter 6 00090249
FIS 00090249
4006209902493

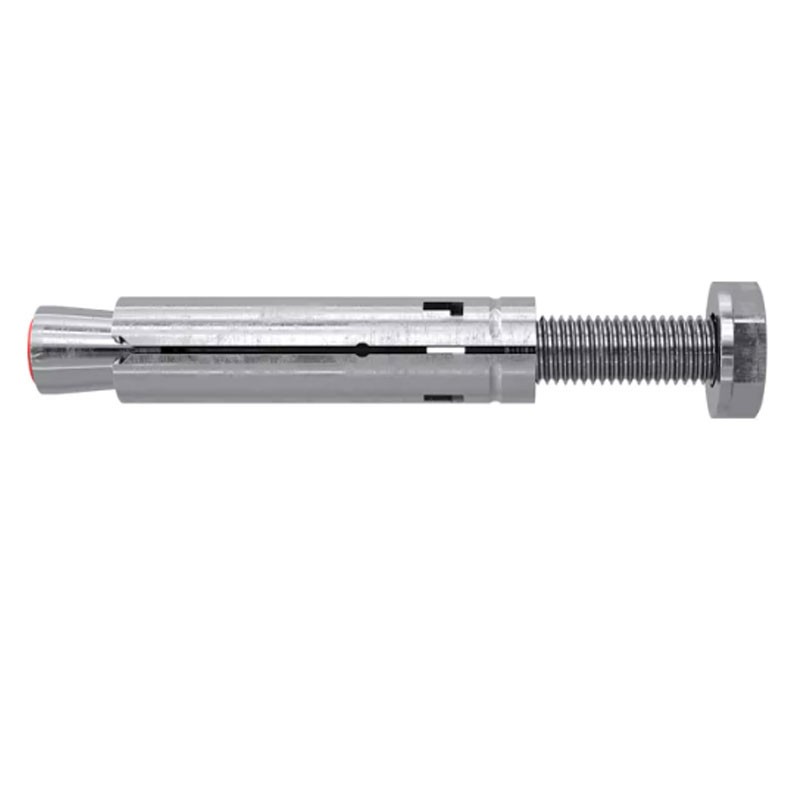

Fischer anchor TA M6 S/10 Version with T.E. screw class 8.8, with the following features:
- Galvanized steel anchor
- Certified for installations with concrete from class C20/25 up to C50/60
- Can also be used on compacted natural stone
- Optimized geometry to reduce installation effort and allow it to be fastened even on narrower spaces
- Coupled with a hex head screw
- Numerous possible applications: fall protection devices, gates, stairs, facades, metal constructions, cable trays, etc...
- Easy to install, for fastenings in non-cracked concrete
- Certifications: ETA-04/0003 - DoP No. 0263
- Approved for-: concrete from C20/25 to C50/60, non-cracked
- Also suitable for: C12/15 concrete - natural stone with compacted structure
- Hole diameter: 10 mm
- Clamping wrench: 10 mm
Fischer TAM steel anchor heavy duty fasteners diameter 6 00090249
€1.07
Tax included
€1.07
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 543
: 160
Pay in installments with Klarna
The fischer TA M-S expansion anchor is an anchor with an internal thread for nonthrough-hole installations in galvanized steel. During installation, the cone expands the anchor body against the hole wall. The dust cap protects the thread from dirt. This ensures its functionality. The expansion anchor is ideal for fastening fall protection devices, systems and machinery in non-cracked concrete.
Advantages:
- The optimized geometry minimizes the effort for installation and allows it to be used in extremely confined spaces. This allows easy installation for the user.
- The three-sector expanding body causes uniform load distribution and thus reduced spacing and edge distances. This makes the TA M extremely flexible.
- Internal metric threading allows the use of standard screws and threaded rods for an ideal fit to the application.
- The red plastic cap protects the thread from drilling dust, thus ensuring proper function.
- TA M (anchor only or with screw) is also available in A2 stainless steel (not certified).
Applications:
- Metal construction
- Handrails
- Consoles
- Steps
- Cable walkways
- Machinery
- Ladders
- Gates
- Facades
- Spaced installations
Mounting:
- TA M is suitable for non-through installation.
- When torque is applied, the cone is drawn into the anchor body, which expands against the hole wall.
- For proper installation, the TA M nonthrough-hole anchor must rest on the element to be fastened.
- To determine the length of the screw ls: Screw length ls =Length of fastener+ Thickness of object to be fastened tfix+ Thickness of washer
Data sheet
- Type: Dowels
- Installation: Concrete
