Tube Cembre terminal preisolato 25mmq 12mm pieces 50 PKC25016
CEM PKC25016
8016692035512

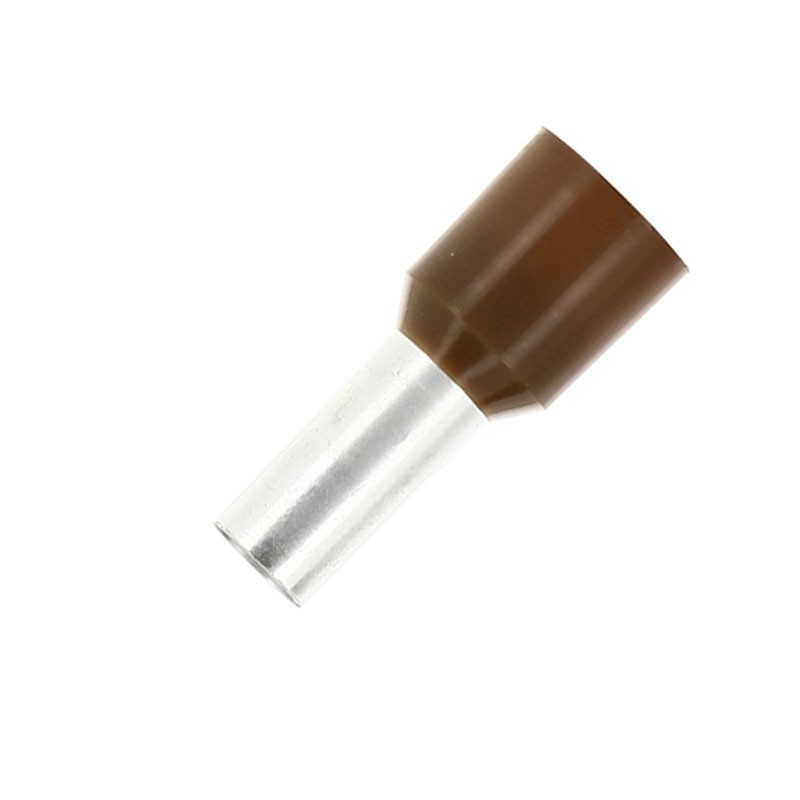

Tube Cembre terminal preisolato for flexible cables, copper, rated cross section 25mmq, length 12mm, pack pieces 50. Color Brown.
Tube Cembre terminal preisolato 25mmq 12mm pieces 50 PKC25016
€0.24
Tax included
€0.24
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 850
: 80
Pay in installments with Klarna
The tubes, the terminals of the series PKC are made of electrolytic copper, tin plated; thanks to their reduced dimensions, suitable to be used for securing flexible cables on the terminals where the available space is very limited.
The connectors are made from electrolytic copper Cu-DHP UNI 5649/1988
Features:
- Stiffness dieletttrica (KV/mm) : >16,5
- Volume resistivity (? cm) : >1013
- Temp.masisma of the year (°C) : 115-130
- Flammability (UL94) V2
- Density (g/cm3) : 1,14
- Absorption d H2O (%) : 1,5
- Resistance at break (N/mm2) : 77
- The connectors can also be stored at a minimum temperature not below - 40°C
- Halogen-free
- Minimum operating temperature -20 °C
- Maximum use temperature of 115 °C
- Maximum use temperature for short periods up to 130 °C
- Material (Body) Copper-ETP, tin plated electrolytically
- Material (Blouse partially insulation) Polyamide PA6.
There are no reviews
Data sheet
- Type: Pre-insulated Pipes
- Section: 25mmq
