Tube double Cembre terminal preisolato 2X1mmq 8mm pieces 100 PKT108
CEM PKT108
8016692036441

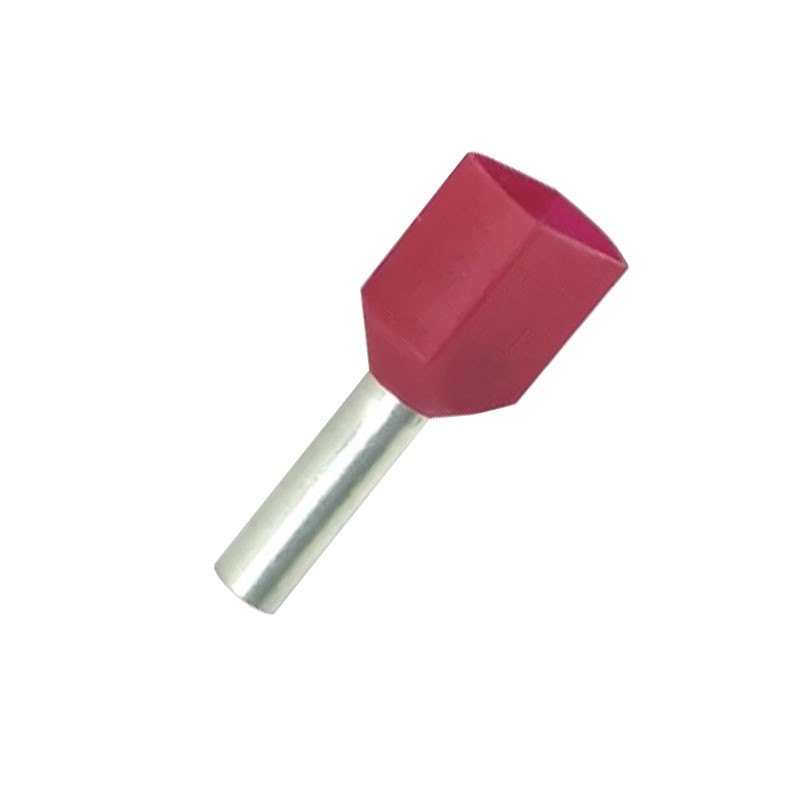

Tube double Cembre terminal preisolato for flexible cables, copper, rated cross section 2x1mmq, length 8mm, pack of pieces 100. Color Red.
Tube double Cembre terminal preisolato 2X1mmq 8mm pieces 100 PKT108
€0.02
Tax included
€0.02
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12500
: 160
Pay in installments with Klarna
The tubes, the terminals of the series PKT are made of electrolytic copper and tin plated; specially designed for use in applications where it is necessary to insert in the same receptacle, 2-wire.
The connectors are made from electrolytic copper Cu-DHP UNI 5649/1988
Features:
- Stiffness dieletttrica (KV/mm) : >16,5
- Volume resistivity (? cm) : >1013
- Temp.masisma of the year (°C) : 115-130
- Flammability (UL94) V2
- Density (g/cm3) : 1,14
- Absorption d H2O (%) : 1,5
- Resistance at break (N/mm2) : 77
- The connectors can also be stored at a minimum temperature not below - 40°C
- Halogen-free
- Minimum operating temperature -20 °C
- Maximum use temperature of 115 °C
- Maximum use temperature for short periods up to 130 °C
- Material (Body) Copper-ETP, tin plated electrolytically
- Material (Blouse partially insulation) Polyamide PA6.
There are no reviews
Data sheet
- Type: Wire end Ferrules
- Section: 2-1mmq
