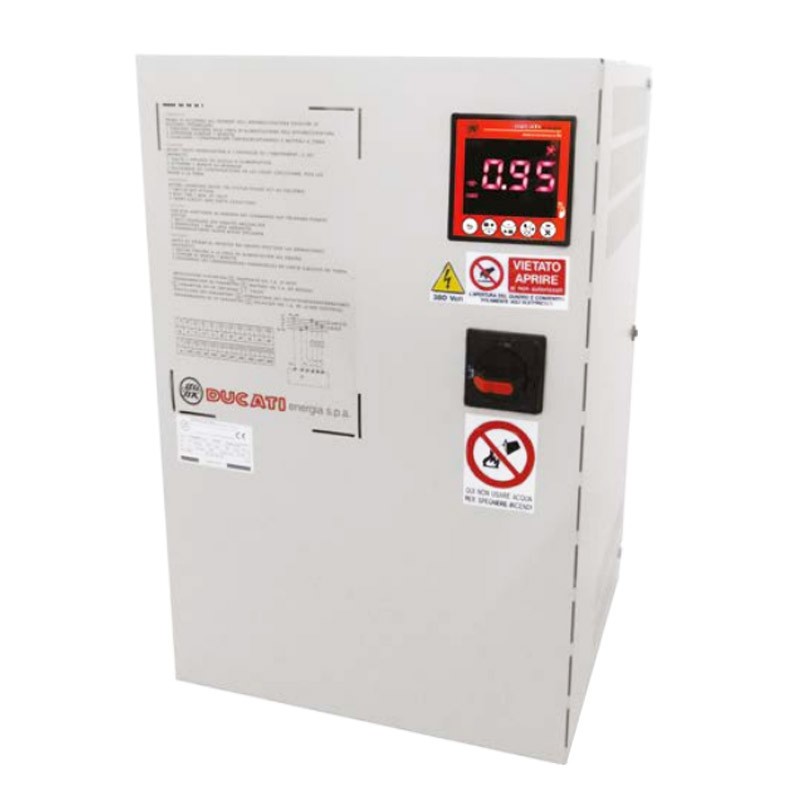

Unit power factor correction Ducati 200-M 160KVAR 415V 8 steps 415040095
DUC 415040095
Unit power factor correction automatic Ducati 200-M 160KVAR 415V 8 steps, Power battery 2 x 20 + 3 x 40 (kVAr), In 215A, In sec. 400A, Dimensions: Wxdxh 400x270x1200mm.
Unit power factor correction Ducati 200-M 160KVAR 415V 8 steps 415040095
€1,998.82
Tax included
€1,998.82
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Capacitors single-phase series MONO Long Life 4In metallized polypropylene, which are characterized by high ability to be able to work in systems with high harmonic currents. Rated voltage 415 V
Regulator digital microprocessor series rEvolution R5. NFC to exchange configuration and status information through the App DUCATI Smart Energy dedicated. Self-recognition of the direction and position of the TA, with the following reduction of the operations of the operator. Operation with cogeneration systems (e.g. photovoltaic)
Carpentry steel sheet painted with epoxy powders RAL 7035
Switch omni-polar with door interlock and the current nominal dimensioned 1.45 In according to CEI EN
Contactor suitable for capacitive loads with devices limiting the inrush current of power supply 230 V, 50-60 Hz
Features:
- Mains voltage (use) 400V
- Rated frequency 50 Hz
- Insulation voltage 690 V
- Natural Ventilation
- Installation For interior wall
- Degree of protection IP30
- Continuous Service
- Class temperature framework -5 +40 °C
- Power supply 3PH + PE (in addition to 80 kVAr)
- Cable entry From the top
- Internal links FS17
- Discharge devices Provided on each battery
- Fuses NH-00 GL
- Short-circuit current of 50 kA (influenced by upstream protection).
