The analyzer TV and Sat Melchioni combo meter DVB-T/T2, S/S2 530134216
MEM 530134216
8006012307559

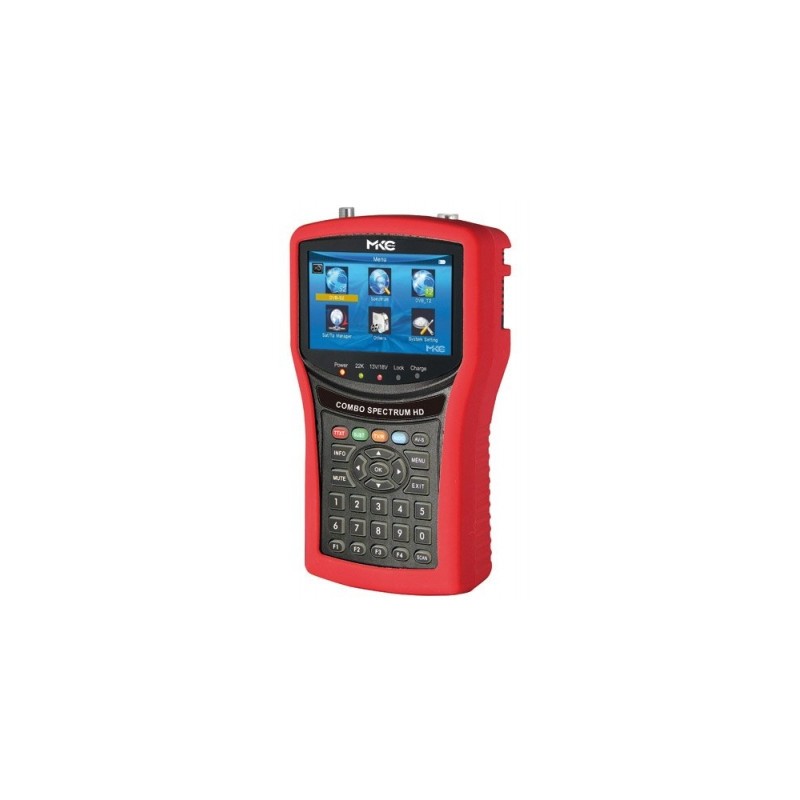

Analyzer Melchioni combo meter DVB-T/T2, S/S2 measurement spectrum and SCR MKC instrumentation MKC-COMBO SPECTRUM HD 530134216
The analyzer TV and Sat Melchioni combo meter DVB-T/T2, S/S2 530134216
€524.79
Tax included
€524.79
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Combination meter signal dvb-t/t2&dvb-s/s2, hd with spectrum analyzer and scr model: combo meter the professional to measure signals of digital terrestrial and satellite with scr. ideal tool for the satellite sector/antennistica. - screen 4.3-inch high-definition (hd) tft lcd - fully compatible with dvb-s/s2/t/t2, mpeg-2/mpeg-4 - decoding hardware mpeg-2 / h.264 - digital indicator for signal strength and signal quality - analysis of the constellation - spectrum analyzer - supports scan, auto, blind, manual or nit - acoustic and visual alarm dellaggancio signal (lock) - automatic calculation front az, el (azimuth, elevation) - support tone 22khz, diseqc 1.0/1.1/1.2 - built-in speaker - supports both av in and av out for connection to the camera, monitor - hdmi port - short circuit protection for lnb - battery 7.4 v/3000mah li/ion battery (included) - software upgrade via usb port - easily portable-supplied with: - manual in Italian - car charger - audio cable-video - power charger (input: ac 90v-240v/50hz output: dc 12v/1.5 a) main Features Dvb-t/t2; Dvb-s/s2 Spectrum Analysis.WEIGHT 0,66 Kg DIMENSIONS 125x205x45mm LNB POWER 13V/18V, 400mA max SYMBOL RATE 2-LEVEL INPUT SIGNAL -79.5 dBm (max) LCD TYPE TFT transmissive VIDEO OUTPUT CVBS VIDEO INPUT CVBS, AUDIO INPUT stereo Audio L/R AUDIO OUTPUT Stereo, Mono,R/L USB CONNECTOR MICROPROCESSOR Novatek ADAPTER Output: DC12V/1.5 A, input 100-240VAC 50/60Hz CONSUMPTION 10W max SWITCHING BANDWIDTH-22kHz Tone FREQUENCY INPUT 48~862MHz ANTENNA SUPPLY 5V, 12V/17V 100mA DEMODULATION QPSK,16QAM.64QAM,256QAM NUMBER OF PIXELS 480 (RGB) x 272 ACTIVE AREA 95.04x53.86mm2 FORMAT HDMI 1.3 a VIDEO DECOMPRESSION Decoding MPEG-2 MP@HL, MPEG-1, resolution MPEG-4 ASP@L5 HD, decoding H. 264 MP&HP@L4,HW JPEG REPORT RESOLUTION PAL-25 frame@720*576,NTSC-30 frame@720*480, SIGNAL COMPATIBILITY Support conversion for different video formats VIDEO FORMATS Conversion 4:3,16:9,By Pan & Scan and Letter Box DECOMPRESSION MPEG-1 Layer I/II ,MPEG-2 Layer I/II, PROTOCOL Interface USB2.0 FILE MANAGER NTFS, FAT32, FAT16 FORMAT FILES to wma,mp3,mp4,avi,jpg,jpeg,bmp,img CLOCK FREQUENCY 500MHz SDRAM MEMORY 1Gbit DDR3 LI/ION battery 7.4 V/3000mAh (included)
There are no reviews
Data sheet
- Type: Analyzers for TV signals
