2-Wire Elvox Single-family video door entry kit with 4.3 hands-free Tab 7558/E
VIW 7558/E
8013406311054

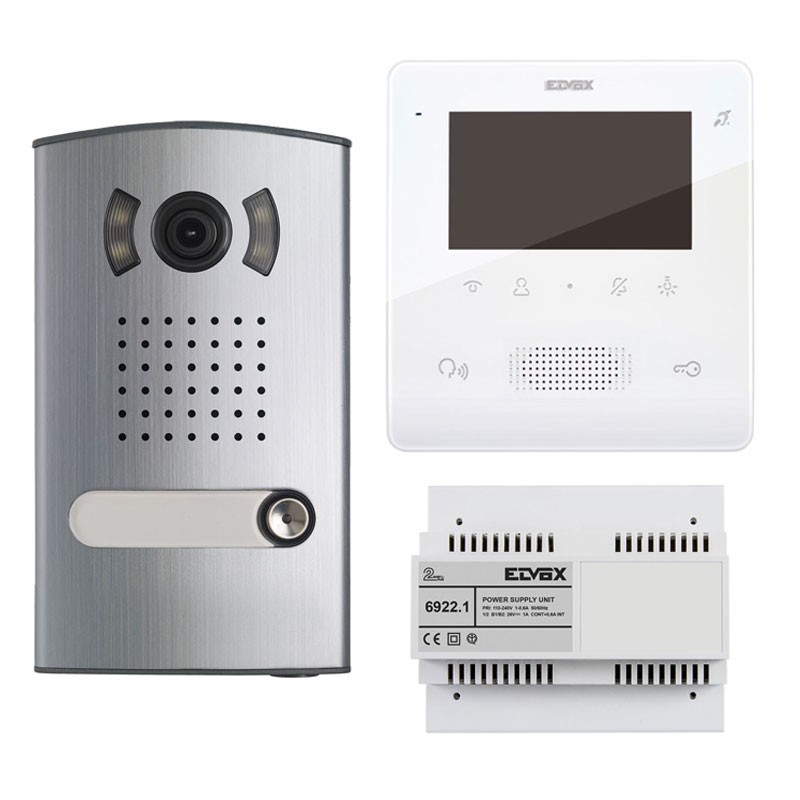

2-Wire Elvox Single-family video door entry kit includes:
- 1 Flush-mounted or wall-mounted push-button panel 1300/E series in anodized aluminium 40151
- 1 Audio/video electronic unit 40135
- 1 Tab Free wall-mounted hands-free video entryphone with 4.3 colour display 7558 white
- 1 Power supply 6922.1.
2-Wire Elvox Single-family video door entry kit with 4.3 hands-free Tab 7558/E
€391.63
Tax included
€391.63
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 54
: 4
Pay in installments with Klarna
KIT components specifications:
40135 Due Fili Pluselectronic unit for colour audio-video entrance panel, with fixed wide-angle 100°/82° horizontal/vertical lens, 1 built-in button, for use in Two-Wire systems
Elvox Tab Free hands-free video door phone, wall-mounted for Two-Wire Plus system, 4.3 in LCD colour display, capacitive keyboard for video door phone functions and programmable rapid function, teleloop for hearing aids, bracket for fixing on rectangular or round box, white
Features:
- Mounting: wall-mounted, with metal bracket, on box: circular 2M (Vimar V71701), 3M (Vimar V71303, V71703) vertical and square British standard
- LCD display 4.3" 16:9, resolution 480x272 pixel
- Minimum level of video signal on the bus in reception: -20 dBm
- Capacitive touch keyboard with backlit symbols
- Power supply from BUS terminals 1, 2 - nominal voltage 28Vdc
- Absorption: in standby: 17 mA - maximum current: 280 mA
- Environmental class: Class A1 (indoor use)
- Degree of protection IP30
- Operating temperature: -5 °C - +40 °C (indoor use)
- Electronic ringer with melody diversification (10)
- Door call input
- Dimensions: 155 x 145 x 23.5 mm
- Dip switch for line impedance termination.
Elvox 6922.1 Two-Wire Plus video door entry power supply unit:
Features:
- 110-240V 50/60Hz 60VA power supply;
- output voltage 30Vdc;
- installation on DIN guide (60715 TH35);
- overall dimensions, 8 modules;
- max output current: (1A continuous + 0.6A intermittent with cycle of 80s ON - 120s OFF).
There are no reviews
Data sheet
- KIT: Video Doorphone Kit
- Model: Single-family house
- System: 2-Wire
