Vimar TAB 5S Up Wi-Fi One or Two-Family Video Door Phone Kit K40515G.01

Vimar
VIW K40515G.01 8007352667976

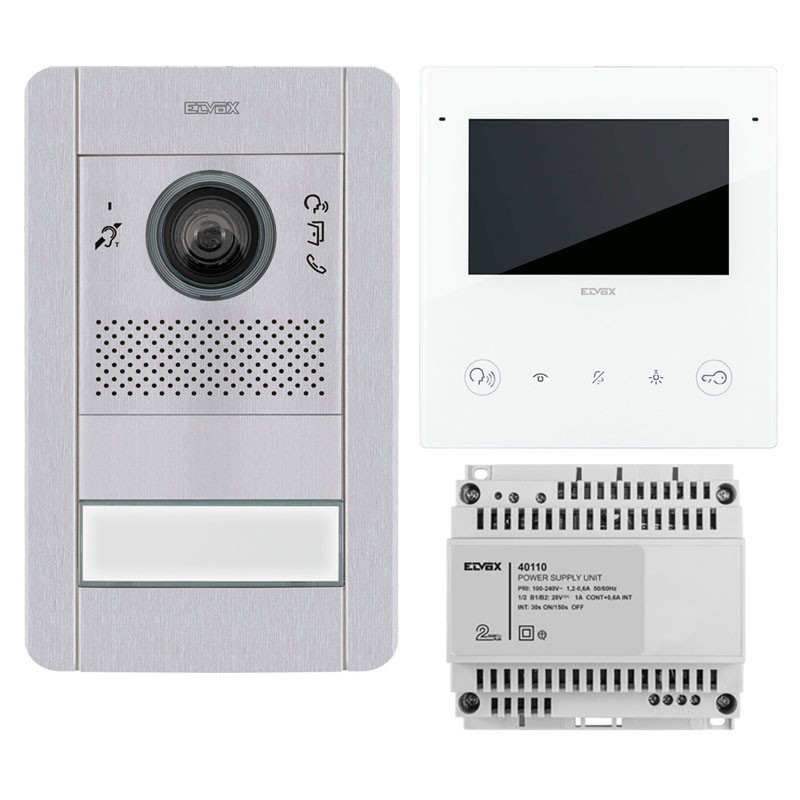

Vimar One or Two-Family Video Doorphone Kit model TAB 5S Up composed of:



  • 1 1300 series wall-mounted or flush-mounted 13K1 pushbutton panel complete with 1 additional R131 button
  • 1 13F2.1 color audio/video electronic unit
  • 1 Tab 5S Up 2F+ Wi-Fi video intercom 40515 white with integrated Wi-Fi
  • 1 2-Wire power supply 40110




2-Wire system, video intercom with built-in Wi-Fi for call repetition on smartphone, ability to recall scenarios of connected VIEW Wireless civil series from the video intercom.



To make it Two-Wire, add only one more video intercom to the Kit.

  • wifi
With the kit you save compared to individually purchased items
Request info about this product

Vimar TAB 5S Up Wi-Fi One or Two-Family Video Door Phone Kit K40515G.01

€680.64 Tax included
€680.64

Vimar TAB 5S Up Wi-Fi One or Two-Family Video Door Phone Kit K40515G.01

€680.64
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 2
logo priority: 2
Altre disponibilità dal produttore
qty

Vimar TAB 5S Up Wi-Fi One or Two-Family Video Door Phone Kit K40515G.01

€680.64

Buy it within and receive it from Tuesday, 23 September
Two-year warranty
Secure Payment
Easy return within 14 days
Purchase with tax breaks

Similar Vimar video intercom kit:

Frequently bought together

Video Intercom Kit Components Specifications:




Support + frame 1M Pixel gray:

  • Pixel 1 module bracket and plate, gray. Dimensions 99.5x161 mm



2F+ A/V teleloop wide-angle unit:

  • Two-Wire Plus electronic unit for audio video license plate, wide-angle color camera, automatic adjustment of field of view illumination, echo suppression, automatic adjustment of audio balance, automatic speaker level control, automatic microphone level control, teleloop for hearing aid, 4 white LED backlit call buttons with twilight illumination management, LED call status indicator, 1 input configurable as external AC door opener button or PA open door, 1 direct opening output for electro lock, to be completed with audio front panel and single, double or hole cover button.



Gray Pixel Teleloop A/V front panel mod:

  • A/V front module, Pixel, for audio/video electronic unit Due Fili Plus 41005, with hearing function and teleloop symbol, gray



Pixel single hole cover gray:

  • Single-hole cover button, Pixel, gray



Recessed box for license plate 1 module:

  • Recessed box for license plate 1 module, supplied with cardboard paramalta cover and spacer for battery installation, light blue. Dimensions 94x143x50 mm

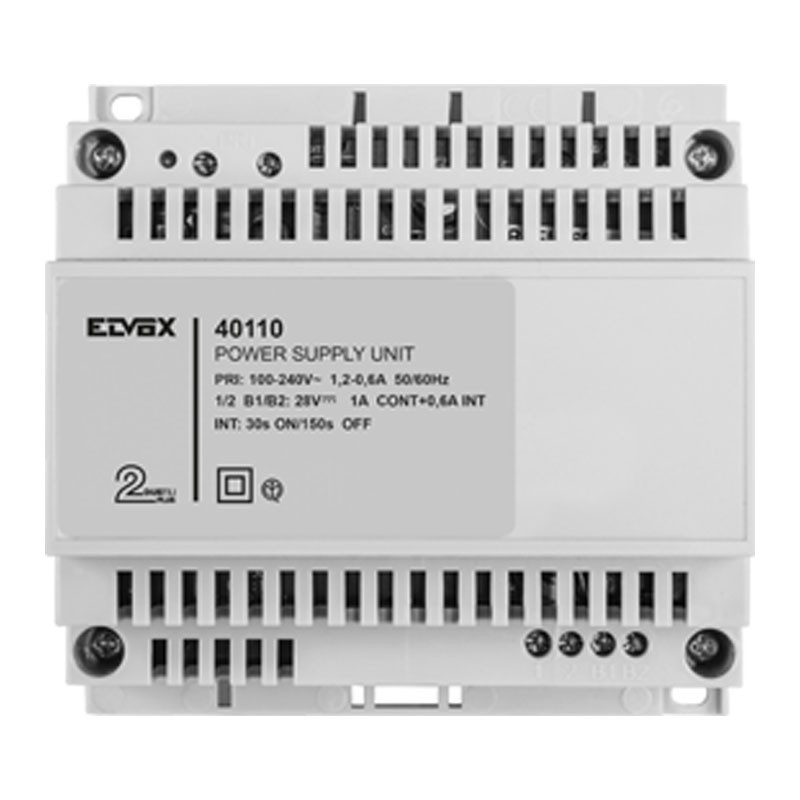

2F+ 100-240V 1 OUT 1.6A power supply:

  • Two-Wire video door phone power supply unit with 28 Vdc output, power supply 100-240 V~ 50/60 Hz, DIN rail installation (60715 TH35), occupies 6 x 17.5 mm modules.

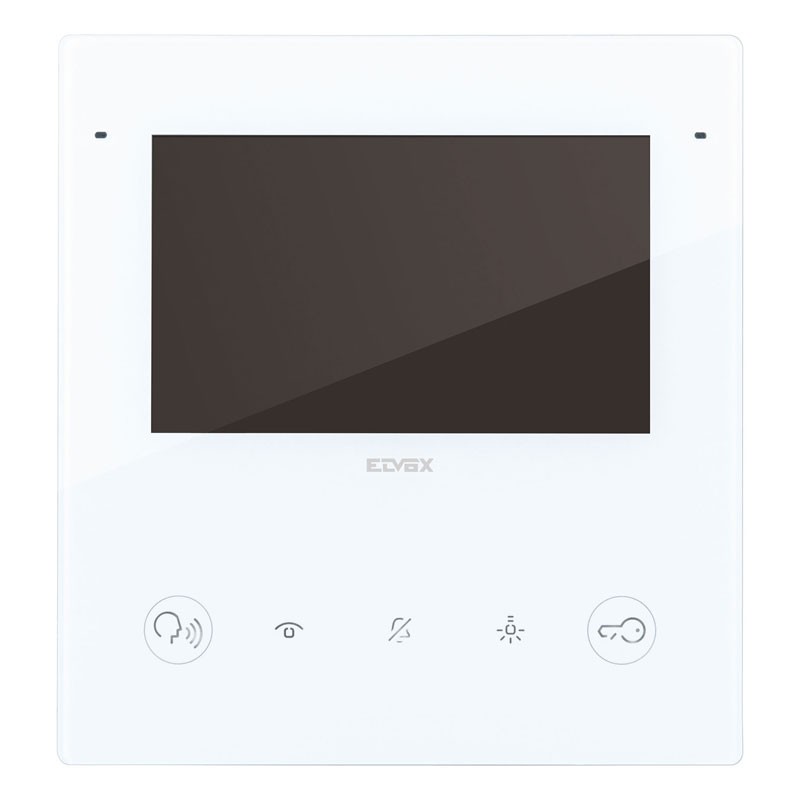

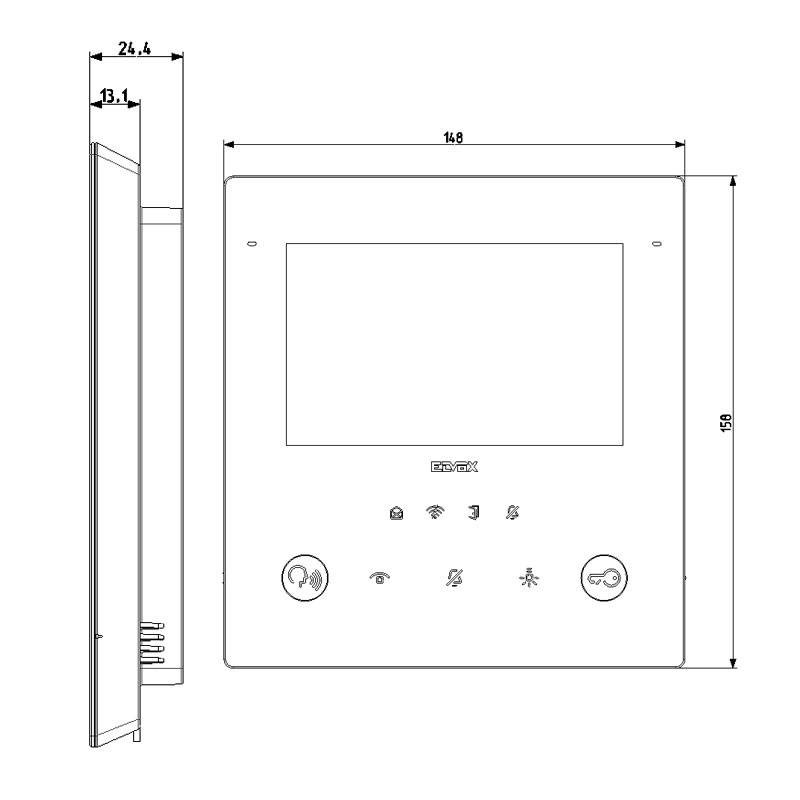

Videointercom 2F+ Wi-Fi Tab5S Up VV White:



Wall-mounted Tab 5S Up hands-free videophone for Two-Wire Plus system, built-in Wi-Fi for call repetition on smartphone with dedicated app, 5-in color LCD touch screen display, capacitive keypad for video intercom functions and intercom calls, video answering machine, teleloop for hearing aids, ability to recall scenarios of VIEW Wireless connected civil series from the videophone, bracket for mounting on rectangular or round box, wall-mounted or semi-recessed installation, white.



  • Connected thanks to built-in Wi-Fi
  • With Video Door app more functions and better control
  • Multi-installation, multi-user and multi-system
  • Also suitable for renovations
  • With Teleloop, visual and audible alerts. Crystal-clear sound and visual feedback confirm activation of functions making it easy to use even for people with low vision or hearing aids
  • Possibility to recall the scenarios of the connected VIEW Wireless civil series from the video intercom

There are no reviews

Data sheet

KIT:
Video Doorphone Kit
Model:
Single-family house
System:
2-Wire
WIFI:
Yes
