Obo T25 outdoor junction box IP66 diameter 80 mm gray 2007029
OBO 2007029
4012195386322

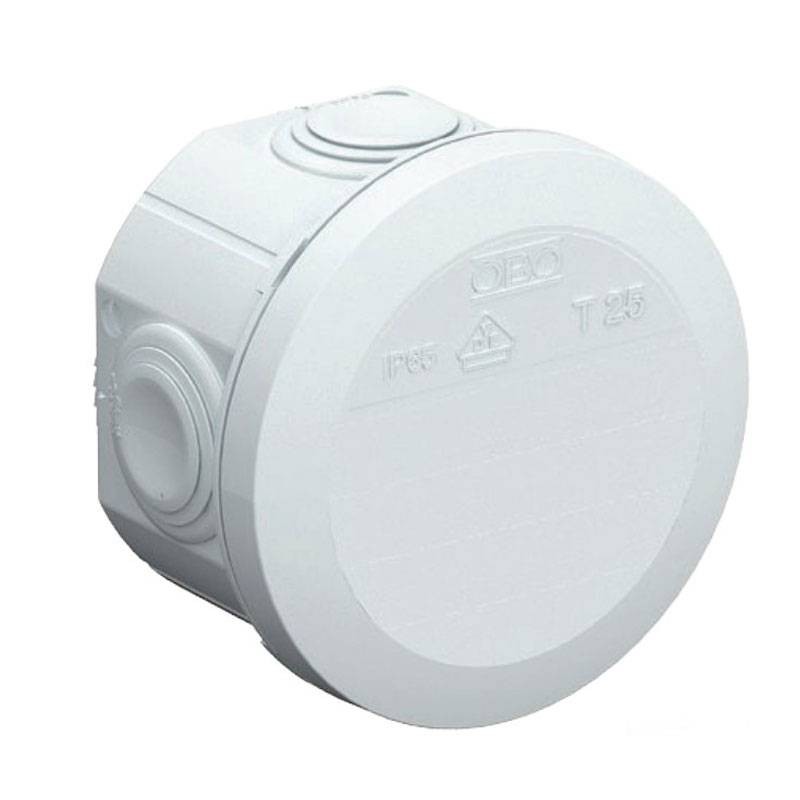

Obo outdoor junction box T25 with the following features:
- Type: T 25
- Material: polypropylene, glass fiber reinforced
- Color: light gray

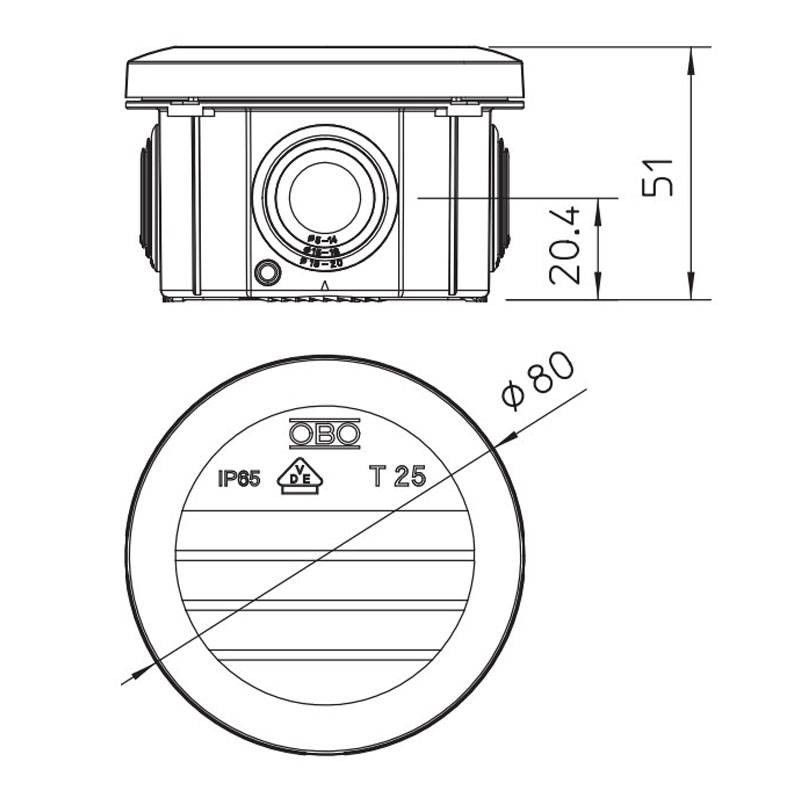

- Diameter: 80 mm
- Rated insulation voltage Ui: 500.00V
- Degree of protection: IP66
- Mounting type: ceiling/wall
- Flameproof according to VDE 0471/DIN 695 part 2-1, test temperature 650°C
Obo T25 outdoor junction box IP66 diameter 80 mm gray 2007029
€1.21
Tax included
€1.21
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 306
: 45
Pay in installments with Klarna
T-series junction boxes are UV-resistant. They are made of polypropylene, a type of thermoplastic plastic, with plug-in gaskets made of ethylene vinyl acetate EVA. This type of plastic is soft, which means it is malleable. For this reason, cables can be introduced directly through the 4 x M25 gaskets, or the gaskets can be cut with a knife at the intended locations to create an introduction opening for cables and pipes. As a result, cable glands can be inserted instead of the gaskets through the holes and attached to them with the help of a locknut.
The junction boxes can be screwed either on an M6 thread or fixed through the openings at the bottom of the box for 3.5 x 9.5 screw on mounting plates.
Junction box for connecting cables and lines in indoor and protected outdoor environments. Rectangular shape without entrances. Suitable for mounting on walls and ceilings, mounting on mounting plates and threading in the floor. With the possibility of internal fixing and mounting on corner sections. Lid with quick closure, plumbable. Constructed of halogen-free materials. Junction box in accordance with DIN EN 60670. Flame-retardant to DIN EN 60695-2-11, test temperature 650 °C. Impact resistance IK05 in accordance with DIN EN 50102.
All T-series cable junction boxes are UV-resistant. They are manufactured from polypropylene (a thermoplastic material) and have closed side walls. The necessary openings can be created in any position. EDK plug-in seals or cable glands with locknuts can be inserted into the openings to introduce cables. Junction boxes can be fixed on mounting plates through the openings in the bottom. Lid with marking field and possibility of sealing.
Data sheet
- Shape: Round
- Version: Standard
- Degree of protection: IP66
