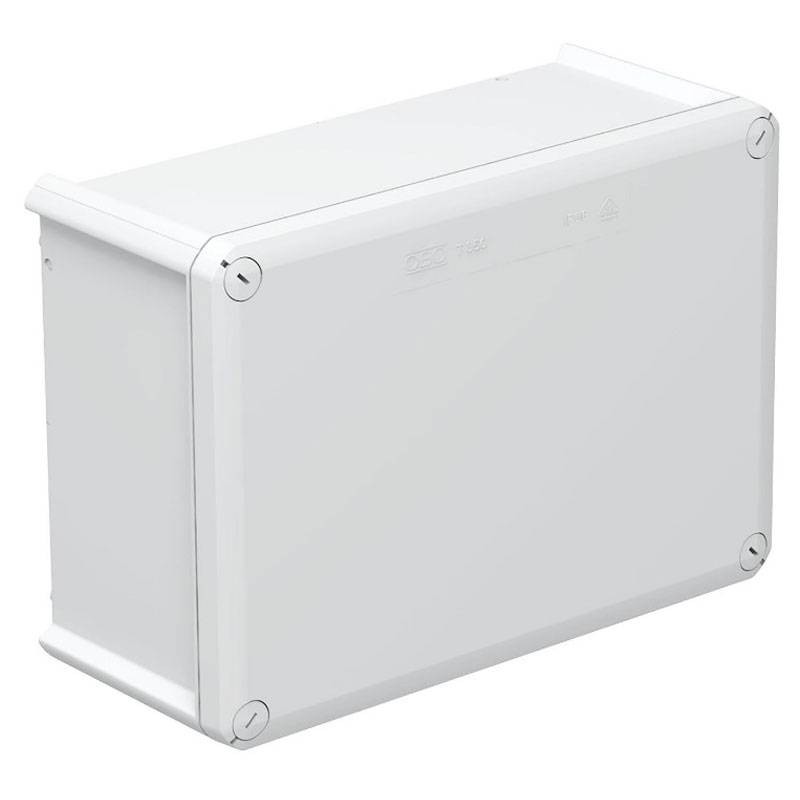

Obo T350 OE outdoor junction box smooth IP66 267x182x110 mm 2007303
OBO 2007303
4012195386704
Obo T350 OE outdoor smooth junction box with the following features:
- Type: T 350 OE
- Material: polypropylene, glass fiber reinforced
- Color: light gray

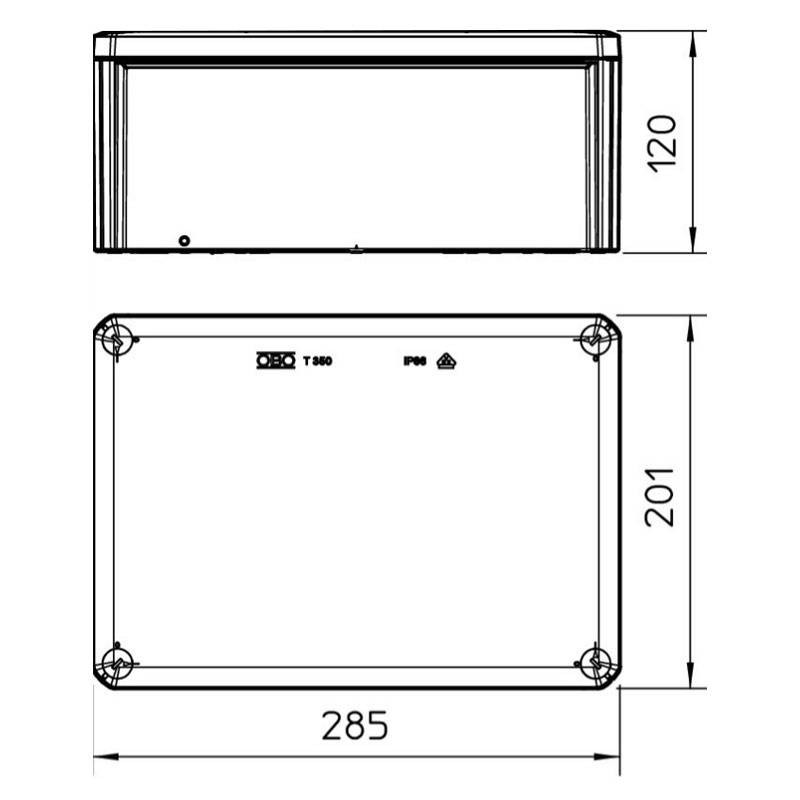

- Dimensions: 267x182x110 mm
- Rated insulation voltage Ui: 500.00V
- Degree of protection: IP66
- Mounting type: ceiling/wall
- Flameproof according to VDE 0471/DIN 695 part 2-1, test temperature 750°C
Obo T350 OE outdoor junction box smooth IP66 267x182x110 mm 2007303
€25.17
Tax included
€25.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 176
: 34
Pay in installments with Klarna
Junction box for connecting cables and lines in indoor and protected outdoor environments. Rectangular shape without entrances. Suitable for mounting on walls and ceilings, mounting on mounting plates and threading in the floor. With the possibility of internal fixing and mounting on corner sections. Lid with quick closure, plumbable. Constructed of halogen-free materials. Junction box in accordance with DIN EN 60670. Flame-retardant to DIN EN 60695-2-11, test temperature 650 °C. Impact resistance IK05 in accordance with DIN EN 50102.
All T-series cable junction boxes are UV-resistant. They are manufactured from polypropylene (a thermoplastic material) and have closed side walls. The necessary openings can be created in any position. EDK plug-in seals or cable glands with locknuts can be inserted into the openings to introduce cables. Junction boxes can be fixed on mounting plates through the openings in the bottom. Lid with marking field and possibility of sealing.
There are no reviews
Data sheet
- Shape: Rectangular
- Version: Standard
- Degree of protection: IP66
