OMNIA S HYBRID C 3.2 hybrid heat pumps integrate environmentally friendly R32 heat pump and condensing boiler technology with instantaneous domestic hot water production into one compact product. The environmentally friendly R32 gas manages to marry high efficiency with low environmental impact. Thanks to its GWP of 675, about one-third the GWP of R410a, it helps reduce equivalent CO2 emissions, the main causes of global warming.

Ferroli Hybrid systems, are the ideal solution for replacing old generators, even on high-temperature systems with radiators, thanks to the integration of the boiler. The compact dimensions similar to those of a wall-mounted boiler facilitate their replacement without significant loss of space or heavy renovation work.

The internal electronics, activating the boiler or heat pump as weather conditions change, optimizes the system's performance by always working in the most economical and efficient modes possible, with great benefits for the user. The boiler will be free to produce instant domestic hot water even while the heat pump is operating in heating or cooling mode, maximizing comfort levels. In addition in the unlikely event there is a blockage of the heat pump, the boiler will be able to run backup independently, providing heating and domestic hot water.

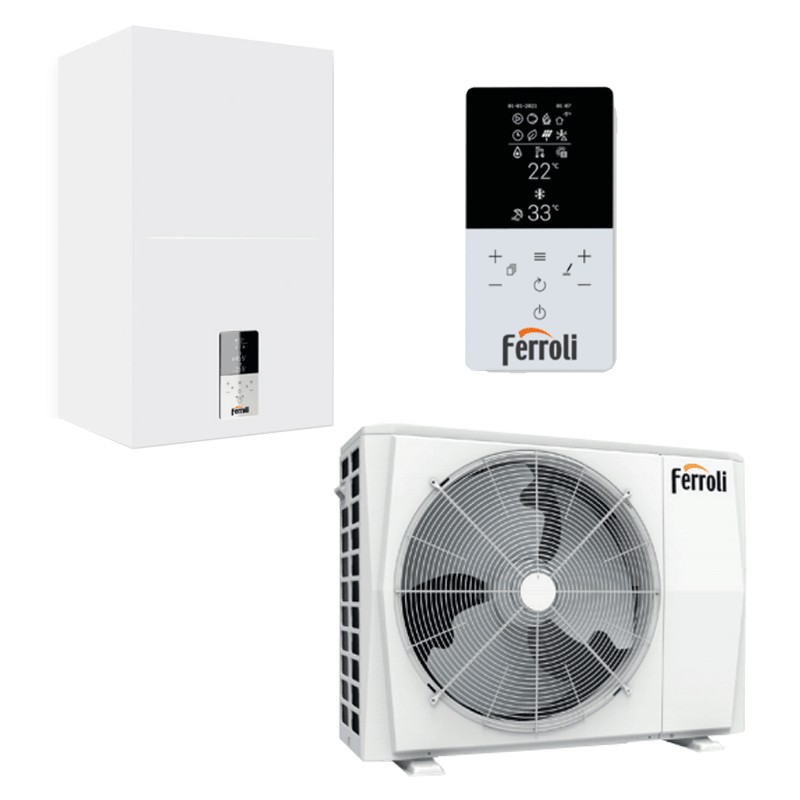

The system consists of a Full Inverter DC outdoor unit, available in 4 power sizes, combined with a hybrid and condensing indoor unit with an integrated hydronic module, complete with a DC Inverter pump to manage the cooling circuit. The system is extremely versatile, able to work in cold weather conditions down to -20°C outside avoids freezing risks thanks to the split refrigerant circuit. Wall flue exhaust in the cases provided for by Legislative Decree No. 102 of July 4, 2014.

Outdoor unit features:

• Approved for outdoor operation in a completely uncovered location.
• Powered by environmentally friendly R32 gas with low environmental impact
• Low starting current and low noise thanks to full inverter technology
• Compressor with twin rotary type DC INVERTER motor on anti-vibration mounts and wrapped with a double layer of sound-absorbing material to minimize vibration and noise
• Axial fans with brushless DC motor complete with protective grilles
• Outdoor air temperature probe already installed on the unit



Indoor unit features:

• Robust and also suitable for replacements in particularly critical installations
• Combustion module with 1:10 modulation and thick stainless steel exchanger with increased passages capable of maintaining high efficiency even on old systems with oxidation and dirt
• Supplied as standard with flow and return system angle taps (with inspectable filter)
• M.G.R: Methane, LPG, Propane Air Ready, with a simple configuration of the indoor unit is able to run on methane, LPG and propane air without the use of additional kits - MC2: Multi Combustion Control, combustion system with patented gas-adaptive technology for better adaptability of use to changing gas network conditions (e.g., fluctuations or reduced pressures)
• F.P.S: Flue Protection System. Standard flue gas clapet valve allows easy connection to pressurized collective flue systems.
• Particularly suitable for operation in flues that require heavy ducting due to the approval for operation with 50mm diameter flue discharges
• Installation location: also for outdoor use in a partially protected location down to -5°C as standard



Control system:

• The interface is equipped with Capsense technology with 2.8 graphic display, which allows the user to interact with the product in a simple and convenient way. The on-board interface easily communicates with the new Connect CRP intelligent systems, which can manage up to 8 thermostats (including 7 Connect CRP Zones) divided into 2 zones, one direct and one mixed
• MODBUS PROTOCOL for intelligent management via any external BMS
• HEATING AND COOLING with Ferroli's Full Inverter modulation that allows the setting of climate curves to improve consumption and comfort to the user
• INPUT SMART GRID FROM PHOTOVOLTAIC AND NETWORK Smart Grid contacts for optimizing consumption and costs in the bill. For details, please read the manuals
• REMOTE CONTROL VIA APP. Optional with the Connect CRP, available for iOS and Android
• SILENT PDC MODE. Reduces the maximum compressor frequency and fan speed to significantly reduce noise
• ON/OFF and SUMMER/WINTER from external contacts. The unit can be turned on and off by an external contact, also receiving summer/winter switching signals (e.g., from the zone thermostat). Operation will follow the settings of the controller
• ECO. Dedicated setpoint for Eco operation. Can be set with daily time slot
• WEEKLY TIME SCHEDULING. Connect CRP (optional) enables differentiated time scheduling for each day of the week by defining the mode (COLD/HOT/ACS) and working setpoints for each band



Specifications OMNIA S 3.2 HY C:

• ERP class in heating / Medium temperature seasonal efficiency (produced water 35°C) A+++/195
• ERP class in heating/seasonal efficiency low temperature (produced water 55°C) A+++/138
• SCOP (low temperature 35°C) W/W 4.95
• SEER (produced water 7°C) W/W 5.34
• Power supply V-ph-Hz 220/240-1-50
• Type and no. of compressors - 1 x Twin Rotary DC
• Type of exchanger plant side / source side - brazed stainless steel plates / finned coil
• Type of fans / nr. of fans - brushless DC / 1
• Refrigerant connections - liquid line Ø 1/4 SAE / Ø 6.35
• Refrigerant connections - gas line Ø 5/8 SAE / Ø 15.88
• Expansion tank volume indoor unit L 8
• SWL - Sound power level outdoor / indoor unit dB(A) 58/43
• Weight outdoor / indoor unit kg 58 / 28



Performance Omnia S 3.2 HY C

• Max / min heating capacity (Hs) kW 27.2 / 3.2
• Max / min heating capacity (80/60°C) kW 24 / 2.8
• Max / min heating heat output (50/30°C) kW 26 / 3.1
• Max / min heating capacity domestic (Hi) kW 28.5 / 2.9
• Heat output max / min sanitary kW 28.0 / 2.8
• Efficiency Pmax / Pmin (80-60°C) (Hi) % 98.1 / 98
• Efficiency Pmax / Pmin (50-30°C) (Hi) % 106.1 / 107.5
• Efficiency 30% (Hi) % 109.7
• Max / min heating operating pressure bar 3 / 0.8
• Max / min sanitary operating pressure bar 9 / 0.3
• Sanitary flow rate ?t 25°C / 30°C l/min 16.1 / 13.4



Connections:

• Gas inlet - Ø 3/4
• 8 Sanitary water outlet - Ø 1/2
• 9 Sanitary water inlet - Ø 1/2
• 10 System flow - Ø 3/4
• 11 System return - Ø 3/4
