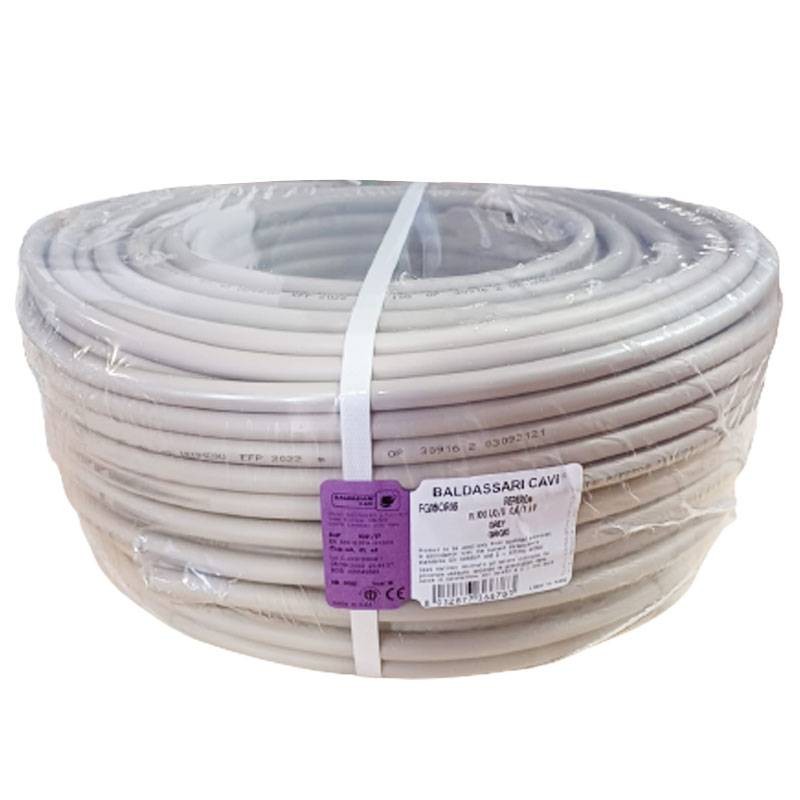

Double Insulated Flameproof Cable FG16OR16 2X2 mmq
9X9 FG16R2X2,5M
Double insulated flameproof cable FG16OR16 section 2X2 mmq with the following characteristics :
- Rated voltage Uo/U: 0.6/1 kV
- Maximum operating temperature: 90°C
- Minimum operating temperature: -15°C (in the absence of mechanical stress)
- Minimum laying temperature: 0°C
- Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
- Maximum tensile stress: 50 N/mm2
- Minimum bending radius: 4 times the maximum outer diameter
100-meter coil.
Double Insulated Flameproof Cable FG16OR16 2X2 mmq
€1.26
Tax included
€1.26
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1500
: 160
Pay in installments with Klarna
Multi-core power cable insulated with high-modulus ethylpropylene rubber of G16 quality, under PVC sheath, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).
Conditions of use: Cables suitable for power supply in buildings and other civil engineering works with the aim of limiting the production and spread of fire and smoke. For use indoors in even wet rooms or outdoors (AD7). Suitable for fixed installation on masonry and metal structures in free air, in pipe or duct or similar systems. Also permitted for underground installation. Good resistance to industrial oils and greases (ref. CEI 20-67).
Characteristics:
- Conductor: flexible annealed red copper rope, class 5
- Insulation: high modulus ethylpropylene rubber compound of G16 quality
- Filler: compound of non-hygroscopic material
- Outer sheath: PVC compound of R16 quality
- Core color: HD 308 standard
- Sheath color: gray
There are no reviews
Data sheet
- Colour: Grey
- Section: 2mmq
- With yellow/green: No
- Number of cables: 2
