Double Insulated Flameproof Cable FG16OR16 2X4 mmq

Cavi
9X9 FG16R2X4M

Double insulated flameproof cable FG16OR16 cross section 2X4 sq mm with the following characteristics:

  • Rated voltage Uo/U: 0.6/1 kV
  • Maximum operating temperature: 90°C
  • Minimum operating temperature: -15°C (in the absence of mechanical stress)
  • Minimum laying temperature: 0°C
  • Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
  • Maximum tensile stress: 50 N/mm2
  • Minimum bending radius: 4 times the maximum outer diameter

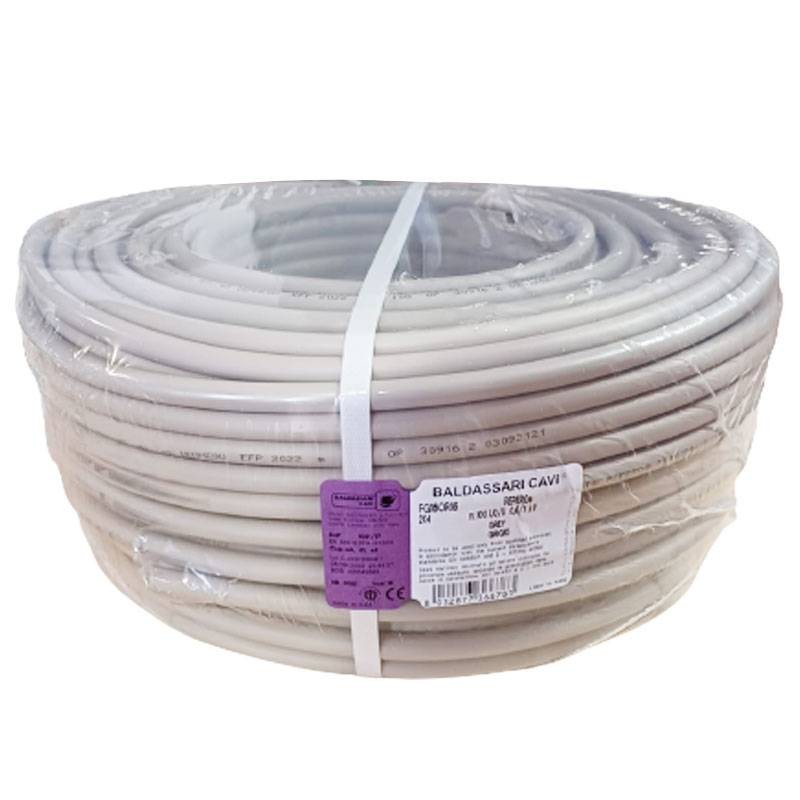

100-meter coil.


Request info about this product

Double Insulated Flameproof Cable FG16OR16 2X4 mmq

€1.77 Tax included
€1.77

Double Insulated Flameproof Cable FG16OR16 2X4 mmq

The minimum purchase order quantity for the product is 100.

€1.77
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 1300
logo priority: 2080
Altre disponibilità dal produttore
qty

Double Insulated Flameproof Cable FG16OR16 2X4 mmq

€1.77

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Wednesday, 17 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Multi-core power cable insulated with high modulus ethylpropylene rubber of G16 quality, under PVC sheathing, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).

Conditions of use: Cables suitable for power supply in buildings and other civil engineering works with the aim of limiting the production and spread of fire and smoke. For use indoors in even wet rooms or outdoors (AD7). Suitable for fixed installation on masonry and metal structures in free air, in pipe or duct or similar systems. Also permitted for underground installation. Good resistance to industrial oils and greases (ref. CEI 20-67).


Characteristics:

  • Conductor: flexible annealed red copper rope, class 5
  • Insulation: high-modulus ethylpropylene rubber compound of G16 quality
  • Filler: compound of non-hygroscopic material
  • Outer sheath: PVC compound of R16 quality
  • Core color: HD 308 standard
  • Sheath color: gray

Additional data:

  • Approximate conductor diameter: 2.5 mm
  • Average insulation thickness: 0.7 mm
  • Average sheath thickness: 1.8 mm
  • Approximate production diameter: 11.3 mm
  • Approximate cable weight: 207 kg/km
  • Max electrical resistance at 20°: 4.95 ohm/km
  • Current carrying capacity: in air pipe 30° 40A - in buried pipe 20° 39A

There are no reviews

Data sheet

Colour:
Grey
Section:
4mmq
With yellow/green:
No
Number of cables:
2
