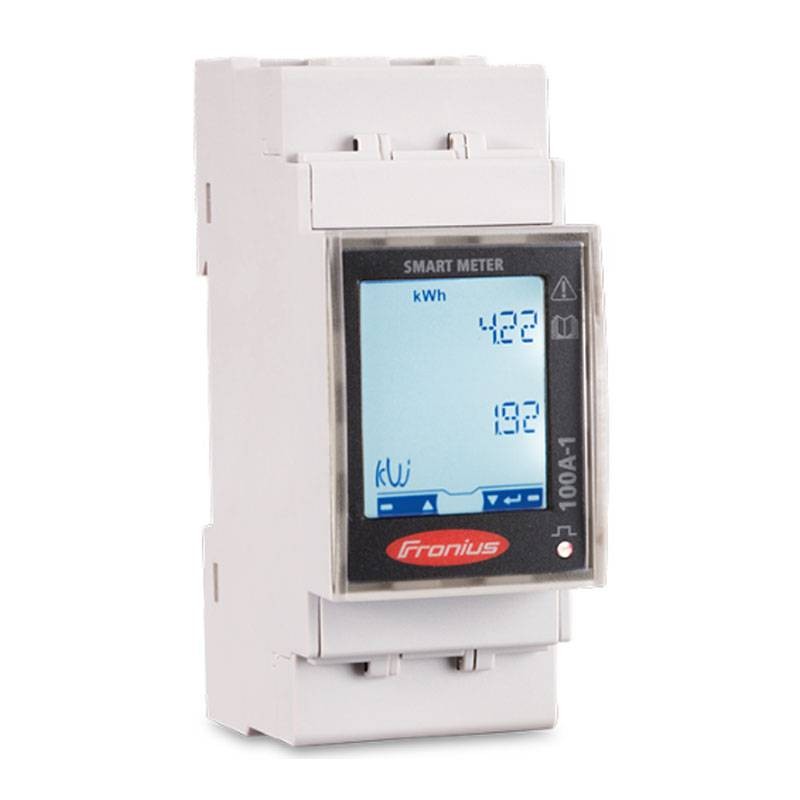

Fronius Smart Meter TS 100A-1 42.0411.0344
FRO 42.0411.0344
9000012468233
Fronius Smart Meter, model TS 100A-1 bidirectional meter for detecting household current consumption:
- Rated voltage 230V
- Max. current 100 amps
- Section of current path connections 1-25mm²
- Cross section of communication and neutral conductor connections 0.05mm²
- Self-consumption 1 Watt
- Starting current 40 mA
- Accuracy class 1
- Overload (for short time) 3000A@10ms
- Working range -25 bis +65°C
Fronius Smart Meter TS 100A-1 42.0411.0344
€99.50
Tax included
€99.50
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Overview:
Fronius Smart Meter is a bidirectional meter that optimizes self-consumption, senses the load curve of the household grid, and controls various energy flows. In the presence of power constraints, the high measurement accuracy and fast communication of the Modbus RTU interface enable faster and more accurate dynamic adjustment of fed energy than S0 meters.
Together with Fronius Solar.web, Fronius Smart Meter enables clear and concise display of self-consumption of power. In Fronius storage solutions, Fronius Smart Meter ensures perfectly harmonized management of various energy flows, thus optimizing the entire energy management. Fronius Smart Meter is perfect for use with Fronius GEN24 Plus inverters and all Fronius inverters equipped with Fronius Datamanager 2.0.
Features:
- Dimensions/width 35.8 mm - Dimensions (height) 91.5 mm - Dimensions (depth) 63 mm
- Weight 0.16 kg
There are no reviews
Data sheet
- Type: Accessories
