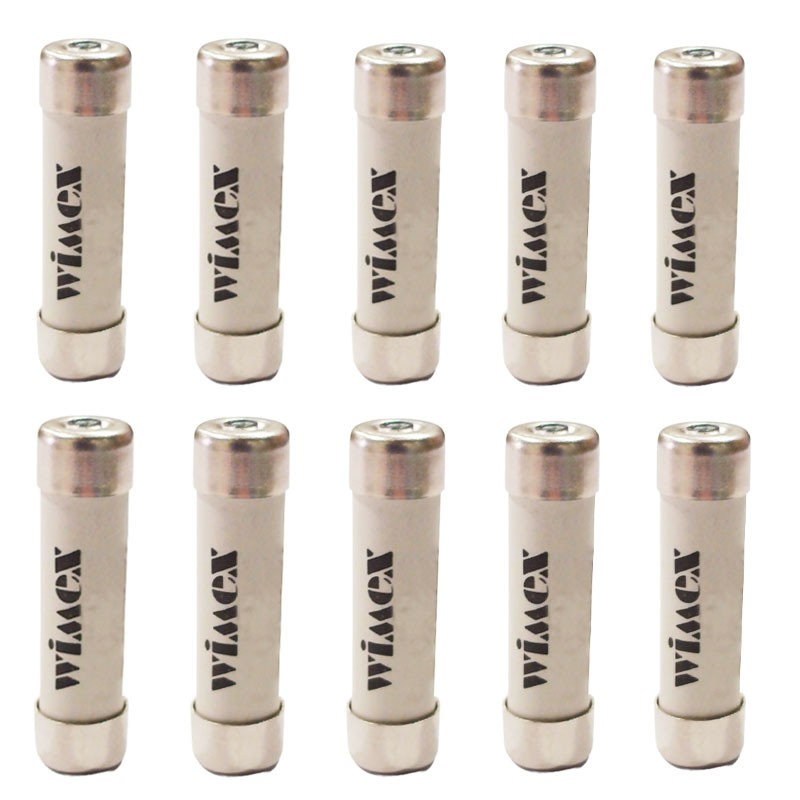

Wimex FC fuse gG 4A FC1 9x36 mm 400V 10 pieces 5100020 5100104
WIM 5100104
8025241112161
Wimex FC gG fuse with the following characteristics:
- Rated voltage: 400V
- Ge breaking capacity: 20 KA
- 4 amperes
- With melting indicator
- Compliant with standards: CEI EN 60269.1 - CEI EN 60269.3
- Size: FC1 9x36 mm
Pack of 10 pieces.
Wimex FC fuse gG 4A FC1 9x36 mm 400V 10 pieces 5100020 5100104
€1.23
Tax included
€1.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 50
: 5
Pay in installments with Klarna
FC cylindrical fuses are mainly intended for civil or similar use and up to 400V also find use in industrial installations. They are widespread in the Italian market for combined use with circuit breakers for domestic protection and in countries influenced by Italian industry.
A design feature that differentiates them from other types of cylindrical fuses is the presence in the standard execution of the melt indicator, which allows the state of the fuse to be displayed very quickly. The breaking capacity is greater than 50 KA and the gG tripping characteristics correspond to those required by the standards.
There are no reviews
Data sheet
- Type: Cylinder fuses
- Size: 9X36
- Voltage: 400V
- Power: 20KA
- Amps: 4A
- Material: Ceramic
