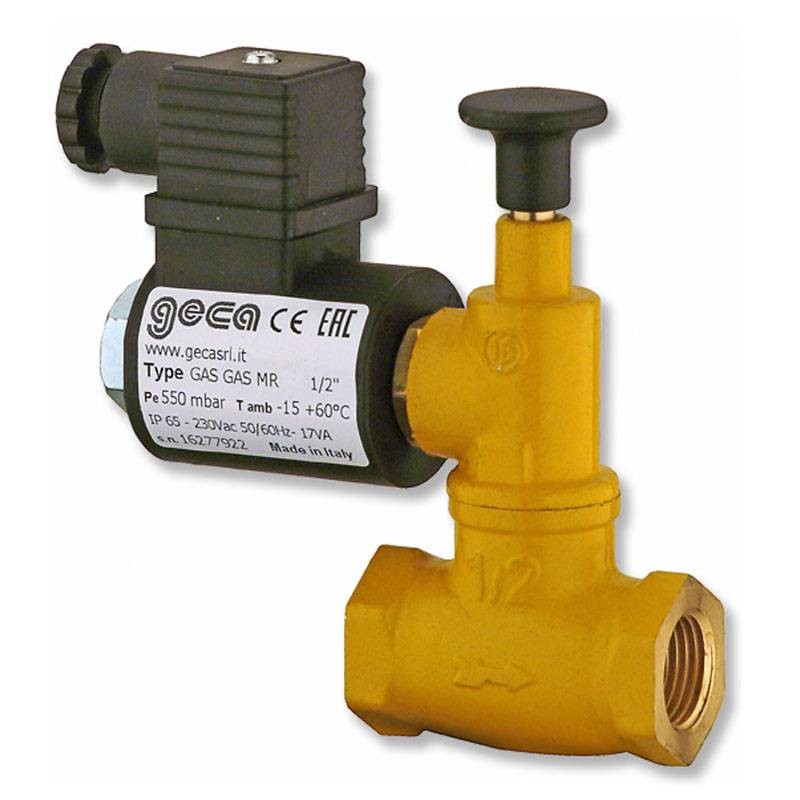

Geca Gas Solenoid Valve 1/2" 550MBA NA 230V 36700450
GEC 36700450
8028399003596
Geca Gas Solenoid Valve:
- 1/2" connection
- Maximum operating pressure: 550 m bar
- Power supply: 230 Vac
- Flow rate 4.5 (mc/H)
- Power 17VA
Designed to be combined with any gas or carbon monoxide detection system that provides, in case of alarm, a signal to shut off the main supply.
Installed on the supply pipe and connected to a gas or Co detector, they shut off the gas flow following a hazardous situation.
Geca Gas Solenoid Valve 1/2" 550MBA NA 230V 36700450
€37.79
Tax included
€37.79
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 2
Pay in installments with Klarna
The solenoid valve is normally placed after a filter, outside the measuring environment and upstream of the regulating devices. It should be installed with the arrow (indicated on the body) pointing toward the user. Reset is achieved by pulling the knob axially upward.
Features:
- Body: brass painted yellow (methane yellow) RAL 1018
- Operating temperatures: -15°C / +70°C
- Closing time: < 1 sec
- Degree of protection: IP65
- Connections: threaded according to ISO 228/1
- Dimensions Height 120mm - Width 60mm
There are no reviews
Data sheet
- Type: GAS solenoid valves
- Hoses: 1/2
