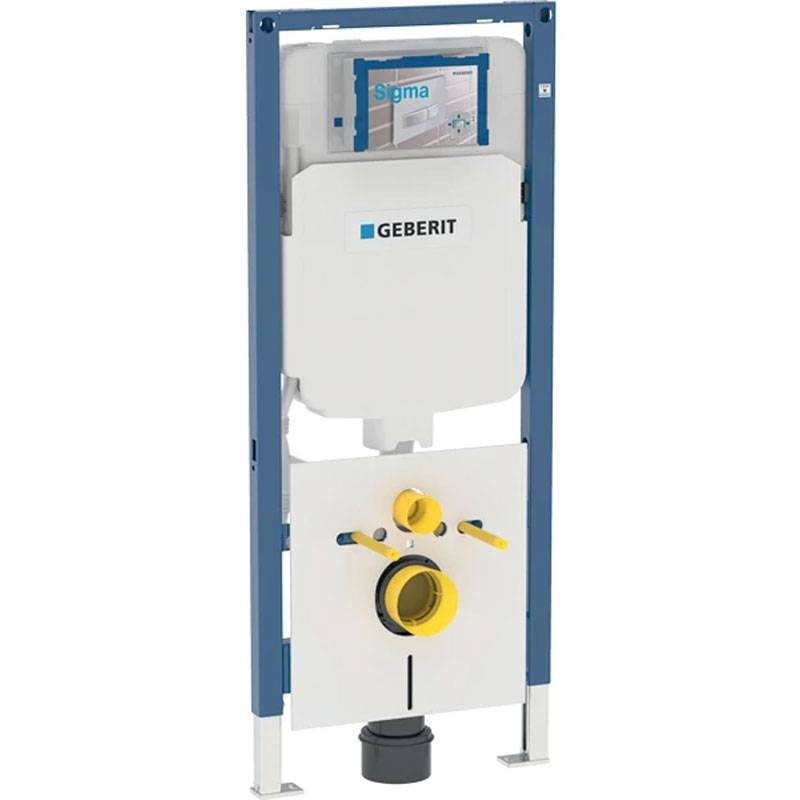

Geberit Duofix module with Sigma8 flush for wall-hung toilet 114 cm 111.795.00.1
GEB 111.795.00.1
4025416520641
Geberit Duofix module for wall-hung toilet, 114 cm, with Sigma 8 cm flush cistern:
- Dynamic pressure 0.1-10 bar
- Maximum water temperature 25 °C
- Default setting rinse quantity 6 and 3 liters
- Long rinse adjustment range 4.5 / 6 / 7.5 liters
- Short rinse adjustment range 3-4 liters
Geberit Duofix module with Sigma8 flush for wall-hung toilet 114 cm 111.795.00.1
€266.39
Tax included
€266.39
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 64
Pay in installments with Klarna
Frequently bought together

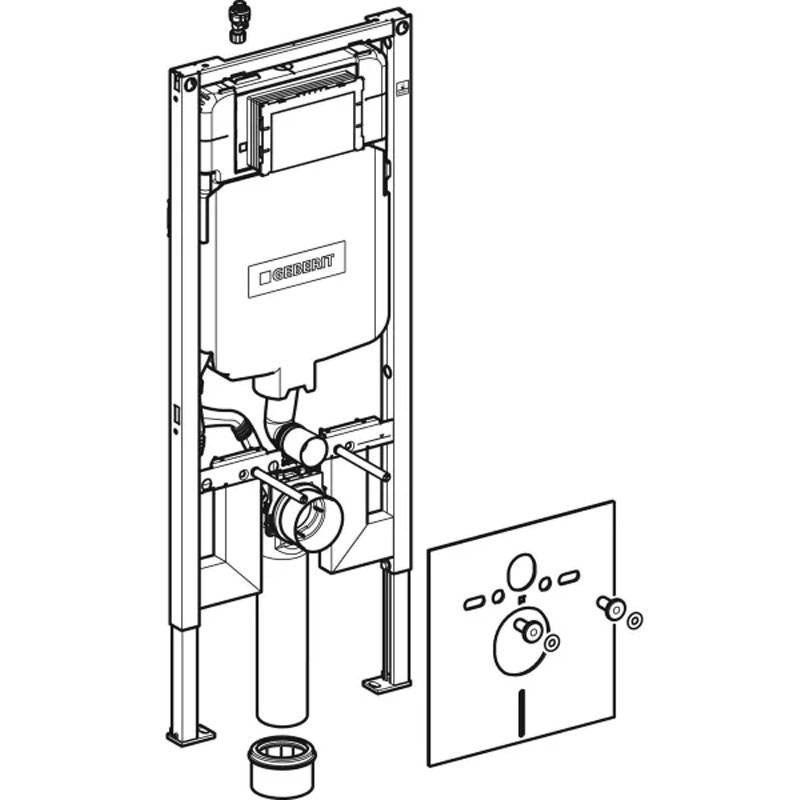

Materials supplied:
- R 1/2" water connection, MF compatible, with integrated stopcock and knob
- Site protection with opening for inspection
- Toilet connection set, ø 90 mm
- Technical 90° bend in PE-HD, ø 90 mm
- PE-HD connection sleeve, ø 90/110 mm
- 2 protective caps
- 2 M12 threaded rods
- Decoupling set
- Fixing material
Properties:
- 2016 series
- Self-supporting powder-coated frame
- Frame suitable for vessels with small contact area (with compression-resistant wall covering)
- Galvanized ground supports
- Ground supports continuously adjustable in height
- Base plate depth, suitable for installation in UW 50 profiles and Geberit Duofix system rails
- Technical curve mountable without tools in various depth positions
- Sound-insulated fastening for technical curve
- Flush-mounted flush cistern with front operation
- Built-in flush cistern insulated against condensation
- Installation and maintenance work on the tool-free flush-mounted flush cistern
- Top left-hand water connection
- Site protection with shortenable inspection opening, suitable for flush-wall control plates
- With pipe liner for water supply pipe for connection of Geberit AquaClean bidet bowls
- Fastener for electrical connection.
Intended use:
- For lightweight plasterboard construction
- For mounting in installations applied in front of the wall at partial or full height
- For mounting in installation walls at full height
- For wall-hung toilets with connection dimensions according to EN 33:2011
- For wall-hung toilets with high projection up to 75 cm
- For one-quantity flushing, two-quantity flushing or flushing with interruption option
- For floor heights 030 cm.

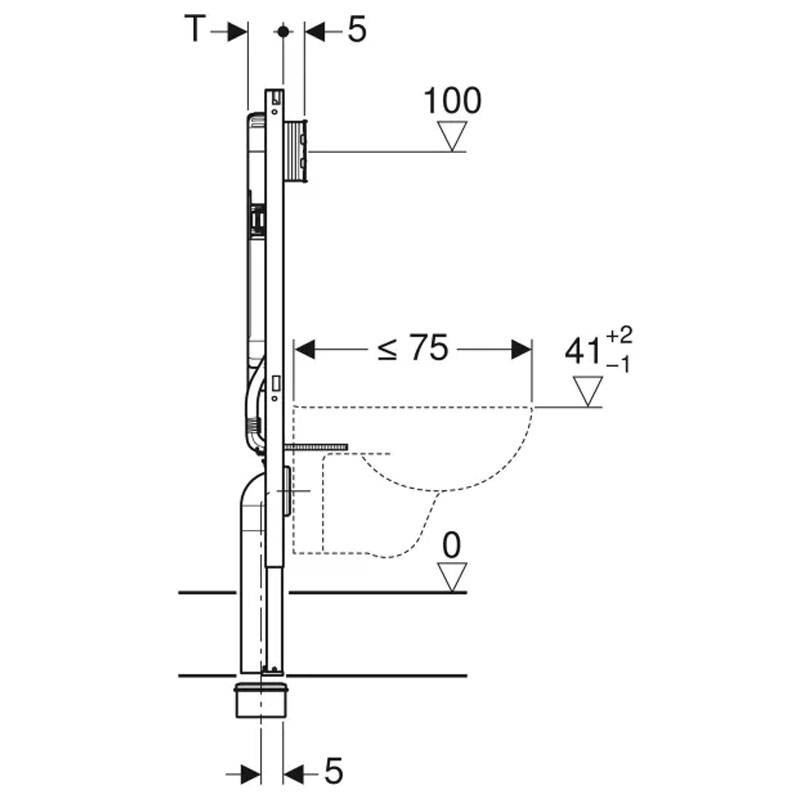

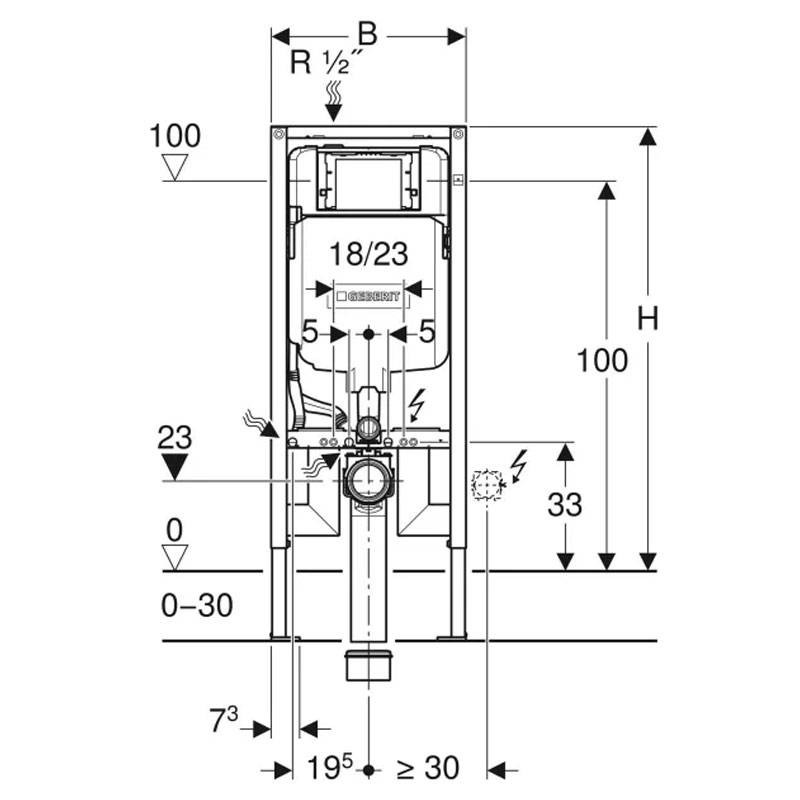

Dimensions: Height 114 cm - Width 50 cm - Thickness 8 cm.
