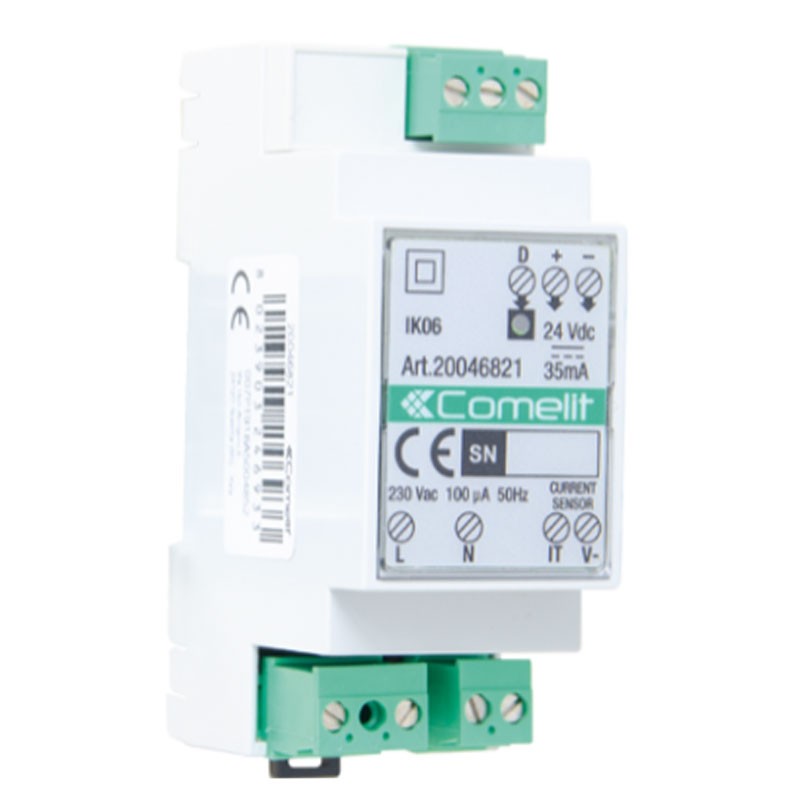

Comelit Simplehome module to manage loads and consumption, on DIN 20046821

Comelit
Comelit
COE 20046821 8023903246933

Comelit SimpleHome module, with the following features:

  • Suitable for managing loads and consumption
  • Maximum measurable power: 10 KW
  • Supplied with an external CT (internal diameter 12mm)
  • Dimensions 36x90x58mm (2 DIN modules)
  • Absorption max 35mA
  • Mounting on DIN rail
  • Operating temperature (°C): 5 ÷ 40
  • Maximum power load control: 10000(mW)

Request info about this product

Comelit Simplehome module to manage loads and consumption, on DIN 20046821

€168.95 Tax included
€168.95

Comelit Simplehome module to manage loads and consumption, on DIN 20046821

€168.95
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 3
logo priority: 1
Altre disponibilità dal produttore
qty

Comelit Simplehome module to manage loads and consumption, on DIN 20046821

€168.95

Buy it within and receive it from Thursday, 13 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other features:

  • To be connected to the BUS for measuring the electrical power absorbed or produced in a single-phase 230Vac system.
  • For three-phase systems use a 20046821 module for each phase.
  • Possibility of programming the release of 8 loads connected on SimpleHome modules as a result of exceeding a predefined power threshold.
  • Combined with compatible supervisors, it allows consumption or production data to be displayed in graphs and tables.
  • Compatibility: home automation system
