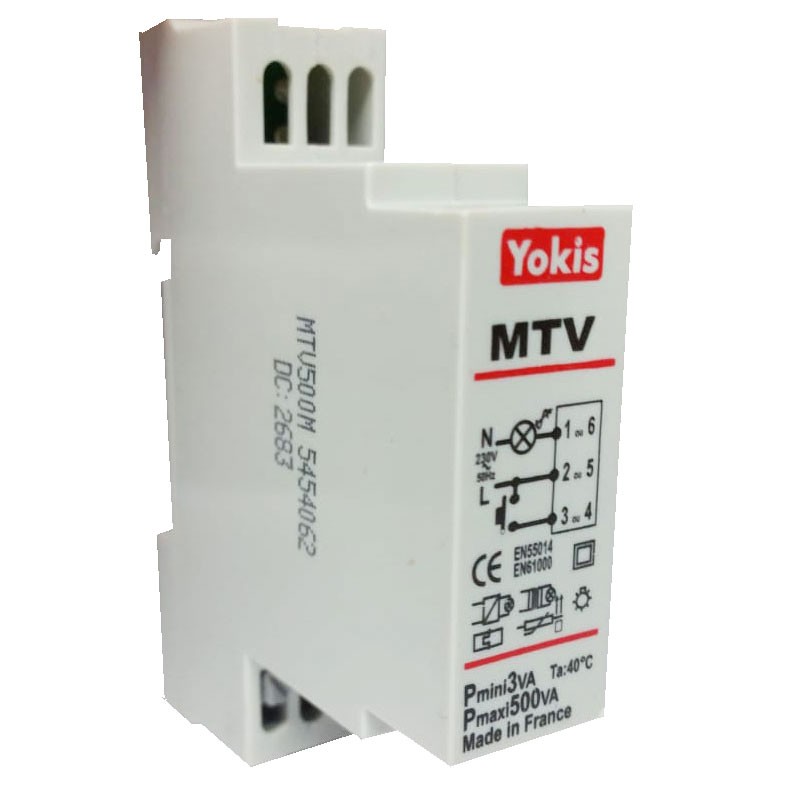

Dimmer Urmet Yokis MTV500M DIN 5454062
UTD 5454062
3760054540620
Dimmer Urmet Yokis MTV500M DIN Works with commands of any civil series, Compatible with incandescent lamps and dichroic lamps with a transformer ferromagnetic or electronic, Allows the use of more buttons in parallel (circuit switch, or with the inverters), the Functions of Soft start and soft stop for unaccensione and one-off cakes. Thanks to the possibility to reduce the brightness, enables a significant dollar savings.
Dimmer Urmet Yokis MTV500M DIN 5454062
€57.08
Tax included
€57.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
Pay in installments with Klarna
Dimmer Urmet Yokis MTV500M DIN Works with commands of any civil series, Compatible with incandescent lamps and dichroic lamps with a transformer ferromagnetic or electronic, Allows the use of more buttons in parallel (circuit switch, or with inverters),
Functions Soft start and soft stop for a switched on and off sweet. Thanks to the possibility to reduce the brightness, enables a significant dollar savings. Keeping the button pressed, it is possible to vary the brightness from 3% to 100%, loads of from 5 to 500W.
Double memory: The last brightness level is stored to be invoked the first time you press The lighting to 100% is easily callable with 2 short presses on the button.
Built-in electronic protection in case of short circuit on the load, with automatic recovery after the fault is corrected. Increases the useful life of the light bulbs and the buttons, thanks to the Soft start. It also works with buttons with indicator light (max. 20) by adding a single accessory BV40 (cod. 5454071).
Features:
- Voltage 230V ~ (+10% - 15%) - 50Hz
- Power min. 5VA max. 500VA (300VA in boxes watertight)
- Max current 1.3 A / 2.2 A boxes watertight: 1-3 /300VA other boxes: 2.2 /500VA
FUNCTIONAL CHARACTERISTICS:
- The principle of change through disruption at the beginning or at the end of the phase by means of automatic recognition of the load type.
- The module has built-in MTV500E, it is 100% waterproof for external installations.
- Limitation of the inrush current through the pre-heating of the filament
- Built-in electronic protection in case of short circuit on the load, with automatic recovery after the fault is corrected.
- Electronic protection against overheating.
- Double thermal protection with the interruption of the power.
- Coil digital protected in case of long actuation of the button.
- Possibility of pilot 12 or 48VAC or DC with the addition of the accessory ADBT.
- Immunity to mains disturbances up to 1.5 kV.
