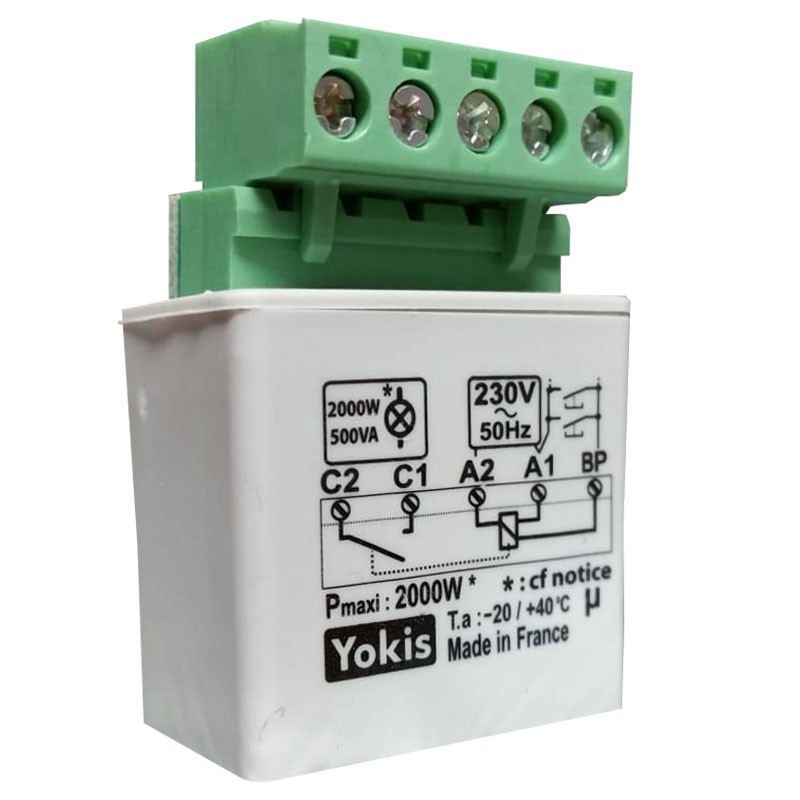

Yokis CVI34E 5454806 Converter for permanent rolling shutter contact
UTD 5454806
3760054548060
Urmet Yokis converter, for permanent contact for rolling shutter modules, with the following features:
- Mains voltage: 230V~ +10% -15% - 50Hz
- Output contact: 1A - 250VAC; max. 250VA
- Module consumption: < 1W
- Sound level: < 60dB at 20cm
- Operating temperature: -20°C to +60°C
- Relative humidity: 0 to 99%.
- Dimensions: 48 x 32 x 20 mm
Yokis CVI34E 5454806 Converter for permanent rolling shutter contact
€53.57
Tax included
€53.57
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
Pay in installments with Klarna
This module allows you to control one or more shutters (or awnings) by means of the contact of a time programmer, twilight sensor or anemometer. The module generates 3 pulses when the contact closes and 4 pulses when it opens.
The pulses will control the MVR500E and MVR500ER shutter modules on opening and closing respectively.
Additional Information: If the contact of the programmer is normally closed (NC) instead of normally open (NO), the generated pulse trains must be inverted.
There are no reviews
