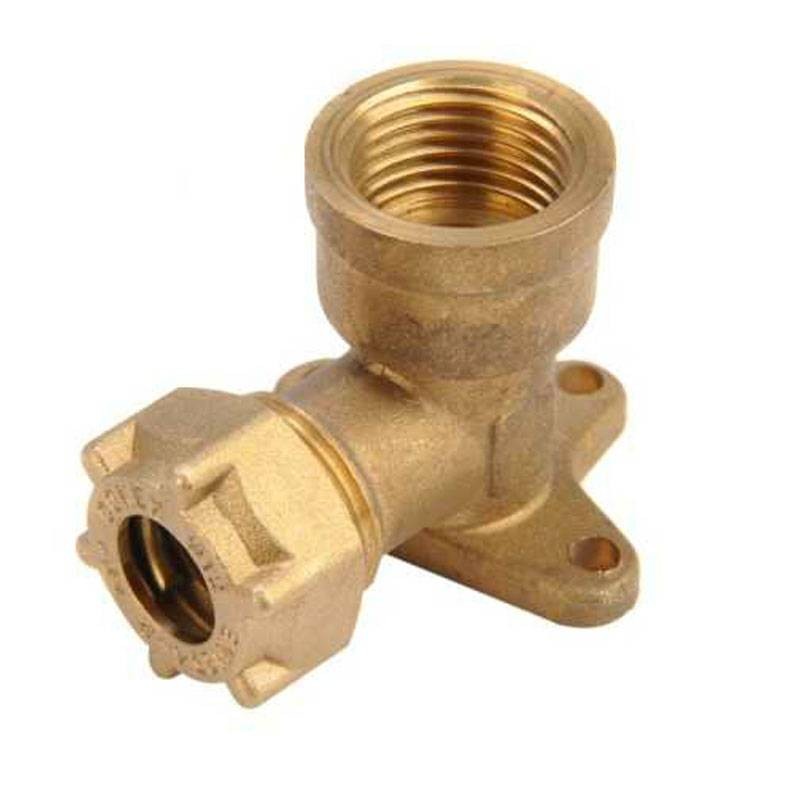

IBP 90 degree elbow fitting F/F D 16 mm x 1/2 with flange IG403L01604000

Ibp Banninger
Ibp Banninger
IBP IG403L01604000 5052740017805

IBP Banninger Conex O-Ring threaded elbow fitting for water and gas with 3-hole flange with the following features:



  • Connection: Female/Threaded Female
  • Diameter: 16 mm x 1/2
  • Opening: 90 degrees
  • O-Ring seal
  • Material: Brass

Request info about this product

IBP 90 degree elbow fitting F/F D 16 mm x 1/2 with flange IG403L01604000

€6.67 Tax included
€6.67

IBP 90 degree elbow fitting F/F D 16 mm x 1/2 with flange IG403L01604000

€6.67
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 56
logo priority: 20
Altre disponibilità dal produttore
qty

IBP 90 degree elbow fitting F/F D 16 mm x 1/2 with flange IG403L01604000

€6.67

Calculate shipping cost
Buy it within and receive it from Friday, 7 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Tapered threads according to EN 10226-1
  • Metal seal on the thread: anaerobic sealants or Teflon are recommended
  • Avoid applying excessive tightening torque during installation
  • Mandatory internal reinforcement bushing in conjunction with annealed copper tubing (R220)
  • Fitting material Brass CW617N-DW
  • Fittings reference standard EN 1254-2, EN 1254-4
  • O-Ring material EPDM black according to EN681-1 for water, HNBR yellow according to EN549 for gas
  • Threaded ends according to EN 10226-1
  • Compatible piping: Copper according to EN 1057, Stainless Steel according to EN 10312, Carbon Steel according to EN 10305-3

There are no reviews

Data sheet

Diameter:
16mm
Type:
Fittings
Connection:
F/F
Model:
90 Degrees
Elbow
Hoses:
1/2
Material:
Brass
